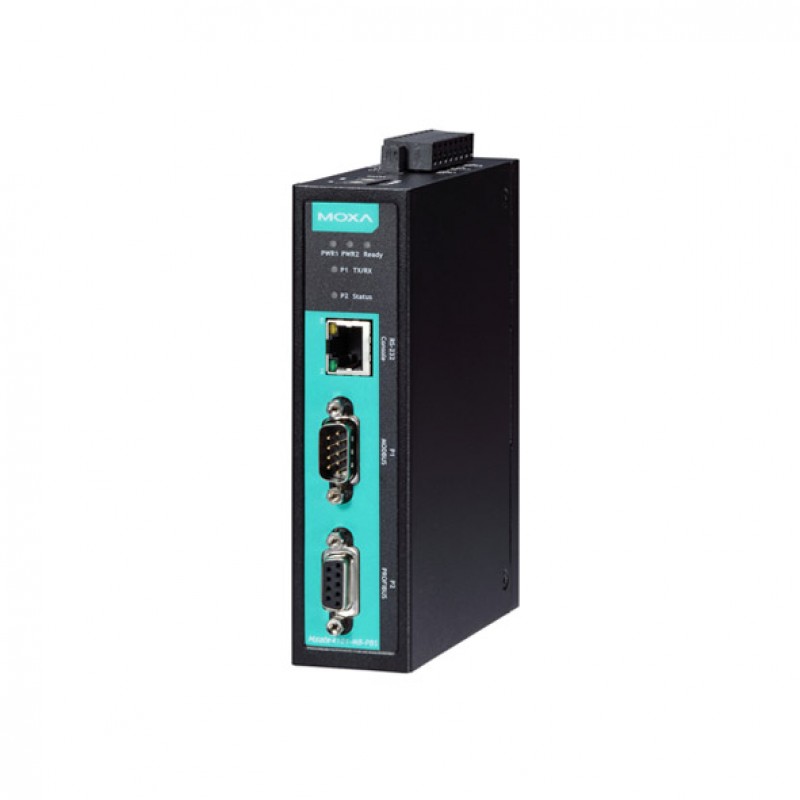

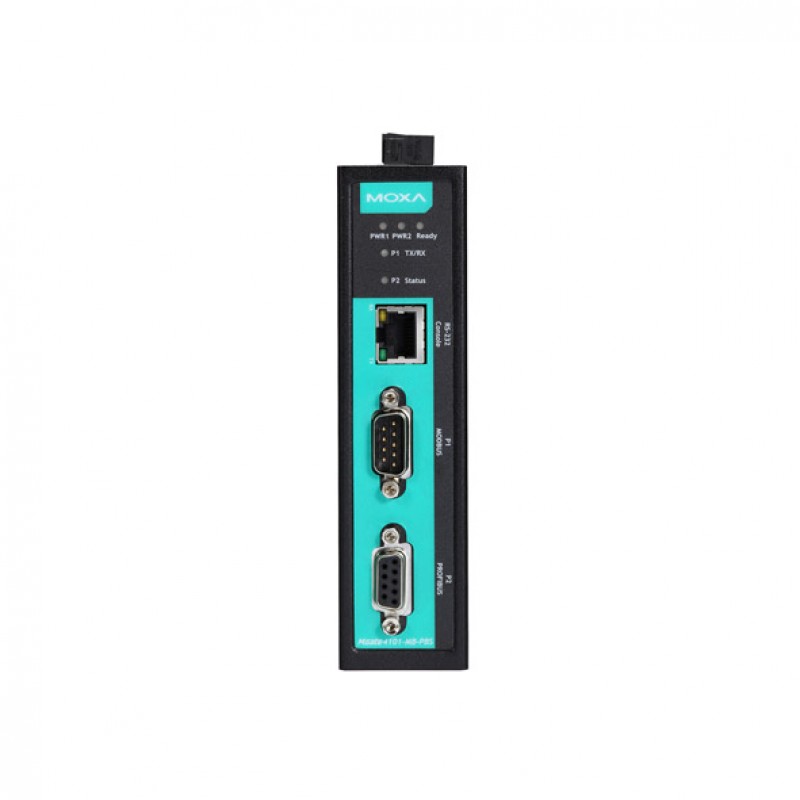

MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway
- Converts Modbus RTU/ASCII-to-PROFIBUS slave
- 1 x RS-232/422/485 Serial port (DB9 female connector)
- 1 x PROFIBUS port (DB9 female connector)
- 2 KV Isolation protection for PROFIBUS port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- 0 to 60°C operating temperature
.png)
Description
The MGate 4101-MB-PBS gateway provides a communication
portal between PROFIBUS PLCs (e.g., Siemens S7-400 and S7-300 PLCs) and Modbus
devices. With the QuickLink feature, I/O mapping can be accomplished within a
matter of minutes. All models are protected with a rugged metallic casing, are
DIN-rail mountable, and offer optional built-in optical isolation.
QuickLink and Windows Utilities for Easy Setup and Traffic Monitoring The QuickLink Windows utility uses a serial console port to connect to the MGate 4101-MB-PBS and makes configuration and operation as easy as possible. QuickLink can finish the configuration in just a few minutes by passively detecting Modbus requests with the AutoLearning function, and performing error-free I/O mapping with the AutoMapping feature. QuickLink drastically reduces Modbus-to-PROFIBUS integration time when compared to conventional I/O mapping, which can easily require days to complete. Additionally, embedded monitoring tools can maintain logs of Modbus communication packets and assist in troubleshooting.
You can also find the MGate 4101I-MB-PBS-T, MGate 4101-MB-PBS-T, and MGate 4101I-MB-PBS models in the Industrial Ethernet Gateways.
Experience the convenient way to purchase the MOXA MGate 4101-MB-PBS Industrial Ethernet Gateway in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | : 1 x PROFIBUS port with 2 KV isolation (DB9 female connector) |
| Protocols | Serial: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP-V0 Slave; PROFIBUS: PROFIBUS DP |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Connectors | DB9 male |
| Serial Standards | RS-232/422/485 |
| Isolation | |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DTR/DSR, RTS/CTS |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | Serial Console, Windows Utility, MGate Manager |
| MTBF | 1,537,948 hrs |
| Memory | |
| microSD Slot | |
| Power Requirements | |
| Input Current | 275 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| Security | |
| Security | |
| Authentication | |
| Encryption | |
| Physical Characteristics | |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, UL 60950-1, IEC 62368-1, UL 62368-1; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Weight | 500 g (1.10 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
