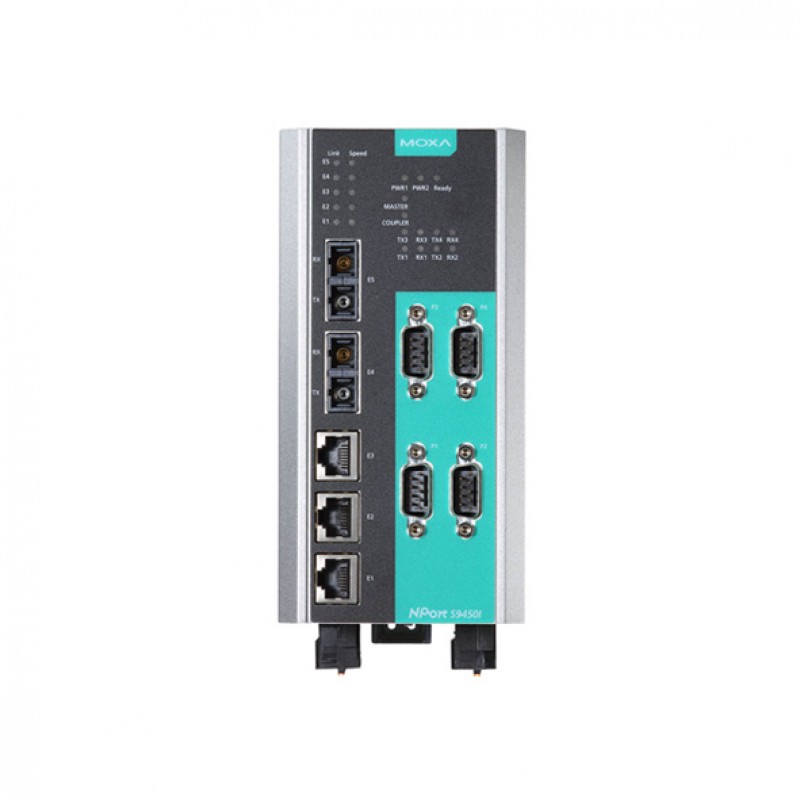

MOXA NPort S9450I-2M-SC-HV-T Serial to Ethernet Device Server
- Serial device server with managed Ethernet switch
- 3 x 10/100Mbps T(x) ports and 4 x RS-232/422/485 Serial ports
- 2 x 100M multi-mode fiber ports with SC connectors
- 88 to 300 VDC or 85 to 264 VAC power inputs
- Metal body
- -40 to 85°C operating temperature
- 4kv Surge protection
Description
The NPort S9450I Series 4-port RS-232/422/485 device
servers, which come with a built-in full-function managed Ethernet switch, are
designed specifically for the harsh environmental conditions found in
electrical substations. With both fiber and wired Ethernet ports supported, the
combination of device server and Ethernet switch gives users the ability to
easily install, manage, and maintain the NPort S9450I itself, as well as
attached serial devices.
Electromagnetic Compatibility for Harsh Substation
Environments
The NPort S9450I Series supports a high level of surge
protection to prevent damage from the types of power surges and EMI one finds
in electrical substations and industrial automation applications. Combined with
a -40 to 85°C operating temperature range and galvanized steel housing, the
NPort S9450I is suitable for a wide range of industrial environments.
Another plus is the NPort S9450I’s dual power supplies,
which provide both redundancy and a wide range of voltage inputs. The
WV models accept a power 24/48 VDC power input (ranging from 18 to 72 VDC), and
the HV models accept a power input of 88 to 300 VDC and 85 to 264 VAC.
You can also find the NPort S9450I-2M-SC-WV-T and NPort S9450I-2M-ST-HV-T models in the Serial-to-Ethernet Converters.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA NPort S9450I-2M-SC-HV-T Serial to Ethernet Device Server through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 3 Ports |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 4 Ports |
| Serial port specifications | |
| Serial connection type | DB9 male |
| Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Protection against electrostatic discharge | - |
| Electrical isolation | 2 kV |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console |
| MTBF | 347,436 hrs |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC) |
| Security | |
| Security | HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH |
| Encryption | |
| Ethernet Interface | |
| Network Protocols | Modbus TCP Server (Slave), DNP3 TCP Outstation |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | - |
| Alarm feature | : 2, Resistive load: 1 A @ 24 VDC |
| Physical Characteristics | |
| Dimensions | 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in) |
| Safety | EN 61010-2-201, UL 61010-2-201 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 |
| Marine | |
| Medical | |
| LAN port Protection against magnetic fields | 1.5 kV (built-in) |
| Housing | Metal |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Altitude | - |
| Operation Humidity | 5 to 95% (non-condensing) |
