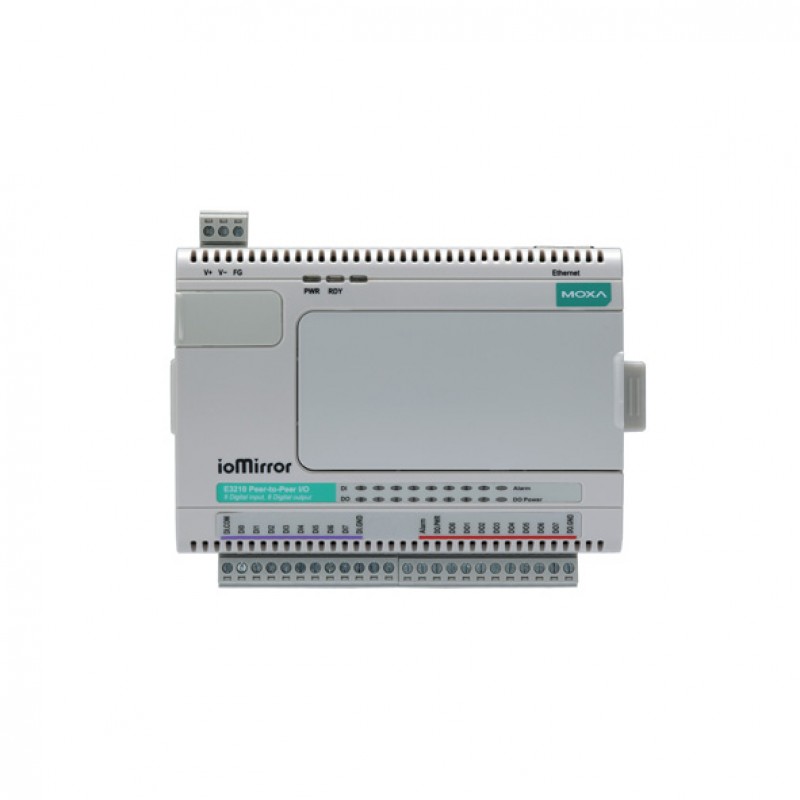

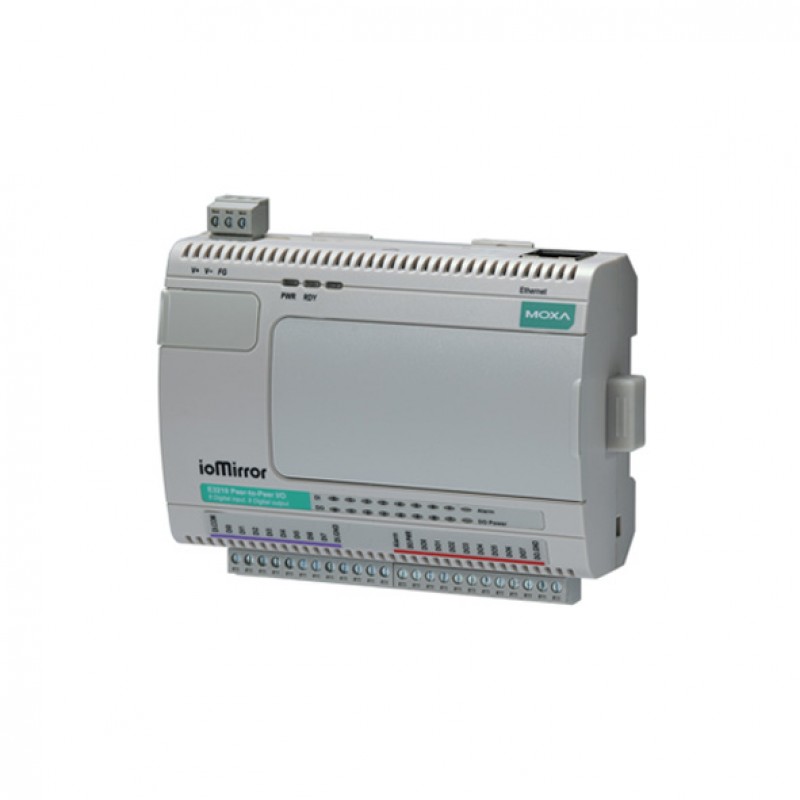

MOXA ioMirror E3210 Ethernet Peer-to-Peer I/O
- 8 x Digital Input Channels, 8 x Digital Output Channels
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- High-speed peer-to-peer I/O within 20 ms
- Plastic body design
- Supports Modbus TCP for remote monitoring
- 12 to 48 VDC input power range
- DIN-rail and Wall mounting
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: ioMirror E3210
Description
The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.
Experience the convenient way to purchase the MOXA ioMirror E3210 Ethernet Peer-to-Peer I/O and all the MOXA Smart Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Digital Input and Output | : 8 x Digital Input Channels, 8 x Digital Output Channels |
| Adjustable digital input and output | |
| Analog Input and Output | |
| Relays | |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | : 1 x 10/100BaseT(X) Port (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial port | |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | - |
| Serial Standards | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| Security | |
| Security Functions | - |
| Standards and protocols | |
| Protocols | Ethernet: Modbus TCP Server (Slave) |
| General | |
| Compatible Softwares | ioEventLog |
| Management | BOOTP, DHCP Client, HTTP, TCP/IP, UDP |
| MTBF | 231,020 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 136 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, Ready |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
| Standards and Certifications | Freefall: IEC 60068-2-32; EMI: EN 61000-6-4, FCC Part 15B Class A; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Telcordia SR332 |
| Installation | Wall mounting, DIN-rail mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 205 g (0.45 lb) |
| Altitude | 2000 m |
