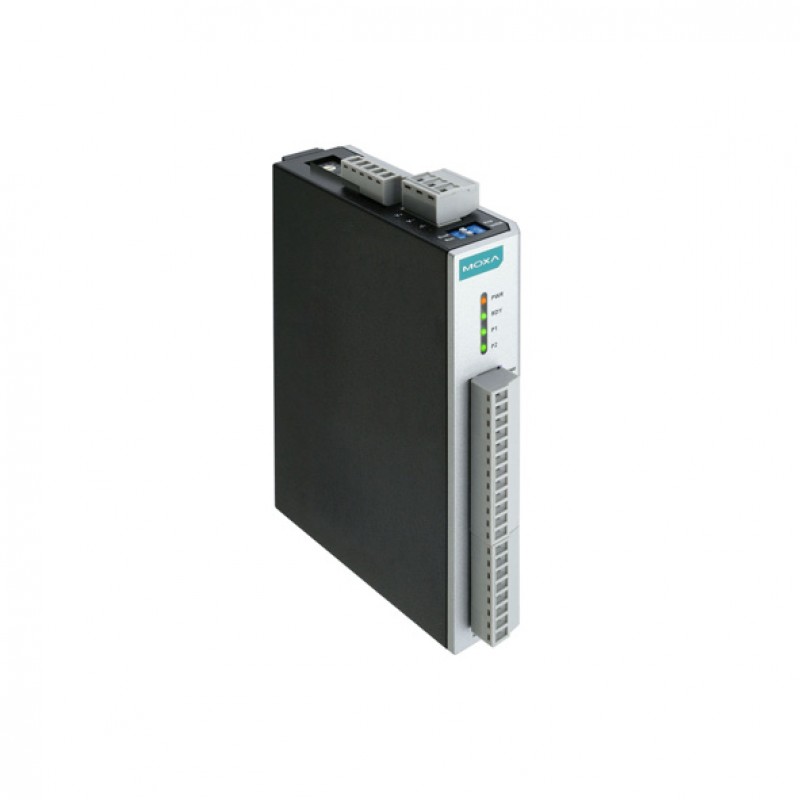

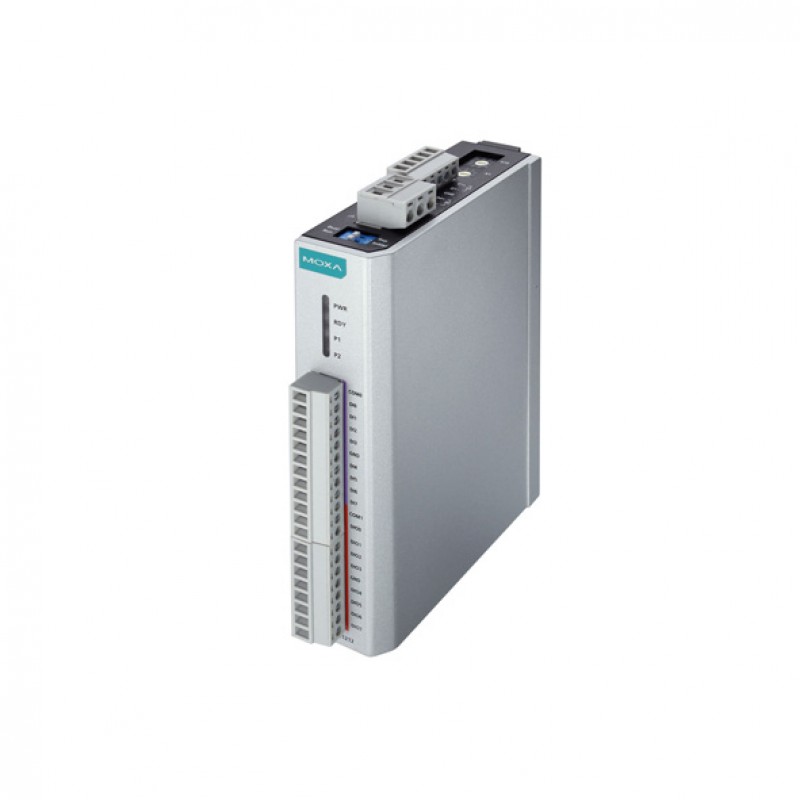

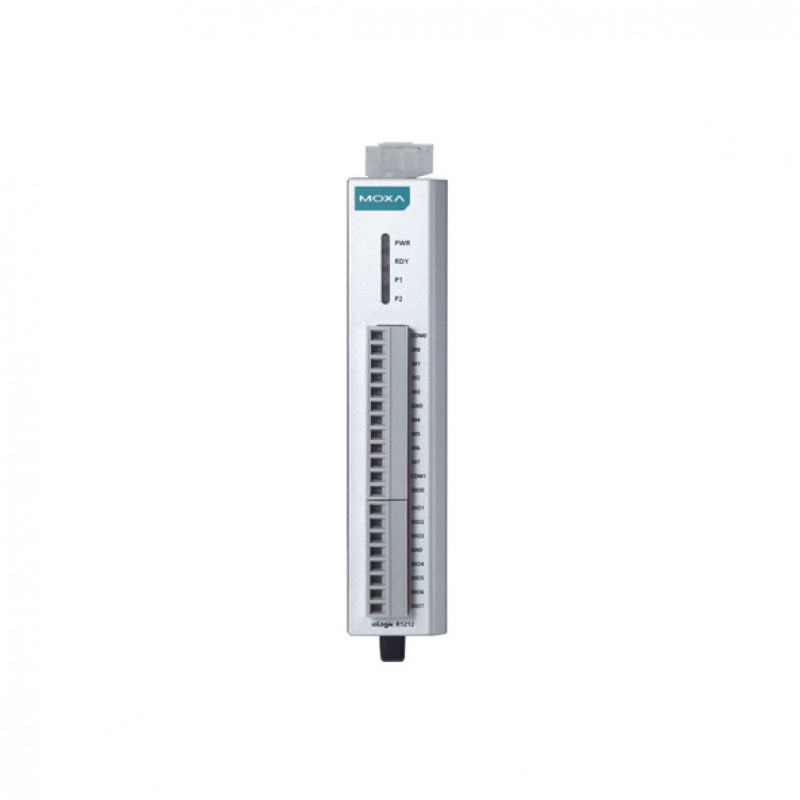

MOXA ioLogik R1210 Serial Remote I/O
- 16 x Digital Input Channels
2 x RS-485 Serial ports (Terminal block connector)
- Plastic body design
- 12 to 48 VDC input power range
- DIN-rail and Wall mounting
- -10 to 75°C operating temperature
- Brand: MOXA
- Product Code: ioLogik R1210
Description
The ioLogik R1200 Series RS-485 serial remote I/O devices
are perfect for establishing a cost-effective, dependable, and easy-to-maintain
remote process control I/O system. Remote serial I/O products offer process
engineers the benefit of simple wiring, as they only require two wires to
communicate with the controller and other RS-485 devices while adopting the
EIA/TIA RS-485 communication protocol to transmit and receive data at high
speed over long distances. In addition to communication configuration by software
or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the
nightmare of extensive labor associated with the setup and maintenance of data
acquisition and automation systems. Moxa also offers different I/O
combinations, which provide greater flexibility and are compatible with many
other applications.
You can also find the ioLogik R1240, ioLogik R1214, and ioLogik R1212-T models in the Remote I/O.
Inquire about the MOXA ioLogik R1210 Serial Remote I/O, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Digital Input and Output | : 16 x Digital Input Channels |
| Adjustable digital input and output | |
| Analog Input and Output | |
| Relays | |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | |
| Magnetic Isolation Protection | |
| Serial port | : 2 Port |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Serial Communication Parameters | Baudrate: 1200 bps to 921.6 kbps; Parity: None, Even, Odd; Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms; Stop Bits: 1, 2; Surge: 1 kV; ESD: 15 kV; Data Bits: 8 |
| Serial Signals | RS-485-2w: Data+, Data-, GND |
| Security | |
| Security Functions | - |
| Standards and protocols | |
| Protocols | Serial: Modbus RTU Server (slave) |
| General | |
| Compatible Softwares | ioSearch, MX-AOPC UA Server |
| Management | - |
| MTBF | 1,239,293 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 154 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, RDY, P1, P2 |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -10 to 75°C (14 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 200 g (0.44 lb) |
| Altitude | 2000 m |
