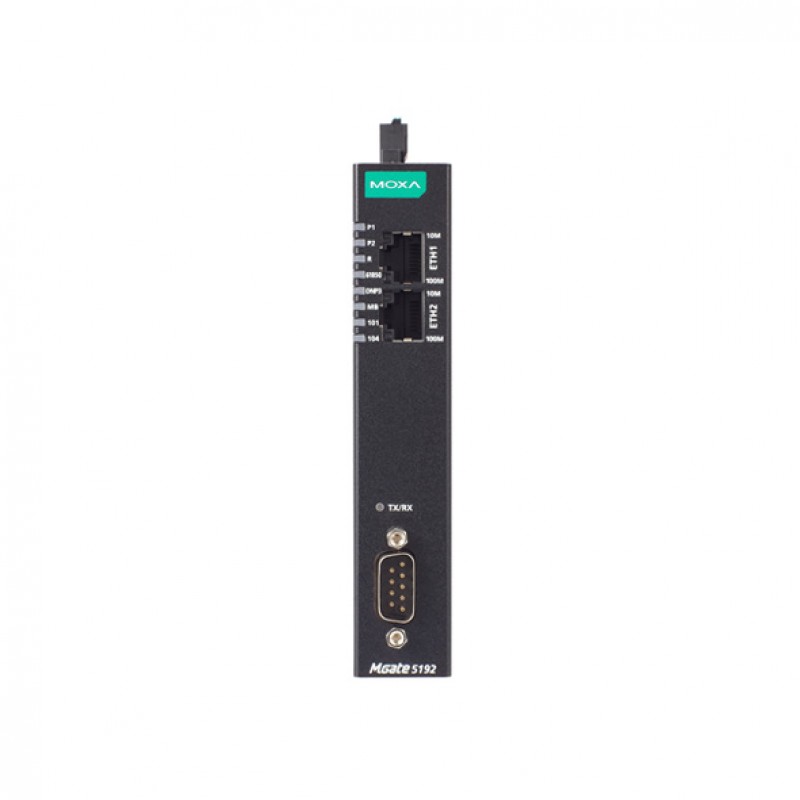

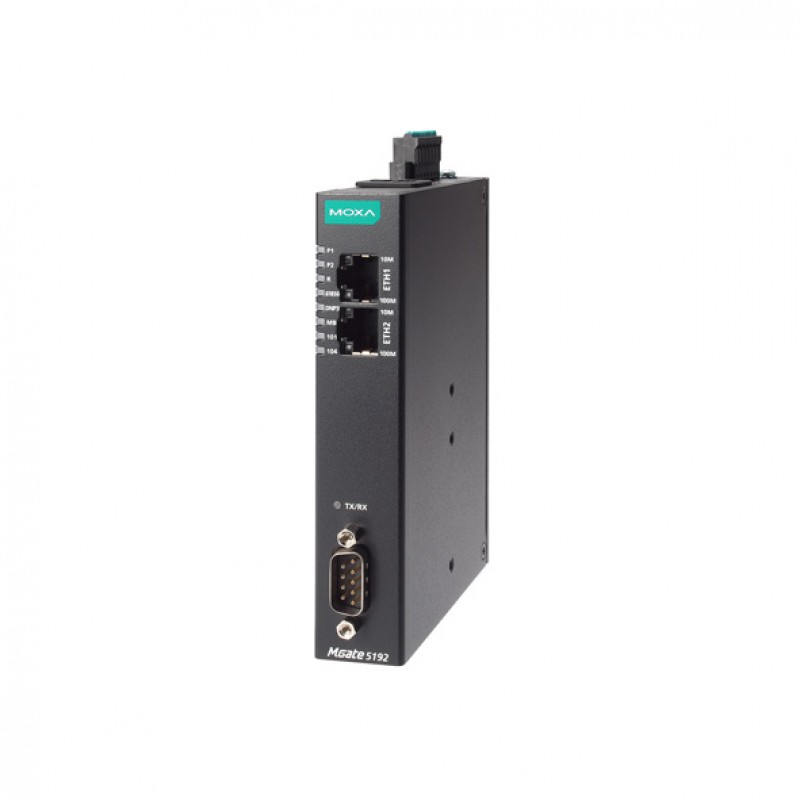

MOXA MGate 5192-T Industrial Ethernet Gateway
- Converts IEC 61850 to DNP3/IEC 101/IEC 104/Modbus
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- 2 KV Isolation protection for serial port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- -40 to 75 operating temperature range
.png)
Description
The MGate 5192 is an industrial protocol gateway for
converting IEC 61850 MMS to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC
60870-5- 101, or IEC 60870-5-104 communications. To integrate existing IEC
61850 devices, such as IEDs or relays, into a Modbus, DNP3, IEC 101, or IEC 104
network, use the MGate 5192 as an IEC 61850 MMS client to collect and exchange
data with Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101, or IEC
60870-5-104 SCADA/devices. All models are protected by a rugged and compact
metal housing, are DIN-rail mountable, and offer built-in serial isolation. The
rugged design is suitable for industrial applications such as power substations
and renewable energy-related applications.
Easy Configuration
The MGate 5192 gateways are provided with a web console to
make configuration easy without having to install an extra utility. In
addition, HTTPS encryption ensures higher network security. In
most data-acquisition applications, the configuration of devices with Modbus
commands can be time-consuming and increase costs. The MGate 5192 gateways
provide offline configuration via a CSV file to help complete the Modbus
settings quickly. The MGate gateways provide software-configurable pull high/low
and termination resistor settings for RS-485 2-wire to reduce efforts by
eliminating the need to open the chassis.
You can also find the MGate 5111-T, MGate 5435, and MGate 5122 models in the Industrial Ethernet Gateways.
Explore our extensive range of industrial automation
products such as MOXA MGate 5192-T Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | |
| Protocols | Ethernet: IEC 61850 MMS Client, Modbus TCP Server, IEC 60870-5-104 Server, DNP3 TCP/UDP Outstation; Serial: Modbus RTU/ASCII Server, IEC 60870-5-101 Server, DNP3 Serial Outstation |
| Serial port specifications | |
| Number of Ports | 1 Port |
| Console Port | - |
| Connectors | DB9 Male |
| Serial Standards | RS-232/422/485 |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| Baudrate | 300 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP |
| MTBF | 1,240,821 hrs |
| Memory | |
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 455 mA (max) |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in) |
| Standards and Certifications | Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 100 A/m; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Power Substation: IEEE 1613, IEC 61850-3; International Approval: UKCA, KC; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Weight | 294 g (0.65 lb) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | - |
