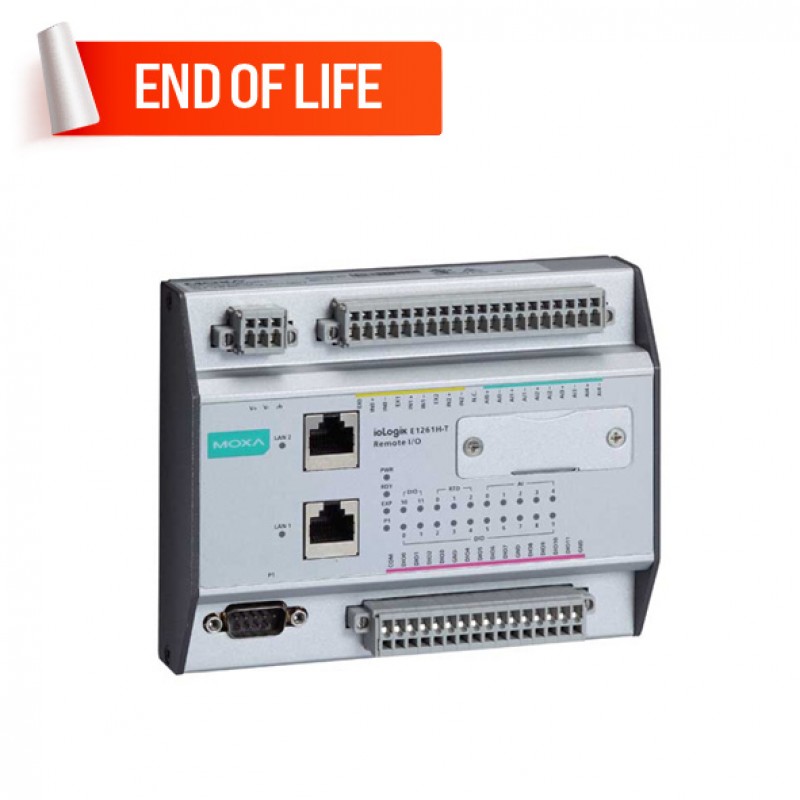

MOXA ioLogik E1261H-T Ethernet Remote I/O
- 5 x Analog Input Channels, 12 x Configurable DIO Channels
- 3 x RTD Channels (Spring-type Euroblock terminal connector)
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (Terminal block connector)
- Aluminum body design
- 12 to 48 VDC input power range
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature range
Description
Installation of remote Ethernet I/O in offshore environments is a real challenge. It is critical to find devices properly designed for protected, safe use in these environments. Moxa’s IEC 60945-certified ioLogik E1200H Series is ideal for these kinds of demanding industrial applications. Packaged in a compact metal housing, this rugged hardware supports operating temperatures ranging from -40 to 75°C, meeting the stringent demands of IEC 60945 needed for harsh offshore applications.
Daisy-Chained Ethernet I/O Connection
This industrial Ethernet remote I/O comes with two switched
Ethernet ports to allow for the free flow of information downstream to another local
Ethernet device, or upstream to a control server via expandable daisy-chained
Ethernet I/O arrays. Applications such as factory automation, security and
surveillance systems, and tunneled connections can make use of daisy-chained
Ethernet for building multidrop I/O networks over standard Ethernet cables.
Many industrial automation users are familiar with multidrop as the
configuration most typically used in fieldbus solutions.
The daisy-chain capabilities supported by ioLogik Ethernet
remote I/O units not only increase the expandability and installation
possibilities for your remote I/O applications but also lower overall costs by
reducing the need for separate Ethernet switches. Daisy-chaining devices in
this way will also reduce overall labor and cabling expenses.
End of Life Product - Replacement Available
Please note that the ioLogik E1200H Series has been phased out and
replaced by the ioThinx 4510 Series.
Easy World Automation offers the
easiest way to buy the MOXA ioLogik E1261H-T Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Digital Input and Output | |
| Adjustable digital input and output | : 12 x Channels |
| Analog Input and Output | : 5 x Analog Input Channels |
| Relays | |
| Thermal sensor input (RTD) | : 3 x Channels |
| Thermocouple input | |
| LAN | : 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial port | : 1 Port |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-232/422/485 |
| Serial Communication Parameters | Baudrate: 300 bps to 115.2 kbps; Data Bits: 8; Flow Control: None; Stop Bits: 1 |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND |
| Security | |
| Security Functions | - |
| Standards and protocols | |
| Protocols | Ethernet: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library; Serial: Modbus RTU Server (slave) |
| General | |
| Compatible Softwares | MX-AOPC UA Server, ioSearch utility, MXIO library |
| Management | BOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP |
| MTBF | 296,094 hrs |
| Power Requirements | |
| Power Connector | Spring-type Euroblock terminal |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 235 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, RDY, EXP, P1, LAN 1, LAN2, AI channels, DIO channels, RTD channels |
| Physical Characteristics | |
| Housing | Aluminum |
| Dimensions | 140 x 113 x 36.3 mm (5.51 x 4.45 x 1.43 in) |
| Standards and Certifications | EMC EN 55032/24, EN 61000-6-2/-6-4; EMI CISPR 32, FCC Part 15B Class A; EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing IEC 60068-2-1, IEC 60945, IEC 60068-2-2, IEC 60945; Safety UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 825 g (1.82 lb) |
| Altitude | 2000 m |
