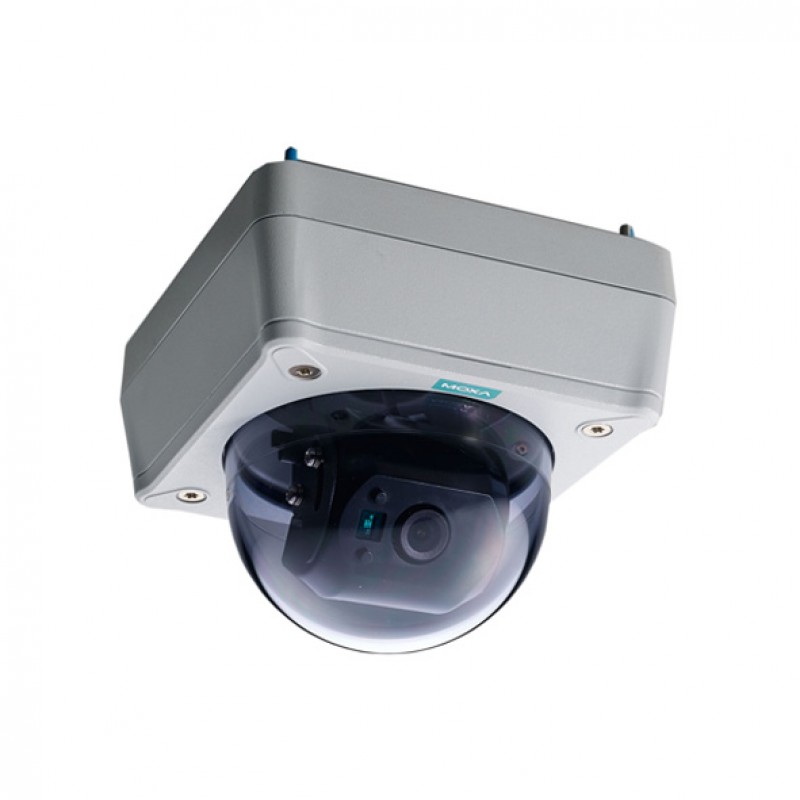

MOXA VPort P16-1MP-M12-CAM80 Onboard IP Camera
- Lens: 8.0 mm
- 1 x PoE Port (10/100BaseT(X), M12 connector)
- IP66-rated Metal housing with PC dome cover
- Input Power Source: PoE (IEEE 802.3af)
- Panel mount installation design
- -25 to 55°C operating temperature
.png)
Description
The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155,1 covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.
You can also find the VPort P16-1MP-M12-IR-CAM80, VPort P16-1MP-M12-IR-CAM36-CT-T, and VPort P16-1MP-M12-CAM36-T models in the IP Cameras.
Enjoy the ease of online
inquiries for the MOXA VPort P16-1MP-M12-CAM80 Onboard IP Camera. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Camera | |
|---|---|
| Sensor | 1/2.7-in HD progressive scan CMOS |
| Lens | f=8.0mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22° |
| Camera Angle | Pan 350°, Tilt 80° (controlled manually) |
| ICR Control (for day & night) | Auto |
| Synchronization | Internal |
| White Balance | ATW/AWC |
| DNR | Built-in 2D/3D DNR |
| WDR | 110 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, and 180° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X, 32X, 64X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| Interface | |
| 10/100BaseT(X) Ports | |
| PoE Ports | : 1 x 10/100BaseT(X), M12 D-coded 4-pin female connector |
| Digital Input/Output Channels | |
| Relay Channels | |
| Audio | |
| Audio Inputs | |
| Audio Format | |
| Audio Outputs | |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 3 independent H.264 or MJPEG video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 0.35 A @ 48 VDC |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 12 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User level password protection |
| Filtering | IP address |
| Encryption | HTTPS |
| Authentication | |
| General | |
| MTBF | 1,598,728 hrs |
| microSD Slot | |
| Physical Characteristics | |
| Housing | IP66 rain and dust protection, Metal housing, PC dome cover, IK10 vandal-resistant protection |
| Dimensions | 125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in) |
| Weight | 810 g (1.79 lb) |
| Installation | Panel mounting |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Railway Fire Protection: EN 45545-2; Safety: UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Railway: EN 50155 (complies with a portion of EN 50155 specifications); Ingress Protection: IEC 60529, IP66; Salt Spray Test: ASTM-B117; Vandal Resistance: EN 62262, IK10; Telcordia SR332 |
| Altitude | 2000 m |
| Minimum Viewing System Requirements | |
| Memory Size | 1 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0c or above |
| Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers |
| Standard | ONVIF ProfileS |
