Description

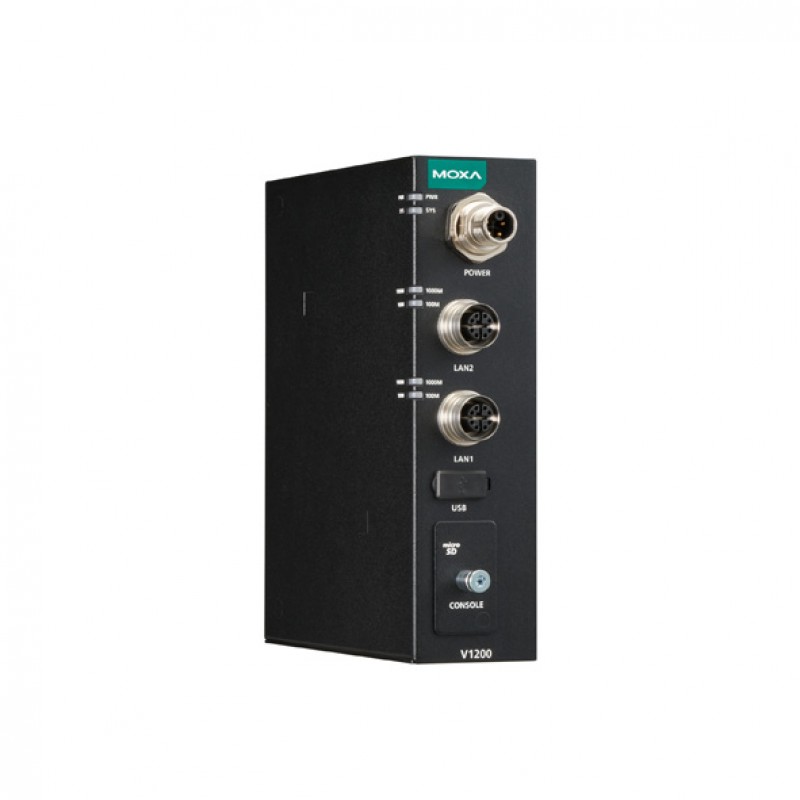

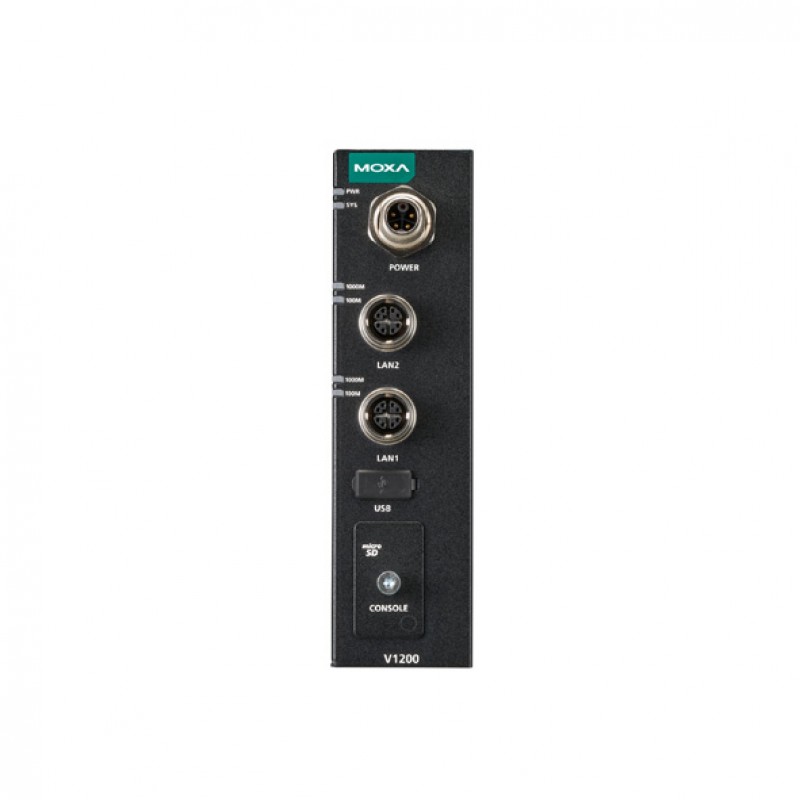

The V1200 computing platform is designed for railway TCMS data acquisition and train-to-ground applications. The computer comes with dual
M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules, and dual
RS-232/422/485 serial ports. The slim, compact design with multiple mounting
options reduces installation space and provides flexibility for mounting in
various cabinets or onboard locations.
The V1200 comes with Moxa Industrial Linux (MIL) and
long-term Linux support and vulnerability patching. A web-based interface is
provided for easy configuration of Ethernet and wireless network settings
without the need for programming.
The V1200 wireless-enabled models are thoroughly tested in a
testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and
OT4 operating temperature (-40 to 70°C with cellular and Wi-Fi modules
enabled) requirements, making them suitable for wide-temperature applications.
You can also find the V2201-E1-T and V2403C-KL1-T models in the Wireless Computers.
Enjoy the ease of online inquiries for the MOXA V1202-CT-T Wide Temperature Computer. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Arm Cortex-A53 quad-core 1.6 GHz |
| Supported OS | Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL |
| OS (pre-installed) | - |
| System Memory | 4 GB LPDDR4 |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | - |
| Serial Ports | - |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | microSD socket x 1 |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, System x 1, SIM card indicator x 1 |
| LAN | 2 ports, 1 per port (10/100/1000 Mbps) |
| Serial | 2 LEDs per port (Tx and Rx) |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC |
| Input Current | 0.4 A @ 24 VDC, 0.1A @ 110 VDC |
| Power Consumption | 7.4W @ 95%CPU loading |
| General | |
| Alert Tools | External WDT (watchdog timer) |
| Automatic Reboot Trigger | External RTC (real-time clock) |
| MTBF | 2,755,789 hrs |
| Physical Characteristics | |
| Dimensions | 150 x 120 x 41 mm |
| Housing | Metal, SECC |
| Operating temperature | With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF; Cellular Standards: EN 301 908-1 (WCDMA/LTE), EN 301 489-1/-19 (GPS), EN 301 489-1/-52 (WCDMA/LTE), EN 303 413 (GPS); WLAN Standards: EN 303 687 (6 GHz), EN 301 893 (5 GHz), EN 301 489-1-17, EN 300 328 (2.4 GHz); Radio Frequency: FCC, RCM, CE (RED), UKCA, EN 62311; International Approval: FCC, CE, UKCA, RCM; Safety: IEC 62368-1, UL 62368-1; Railway Fire Protection: EN 45545-2; Railway: EN 50155: 2021, EN 50121-4; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP40; Telcordia Standard SR332 Issue 4 |
| Weight | 665g (without mount ears) |
| Mounting | Wall mounting (standard), Desk mounting (with optional kit), DIN-rail mounting (with optional kit) |
