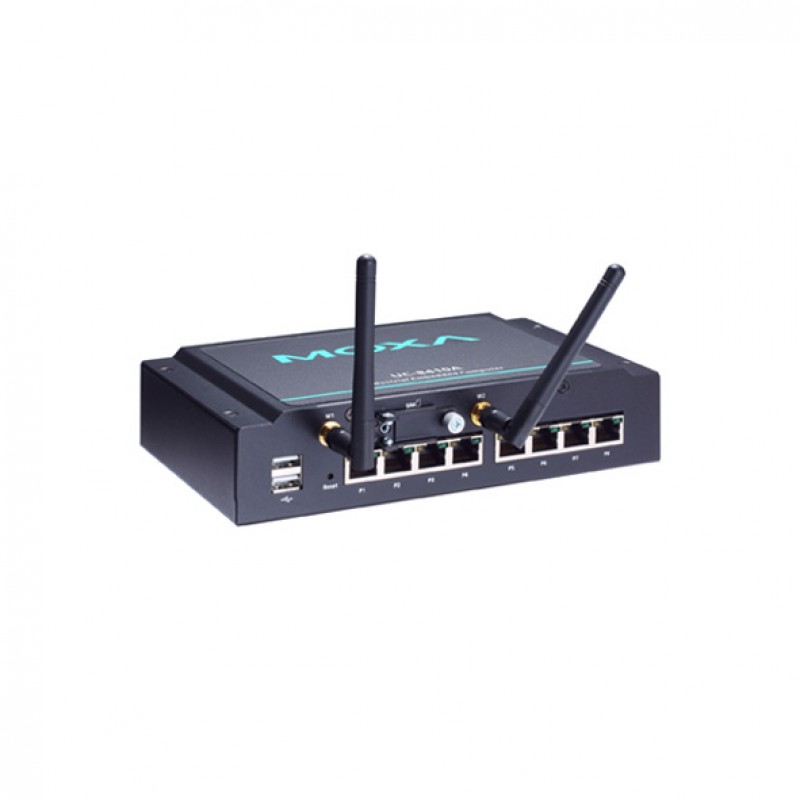

MOXA UC-8410A-LX Industrial Embedded Computer
- CPU Armv7 Cortex-A7 dual-core 1 GHz
- Pre-installed Linux Debian 8 kernel 4.1
- 8 x RS-232/422/485 Serial ports
- 3 x 10/100/1000 Mbps Ethernet ports
- 1 x mPCIe slot for Wi-Fi module
- Wallmount installation design
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- -10 to 60°C operating temperature
.png)
Description
The UC-8410A Series embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts.
The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 8 GB eMMC card and 1 GB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage. The UC-8410A computers come with a variety of communication interfaces, including serial ports, Ethernet ports, wireless communication slots, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications.
The UC-8410A Series comes with Linux Debian 8 preinstalled to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications but at minimal cost and effort. In addition to the standard model of the UC-8410A, a -40 to 75°C wide-temperature model is available for harsh industrial environments.
You can also find the UC-8410A-NW-LX, UC-8410A-NW-T-LX, and UC-8410A-T-LX models in the Wireless Computers.
Experience the convenient way to purchase the MOXA UC-8410A-LX Industrial Embedded Computer in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Computer | |
|---|---|
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| Supported OS | Linux Debian 8 (Linux kernel v4.1), 2022 EOL, Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL |
| OS (pre-installed) | Linux Debian 8 kernel v4.1 |
| System Memory | 1 GB DDR3 SDRAM |
| Graphics Controller | - |
| Storage Slot | SD slots x 1, mSATA slots x 1, internal mini-PCIe socket |
| Interface | |
| LAN | 3 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 8 x RS-232/422/485 ports, software selectable (RJ45) |
| USB | 2 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | 1 Slot |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, System Ready x 1, Storage x 1, Programmable x 10 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 1.57A @ 12 VAC max. |
| Power Consumption | 19 W (max.) |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | - |
| Physical Characteristics | |
| Dimensions | 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in) |
| Housing | Metal |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL/IEC 60950-1 & 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-64; Green Product: RoHS, CRoHS, WEEE; IP30; |
| Weight | 1kg |
| Mounting | Wall mounting (standard) |
