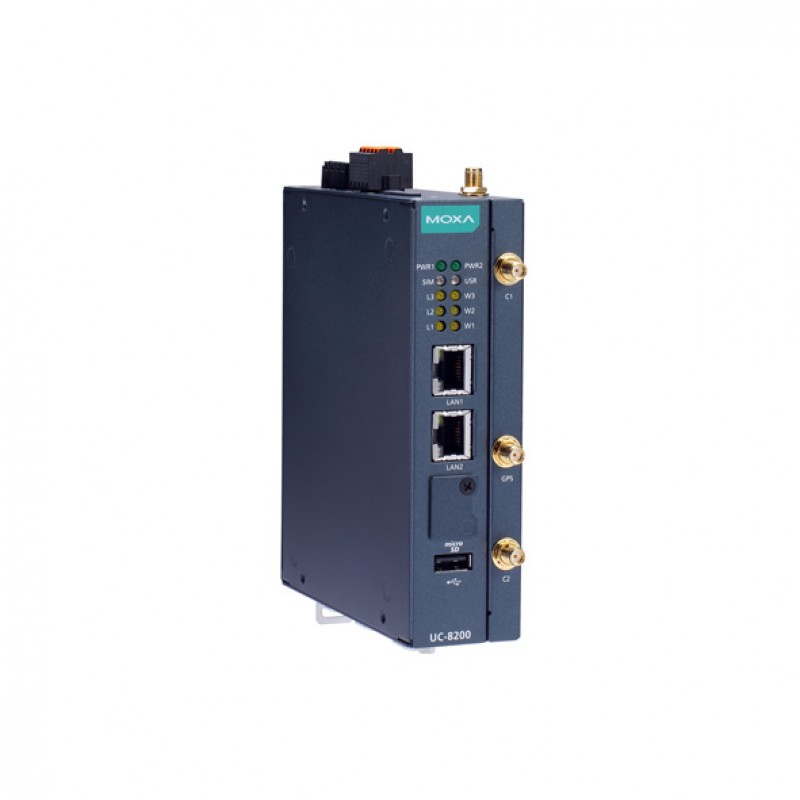

MOXA UC-8220-T-LX-AP-S Industrial Embedded Computer
- Armv7 Cortex-A7 dual-core 1 GHz
- Moxa Industrial Linux with 10-year superior long-term support
- 2 auto-sensing 10/100/1000 Mbps Ethernet ports
- Integrated LTE Cat. 4 modules with US/EU/APAC band support
- Dual-SIM slots
- 4 DI & 4 DO
- 1 CAN port supports CAN 2.0A/B
- microSD socket for storage expansion
- Programmable LEDs and a programmable button for easy installation and maintenance
- Brand: MOXA
- Product Code: UC-8220-T-LX-AP-S
Description
The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe sockets to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.
The UC-8200 is built around a Cortex-A7 dual-core processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.
Wide-temperature LTE-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
You can also find the UC-8210-T-LX, UC-8210-T-LX-S, and UC-8220-T-LX models in the Wide Temperature Computers.
Enjoy the ease of online
inquiries for the MOXA UC-8220-T-LX-AP-S Industrial Embedded Computer. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Console Port | 1 x 4-pin header to DB9 console port |
| LAN | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial Standards | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| ESD Protection | Contact: 4 kV; Air: 8 kV |
| Computer | |
| DRAM | 2 GB DDR3L |
| Flash | - |
| OS (pre-installed) | Moxa Industrial Linux (Debian 9, Kernel 4.4) |
| Digital Input | |
| Input Voltage | 12 to 48 VDC |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | - |
| Baudrate | - |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 2, Programmable x 1, SIM card indicator x 1 |
| LAN | - |
| Serial | - |
| Power Requirements | |
| Input Current | 1 A @ 12 VDC |
| Power Consumption | 12 W |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| MTBF | 528,574 hrs |
| Storage Expansion | microSD socket |
| CPU Support | Armv7 Cortex-A7 dual-core 1 GHz |
| Physical Characteristics | |
| Dimensions | 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in) |
| Housing | SECC/Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| Weight | 750 g (1.65 lb) |
| Anti-Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
| Safety | UL 62368-1, EN 62368-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
