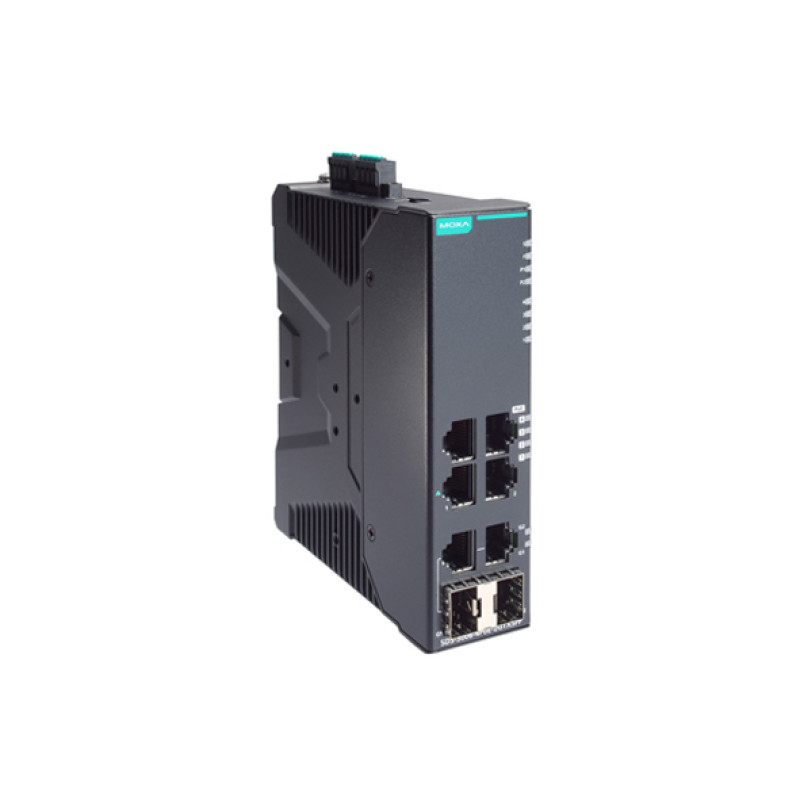

MOXA SDS-3006-4PoE-2GTXSFP-T Smart Ethernet Switch
- 4 x PoE Ports (10/100BaseT(X), RJ45 connector)
- 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- Compliant with IEEE 802.3af/at Standard
- 12 to 48 VDC Redundant dual power inputs
- IP40-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature range
.png)
Description
The SDS-3006 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.
The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3006 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA SDS-3006 Smart Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SDS-3006, SDS-3006-4PoE-2GTXSFP, and SDS-3006-2GTXSFP models in the DIN-Rail Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA SDS-3006-4PoE-2GTXSFP-T Smart Ethernet Switch. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 6 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | : 4 Ports (RJ45 connector, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection) |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.85 A max. 12-48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12-48 VDC |
| Operating Voltage | 9.6 to 57 VDC |
| Power Consumption | 10.38 W full loading without PDs’ consumption |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,339,356 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Smart Managed Switch |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs), IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN IEC 62368-1, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 779g (1.72 lbs) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, RSTP, STP, MRP |
| Protocols and management standards | Back Pressure Flow Control, DHCP Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, 802.1Q VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
