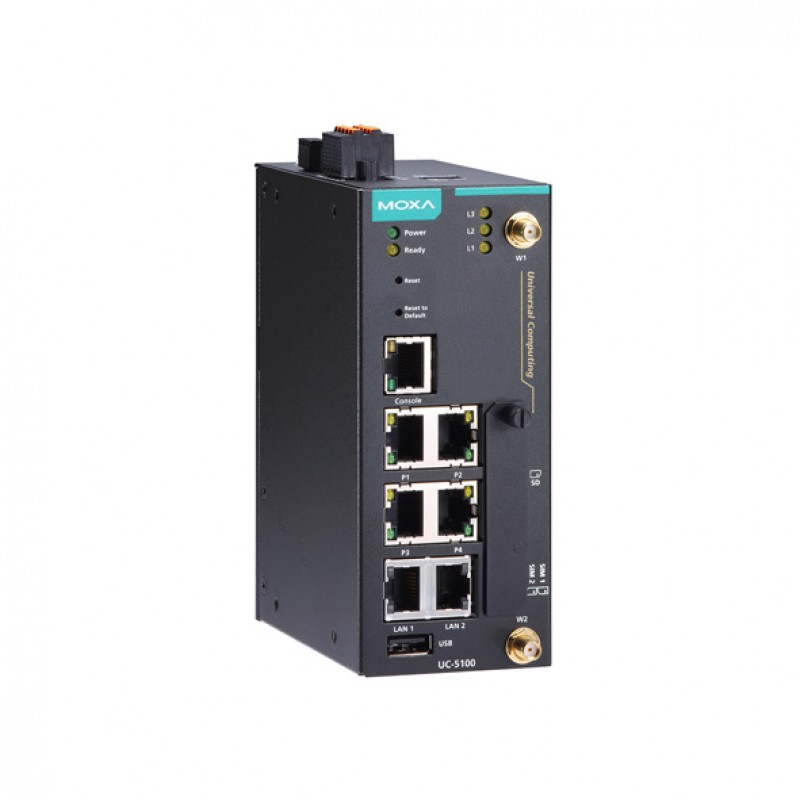

MOXA UC-5101-T-LX Industrial Embedded Computer
- 2 x 10/100Mbps Ethernet port
- 4 x RS-232/422/485 Serial port
- 1 x USB 2.0 hosts
- 512 MB DDR3 DRAM
- 2 x SIM Slots
- 4/4 x DI/DO
- Armv7 Cortex-A8 1 GHz CPU
- Linux Debian 9 kernel 4.4 (Moxa Industrial Linux) Pre-installed OS
- -40 to 85°C operating temperature
- Brand: MOXA
- Product Code: UC-5101-T-LX
Description
The UC-5100 Series embedded computers are designed for industrial automation applications. The computers feature 4 RS-232/422/485 full signal serial ports with adjustable pull-up/pull-down resistors, 2 CAN ports, 2 Ethernet ports, 4 digital input channels, 4 digital output channels, USB interface, and an SD slot in a compact, front-end access housing. To fulfill various industrial applications, the UC-5100 Series computing platform provides models with 2 CAN ports and a mini PCIe slot for wireless connections featuring a dual-SIM design for network redundancy.
The UC-5100’s vertical DIN-rail form factor makes it easy to install the computer in a small cabinet. This space-saving solution also facilitates easy wiring, making the UC-5100 a great choice as a front-end embedded controller for industrial applications. Furthermore, all models are equipped with Moxa Industrial Linux and come with 10-year long-term support as well as optimized software features.
You can also find the UC-5111-LX, UC-5102-T-LX, and UC-5102-LX models in the Wide Temperature Computers.
Experience the convenient way to purchase the MOXA UC-5101-T-LX Industrial Embedded Computer in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Console Port | RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1) |
| LAN | 2 auto-sensing 10/100 Mbps ports (RJ45) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Computer | |
| CPU | ARMv7 Cortex-A8 1000 MHz |
| DRAM | 512 MB DDR3 SDRAM |
| OS (pre-installed) | Moxa Industrial Linux (Debian 9, Kernel 4.4) |
| USB | USB 2.0 hosts x 1, type A connector |
| Serial Interface | |
| Serial Standards | 4 RS-232/422/485, software selectable port (RJ45) |
| Digital Input | |
| Input Channels | DI x 4 |
| Digital Output | |
| Output Channels | DO x 4 |
| Output Current | 24 mA |
| Output Voltage | Logic 0: 0 to 0.55 V, Logic 1: 2.5 to 3.3 V |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 300 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Ready x 1 |
| LAN | LED located on the RJ45 connector, 10M/Link x 1, 100M/Link x 1 |
| Serial | TxD x 1, RxD x 1 |
| programmable LEDs | programmable LEDs |
| Power Requirements | |
| Input Voltage | 9 to 48 VDC (3-pin terminal block, V+, V-, SG) |
| Input Current | Input Current |
| Power Consumption | 6 W (without cellular module and external USB device attached) |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| Storage Expansion | SDHC/SDXC socket for storage expansion |
| Physical Characteristics | |
| Dimensions | 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in) |
| Housing | Metal |
| Operating temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| EMC | EN 55032/24, EN 61000-6-2/6-4, RCM, VCCI, EAC |
| Weight | 600 g (1.32 lb) |
| Anti-Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
| Safety | UL 60950-1, IEC 60950-1, EN 60950-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | 20 g @ IEC 60068-2-27, half sine wave, 11 ms |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Mounting | DIN rail, wall (with optional kit) |
