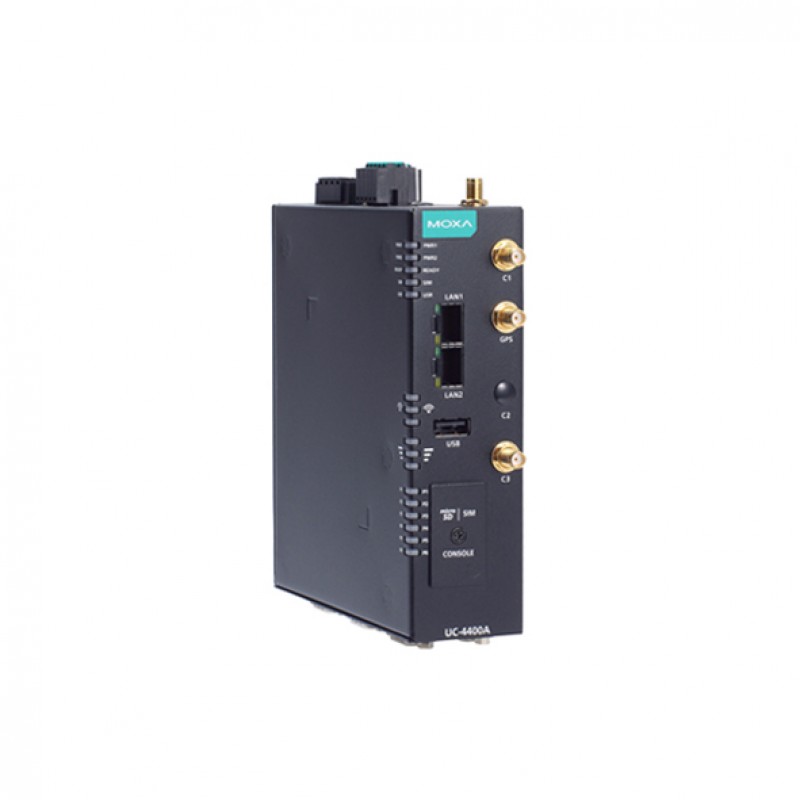

MOXA UC-4430A-T Industrial Embedded Computer
- CPU Arm Cortex-A53 quad-core 1.6 GHz
- Pre-installed Linux Debian 11, kernel 5.10
- 2 x 10/100/1000 Mbps Ethernet Ports
- 2 x RS-232/422/485 Serial Ports and 1 x CAN 2.0 A/B Port
- 9 to 48 VDC Redundant dual power inputs
- IP30-rated Metal and SECC body design
- DIN-rail and Wall mounting
- -40 to 70°C operating temperature range
.png)
Description
The UC-4400A computing platform is designed for embedded
data-acquisition applications. The computer comes with up to four
RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and up to 2
CAN ports, as well as a Mini PCIe and M.2 E socket to support LTE Cat. 4 and
Wi-Fi 6E modules. These versatile capabilities let users efficiently adapt the
UC-4400A to a variety of complex communications solutions.
The UC-4400A is built around an Arm Cortex-A53 quad-core
processor that has been optimized for use in energy monitoring systems but is
widely applicable to a variety of industrial solutions. With flexible
interfacing options, this tiny, embedded computer is a reliable and secure
gateway for data acquisition and data processing at field sites as well as a
useful communications platform for many other large-scale deployments.
Wide-temperature cellular-enabled models are available for
extended-temperature applications. All units are thoroughly tested in a testing
chamber, guaranteeing that the cellular-enabled computing platforms are
suitable for wide-temperature applications.
You can also find the UC-4414A-I-T, UC-4410A-T, and UC-4450A-T-5G models in the Wide Temperature Computers.
Inquire about the MOXA UC-4430A-T Industrial Embedded Computer, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Arm Cortex-A53 quad-core 1.6 GHz |
| Supported OS | Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL |
| OS (pre-installed) | Linux Debian 11, kernel 5.10 |
| System Memory | 4 GB LPDDR4 |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 2 x RS-232/422/485 ports (software-selectable, DB9 male connector) |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | 1 x microSD socket, 1 x M.2 E-key slot (for Wi-Fi), 1 x mPCIe slot (for LTE) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.60 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 2, READY (device bootup) x 1, SIM card indicator x 1 |
| LAN | 2 ports, 1 per port (10/100/1000 Mbps) |
| Serial | 1 LED per port for 2 serial ports |
| Power Requirements | |
| Input Voltage | 9 to 48 VDC (Redundant dual power inputs) |
| Input Current | 2.10 A @ 9 VDC, 0.27 A @ 48 VDC (with LTE accessory) |
| Power Consumption | 13 W (with LTE) @ 95% CPU loading |
| General | |
| Alert Tools | External WDT (watchdog timer) |
| Automatic Reboot Trigger | External RTC (real-time clock) |
| MTBF | 1,161,321 hrs |
| Physical Characteristics | |
| Dimensions | 141.5 x 120 x 41 mm (5.57 x 4.72 x 1.62 in) |
| Housing | Metal, SECC |
| Operating temperature | With Wi-Fi: -30 to 70°C (-22 to 158°F); With Cellular: -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4, UKCA, RCM, KC; EMI: FCC Part 15B Class A, ICES-003 Class A, EN 55032 Class A, EN 61000-6-4 Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF; International Approval: FCC, CE, ISED, UKCA, RCM, KC; Safety: IEC 62368-, EN 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-64, 2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached); Green Product: RoHS, CRoHS, WEEE; IP30; Telcordia (Bellcore) Standard TR/SR |
| Weight | 750 g (1.7 lb) |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
