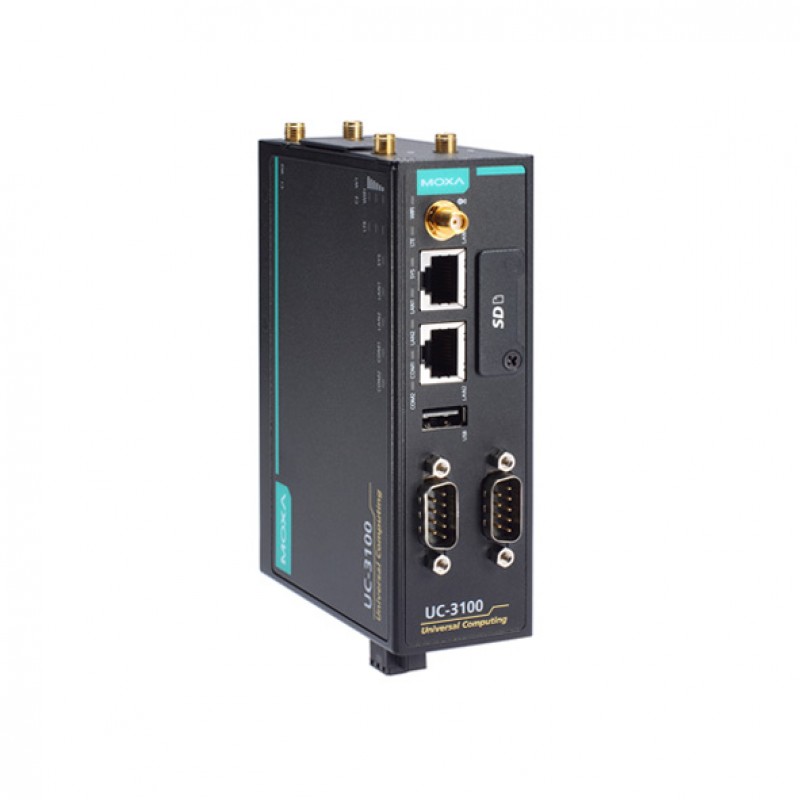

MOXA UC-3121-T-US-LX Industrial Embedded Computer
- 1 x RS-232/422/485 Serial ports
- 1 x CAN port
- AT&T Carrier Approval
- Armv7 Cortex-A8 1000 MHz processor
- Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1
- Robust root file system to prevent the system from being bricked due to a firmware update failure
- -30 to 70°C system operating temperature
- Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
- Supports Linux real-time OS mode
- Moxa Industrial Linux with 10-year long-term support
- Brand: MOXA
- Product Code: UC-3121-T-US-LX
Description
Moxa’s UC-3100 Series computers can be used as edge-field smart gateways for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The UC-3100 Series includes three models, each supporting different wireless options and protocols. The UC-3100’s advanced heat dissipation design makes it suitable for use in temperatures ranging from -30 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize your “data pre-processing” and “data transmission” capability in most harsh environments. In addition, TPM v2.0 uses a hardware chip to boost data security, making it highly unlikely that hackers will be able to steal your data, either remotely or locally.
The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration for your application.
• High VPN performance; greater than 70 Mbps Ethernet throughput with AES-256 encryption
• Robust file system to prevent the system from being bricked due to a firmware upgrade failure
• Cybersecurity auto-configuration system based on IEC 62443
• Real COM mode to provide a control interface to Moxa’s NPort products
In addition, Moxa provides 10 years of Linux OS support from Moxa’s customer support engineers.
With a new version of the Debian repository released on average every 2 to 3 years, long-term Linux OS support helps you create a reliable solution that will be supported now and long into the future.
You can also find the UC-3121-T-AP-LX, UC-3111-T-AU-LX, and UC-3101-T-EU-LX models in the Wide Temperature Computers.
Experience the convenient way to purchase the MOXA UC-3121-T-US-LX Industrial Embedded Computer in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| LAN | 2 auto-sensing 10/100 Mbps ports (RJ45) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Serial Standards | 1 x RS-232/422/485 |
| Computer | |
| CPU | ARMv7 Cortex-A8 1000 MHz |
| OS (pre-installed) | Debian 9 (Kernel 4.4) |
| USB | 1 USB 2.0 host (type A connector) |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 921600 bps (max.) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| Power Requirements | |
| Input Voltage | 9 to 36 VDC (3-pin terminal block, V+, V-, SG) |
| Input Current | 500 mA @ 12 VDC |
| Power Consumption | 6 W (with cellular module active) |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| Speed | 10 kbps to 1 Mbps |
| Physical Characteristics | |
| Dimensions | 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) |
| Housing | Al 5052 |
| Operating temperature | -30 to 70°C (-22 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | LTE (FDD) 3GPP Rel.9 Compliant, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, 1 or 2 RS-232/422/485 ports, software-selectable |
| EMC | IEC 61000-6-2/6-4 |
| Weight | 550 g (1.22 lb) |
| Anti-Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis |
| Safety | UL 60950-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | 20 g @ IEC 60068-2-27, half sine wave, 30 ms |
| Hazardous Location | C1D2, IECEx, ATEX |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz, 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: DC Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 30 A/m |
| Mounting | Wallmount, DIN-rail |
