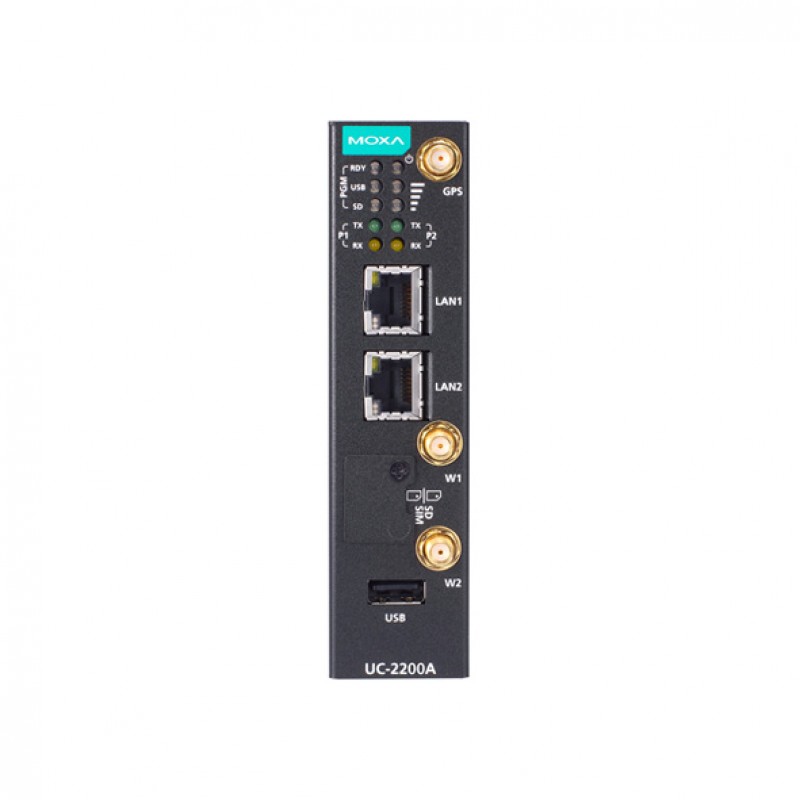

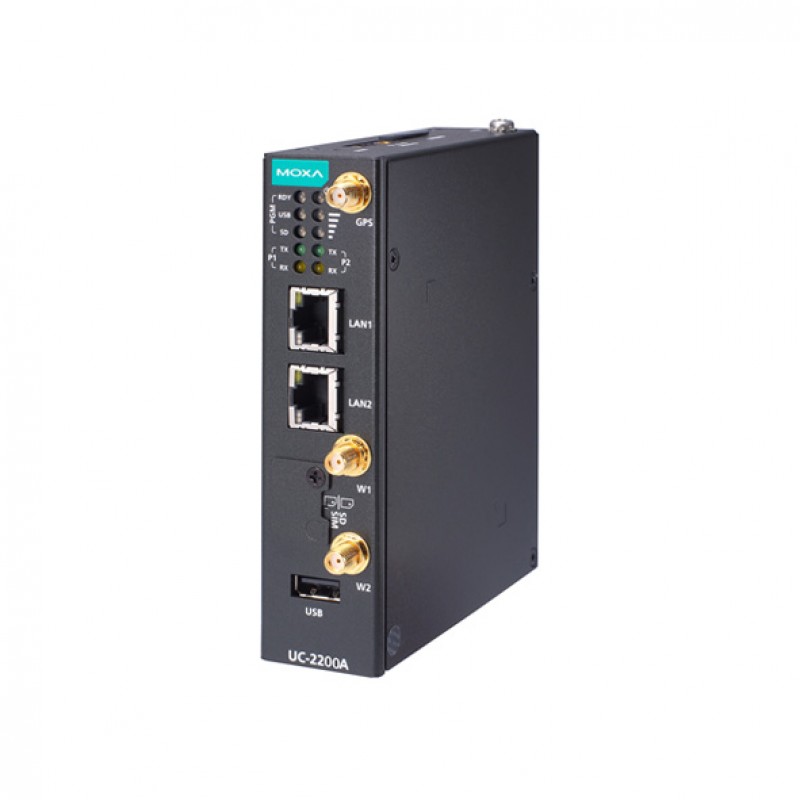

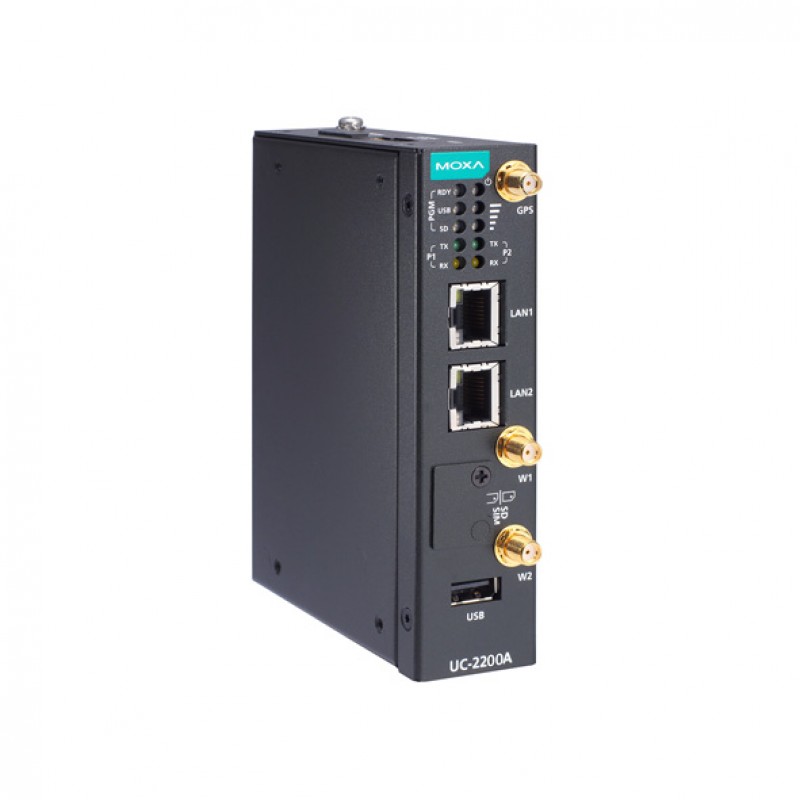

MOXA UC-2222A-T-EU Industrial Embedded Computer

  • Supports EU Frequency Bands
  • CPU: Armv8 Cortex-A53 dual-core 1GHz
  • 2 x 10/100/1000 Mbps ports (RJ45 connector)
  • 2 x RS-232/422/485 ports (Terminal block connector)
  • 12 to 24 VDC input power range
  • SECC and Metal body design
  • Din-rail and Wall mounting
  • -40 to 70°C operating temperature range

Description

The UC-2200A computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-2200A to a variety of complex communications solutions.

The UC-2200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide-temperature and LTE-enabled models are available. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.



You can also find the UC-2222A-T-US, UC-2222A-T-AP, and UC-2222A-T-CN models in the Wireless Computers.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA UC-2222A-T-EU Industrial Embedded Computer through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Computer
CPU Armv8 Cortex-A53 dual-core 1GHz
Supported OS -
OS (pre-installed) Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL
System Memory 2 GB DDR4
Graphics Controller -
Storage Slot micro SD slots x 1
Interface
LAN 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
Digital Input/Output Channels -
Serial Ports 2 x RS-232/422/485 ports, software selectable (terminal block)
USB 1 x USB 2.0 host, type-A connectors
Expansion Slot mPCIe slots x 1
Serial Communication Parameters
Baudrate 300 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
LED Indicators
System Power x 1, SW ready (programmable), USB (programmable) x 1, micro SD slot (programmable) x 1, Serial Port: TX x 2, RX x 2
LAN -
Serial -
Power Requirements
Input Voltage 12 to 24 VDC
Input Current 900 mA @ 12 VDC, 450 mA @ 24 VDC
Power Consumption 7.8 W (without external USB device), 10.5 W (with external USB device)
General
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
MTBF 866,622 hrs
Physical Characteristics
Dimensions 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in)
Housing SECC, Metal
Operating temperature -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 80°C (-40 to 176°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 62368-1; International Approval: RCM, KC, BSMI; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Weight 546 g (1.2 lb)
Mounting DIN-rail mounting, Wall mounting (with optional kit)
