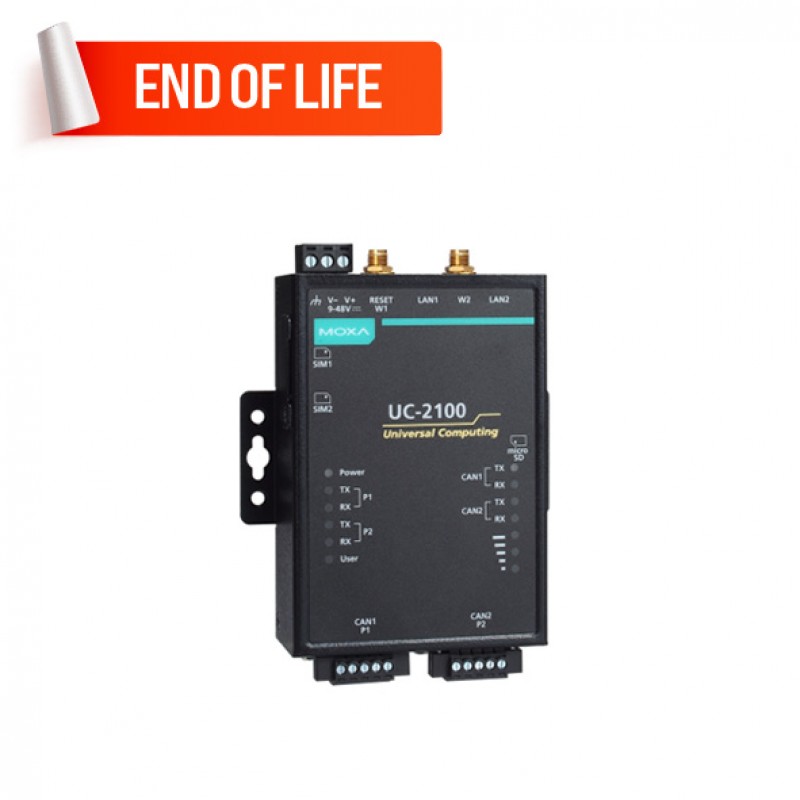

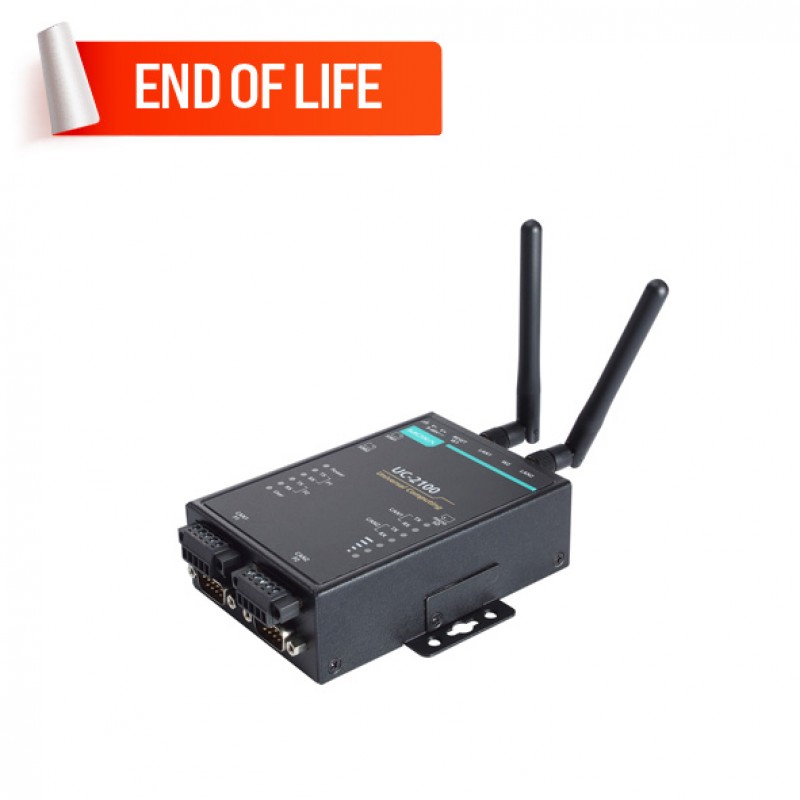

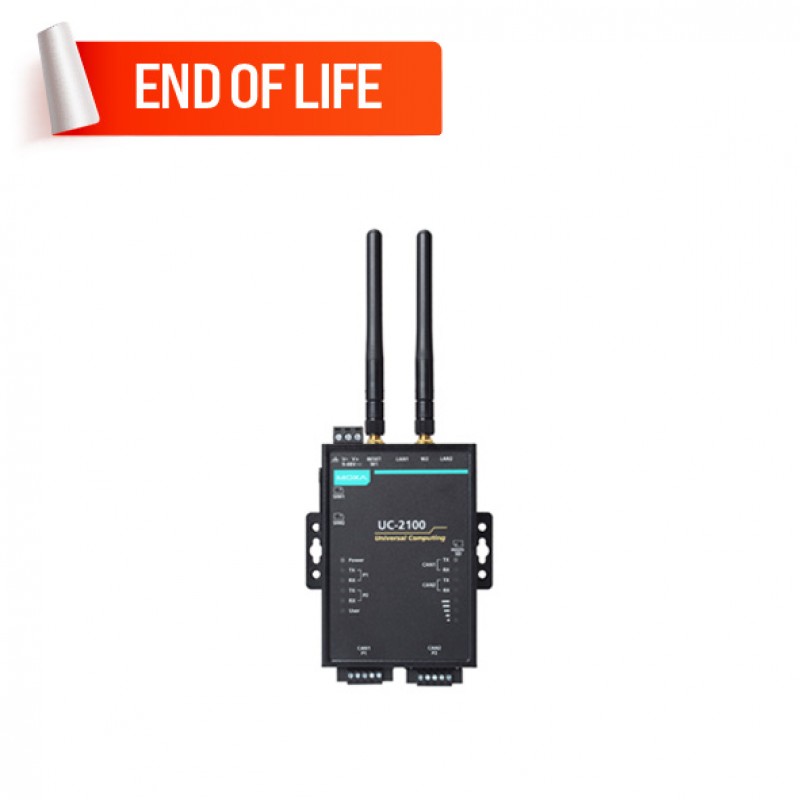

MOXA UC-2114-T-LX Industrial Embedded Computer

  • Armv7 Cortex-A8 1000 MHz processor
  •  Integrated LTE NB-IoT/Cat. M1 module with global band support
  •  Dual-SIM slots
  •  Moxa Industrial Linux with 10-year long-term support
  •  Dual auto-sensing Ethernet ports (10/100 Mbps and 10/100/1000 Mbps)
  •  Dual CAN ports with industrial CAN 2.0 A/B protocol supported
  •  microSD socket for storage expansion
  •  Programmable LEDs and a programmable button for easy installation and maintenance
  •  -40 to 75°C operating temperature range

  • Brand: MOXA
  • Product Code: UC-2114-T-LX

Description

The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software-selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC-2100 for a variety of complex communications solutions. The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions.

With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide-temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.


You can also find the UC-2116-T-LX models in the Wide Temperature Computers.


Easy World Automation offers the easiest way to buy the MOXA UC-2114-T-LX Industrial Embedded Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
LAN Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1, Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
Magnetic Isolation Protection 1.5 kV (built-in)
Serial Standards RS-232/422/485 ports x 2, software-selectable (terminal block)
ESD Protection 4 kV, for all signals
Computer
Flash -
OS (pre-installed) Moxa Industrial Linux (Debian 9, Kernel 4.4)
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Baudrate 50 bps to 921.6 kbps
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
LED Indicators
System Power x 1, Programmable x 1
LAN 2 per port (10/100 Mbps)
Serial 2 per port (Tx, Rx)
Power Requirements
Input Voltage 9 to 48 VDC
Input Current 0.6 A @ 9 VDC, 0.12 A @ 48 VDC
Power Consumption 5.8 W
General
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
MTBF 533,149 hrs
Storage Expansion Micro SD Slot x 1
CPU Support Armv7 Cortex-A8 1 GHz
Physical Characteristics
Dimensions 111 x 99 x 34.5 mm (4.37 x 3.90 x 1.36 in)
Housing Metal
Operating temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
EMC EN 55032/24
Anti-Vibration 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
Safety EN 62368-1, UL 62368-1
Green Product RoHS, CRoHS, WEEE
Mounting Wall-mounting, DIN-rail mounting (with optional kit)
