Description
The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software-selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC-2100 for a variety of complex communications solutions. The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions.
With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide-temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.
You can also find the UC-2102-LX, UC-2111-LX, and UC-2112-T-LX models in the Wireless Computers.

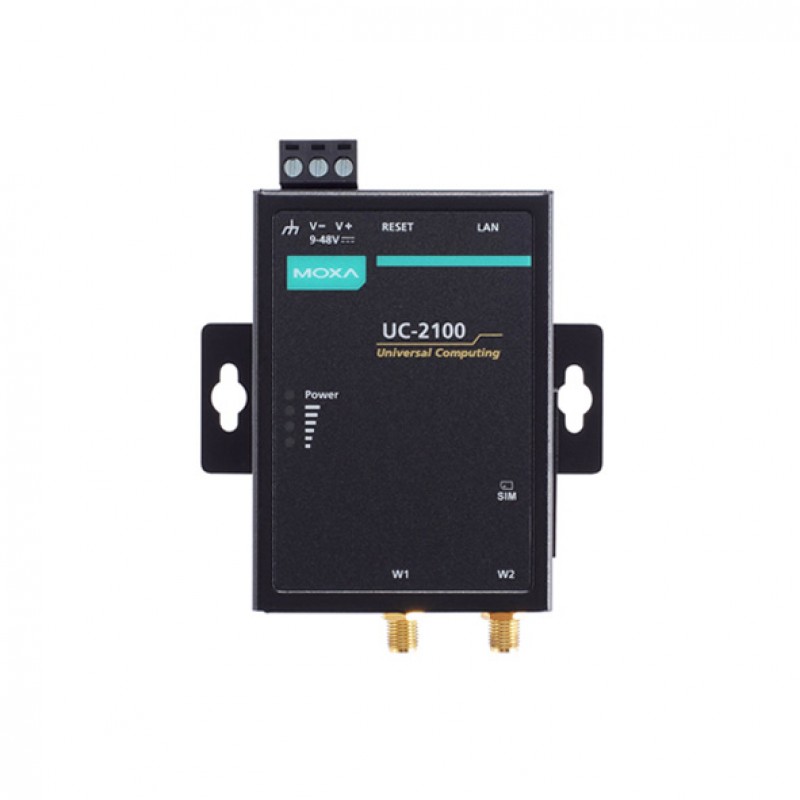

Inquire about the MOXA UC-2104-LX Industrial Embedded Computer, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Armv7 Cortex-A8 600 MHz |
| Supported OS | Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL |
| OS (pre-installed) | Linux Debian 9, Kernel 4.4 |
| System Memory | 256 MB DDR3 SDRAM |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 1 x Auto-sensing 10/100 Mbps port (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Digital Input/Output Channels | - |
| Serial Ports | - |
| USB | - |
| Expansion Slot | 1 x mPCIe slot |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 9 to 48 VDC |
| Input Current | 0.45 A @ 9 VDC, 0.084 A @ 48 VDC |
| Power Consumption | 4 W (max.) (without cellular module) |
| General | |
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
| MTBF | 1,577,995 hrs |
| Physical Characteristics | |
| Dimensions | 80 x 80 x 30.8 mm (3.15 x 3.15 x 1.21 in) |
| Housing | Metal |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 70 °C (-4 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, UL 60950-1; Green Product: RoHS, CRoHS, WEEE; Shock: IEC 60068-2-27; Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached); Telcordia (Bellcore) Standard TR/SR |
| Weight | 220 g (0.49 lb) |
| Mounting | Wall mounting, DIN-rail mounting (with optional kit) |
