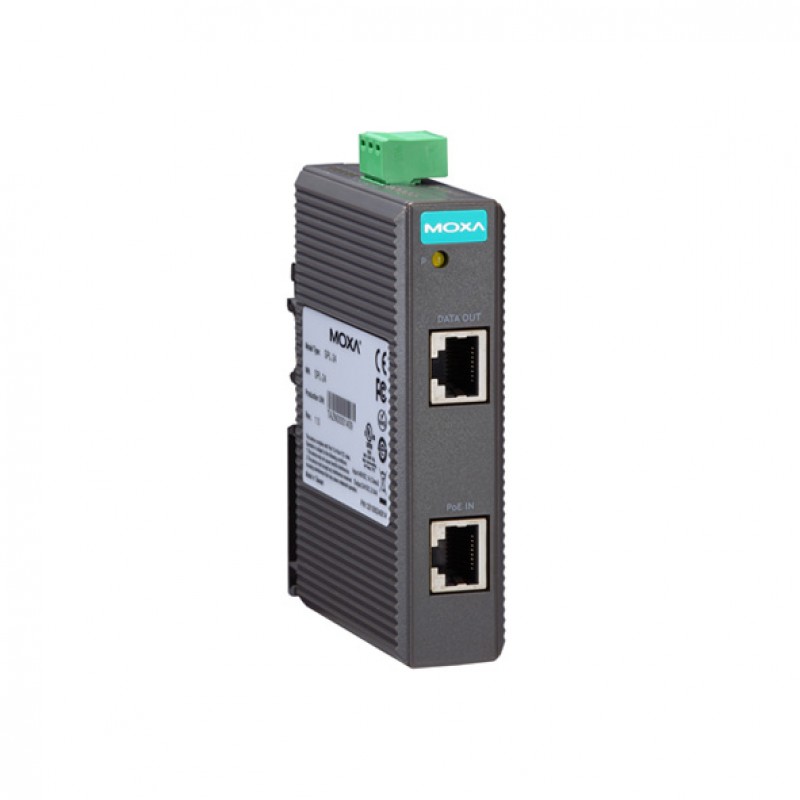

MOXA SPL-24 PoE Splitter

  • 1 x 10/100BaseT(X), RJ45 connector
  • 1 x  PoE Port (PD), 10/100BaseT(X), RJ45 Connector
  • IEEE 802.3af/at compliant
  • IP30-rated Metal body design
  • Supports output power up to 12.95 W at 24 VDC
  • DIN-rail mounting
  • 0 to 60°C operating temperature

Description

The main benefit of PoE is that it can transfer data and power to Ethernet-enabled devices using a standard Ethernet CAT5 cable. Moxa’s SPL-24 PoE splitters perform the role of powered devices (PDs) and split power from the injector to Ethernet devices. When using Moxa’s devices, power and data can be transmitted up to 100 meters (328 feet) from the power source equipment (PSE).

The standard model can operate in temperatures from 0 to 60°C (32 to 140°F) and the wide-temperature model can operate in temperatures from -40 to 75°C (-40 to 167°F). In addition, the rugged hardware means that these devices will perform reliably even when used in demanding industrial applications.


You can also find the SPL-24-T model in the PoE Splitters.


Easy World Automation offers the easiest way to buy the MOXA SPL-24 PoE Splitter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 1 Port (Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed)
10/100/1000Mb RJ45 (Gigabit) Ports
Input PoE Port
Output PoE Port : 1 Port (PD), 10/100/1000BaseT(X), RJ45 connector (Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed)
Standards and protocols
Protocols and work standards IEEE 802.3af for PoE, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
Power Requirements
Operating Voltage 44 to 75 VDC (PoE)
Output power 12.95 W (max.)
Output Voltage Rating 24 VDC
Connector 1 removable 3-contact terminal block(s)
Physical Characteristics
Installation DIN-rail mounting
Dimensions 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Storage Humidity 5 to 95% (non-condensing)
Weight 95 g (0.21 lb)
MTBF 5,104,703 hrs
Standards and Certifications Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Signal: 2 kV, IEC 61000-4-5 Surge: Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Maritime: DNV-GL, ABS, LR, NK; Vibration: IEC 60068-2-6; IP30; MIL-HDBK-217F
