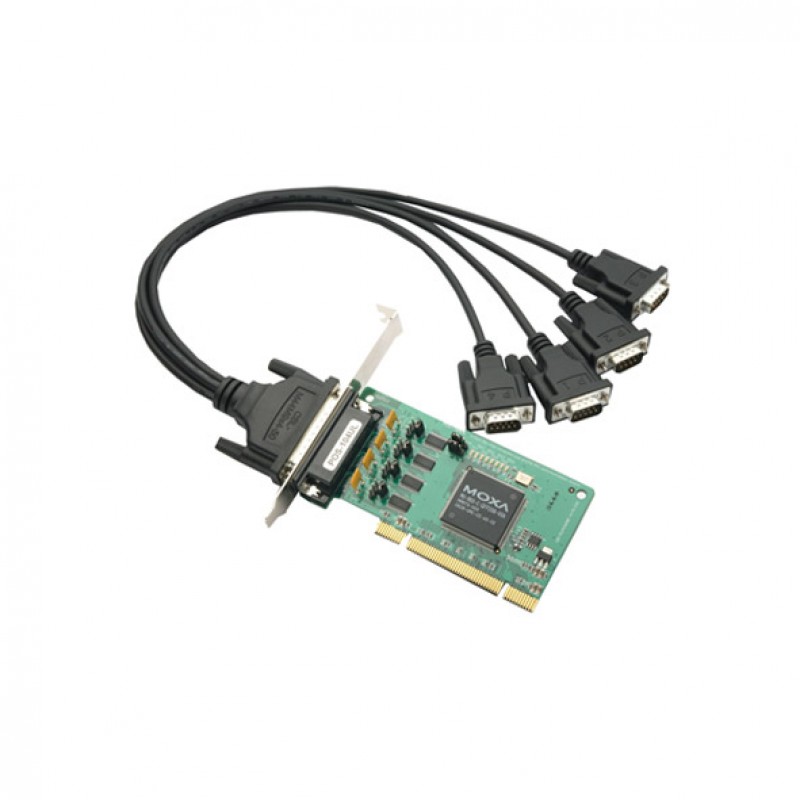

MOXA POS-104UL-DB9M UPCI Serial Board
- 4 x RS-232 Serial Ports (DB44 female connector)
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible Drivers with Windows, Linux, and UNIX
- 1 A @ 5 V, 1 A @ 12 V (per port) Output power rating
- Included Cable: CBL-M44M9x4-50
- 0 to 55°C Operating Temperature
Description
The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and it works with both 3.3 V and 5 V PCI buses, making it suitable for installation in most PC servers.
You can also find the POS-104UL-T model in the Multiport Serial Cards.
Easy World Automation offers the easiest way to buy the MOXA POS-104UL-DB9M UPCI Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 4 Ports |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232 |
| Connector | DB44 female |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128-bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI (optional) |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| POWER REQUIREMENTS | |
| Input Current | - |
| Input Voltage | - |
| GENERAL | |
| MTBF | 2,124,022 hrs |
| LED Indicators | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: EN 61000-6-4, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
