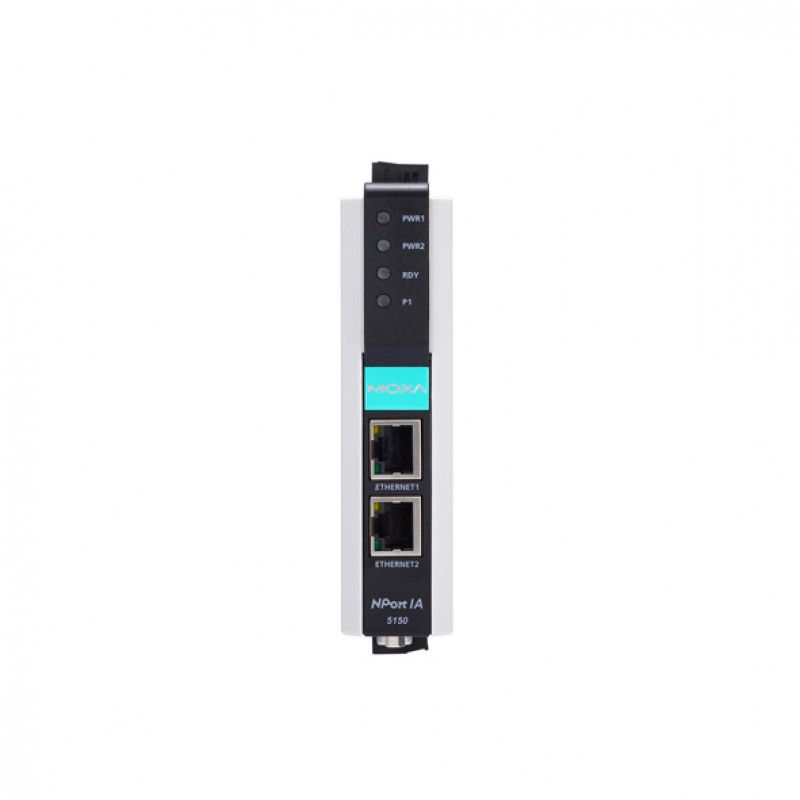

MOXA NPort IA-5150 Serial to Ethernet Device Server
- 2 x 10/100Mbps T(x) Ethernet ports (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9-M and TB connectors)
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated plastic body design
- DIN-rail mounting installation
- 0 to 55°C operating temperature
.png)
Description
NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.
Cascading Ethernet Ports Make Wiring Easy (10/100BaseTX models)
The NPort® IA5150 and IA5250 device servers each have two
Ethernet ports that can be used as Ethernet switch ports. One port connects
directly to the network or server, and the other port can be connected to
either another NPort® IA device server or an Ethernet device. The dual Ethernet
ports help reduce wiring costs by eliminating the need to connect each device
to a separate Ethernet switch.
You can also find the NPort IA-5150I, NPort IA-5150I-T, and NPort IA-5250-T models in the Serial-to-Ethernet Converters.
Easy World Automation offers the easiest way to buy the MOXA NPort IA-5150 Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 1 Port |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male for RS-232 and terminal block for RS-422/485 |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet |
| Compatible operating systems | Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT, Windows Embedded CE 5.0 and 6.0, Windows XP Embedded |
| Fixed TTY Drivers | macOS versions: 14, 13, 12, 11, and 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| MTBF | 1,349,710 hrs |
| Automatic Reboot Trigger | - |
| Power Requirements | |
| Connection | Terminal block |
| Input Voltage | 12V DC, 0.238A to 48V DC (Dual power inputs) |
| Input Current | 435 mA @ 12 VDC |
| Security | |
| Security | - |
| Encryption | - |
| Authentication | Local database (password only) |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) |
| Installation | DIN-rail mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508; Maritime: DNV; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia (Bellcore) Standard TR/SR |
| Housing | Plastic |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Weight | 360 g (0.79 lb) |
