Description

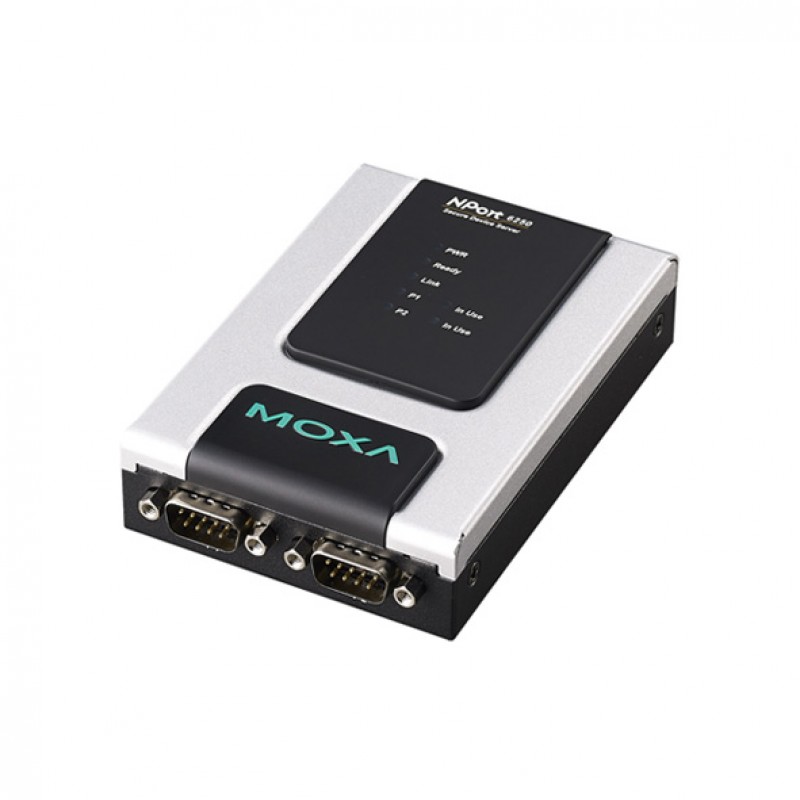

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.
Secure Data Transmission
For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.
Zero Data Loss If Ethernet Connection Fails
The NPort® 6250 device servers help guarantee reliability by
providing users with secure serial-to-Ethernet data transmission and a
customer-oriented hardware design. If the Ethernet connection fails, the NPort®
6250 will queue all serial data in its internal 64 KB port buffer. When the
Ethernet connection is re-established, the NPort® 6250 will immediately release
all of the data in the buffer in the order that it was received. Users can
increase the port buffer size by installing an SD card.
You can also find the NPort 6250 and NPort 6250-S-SC models in the Serial-to-Ethernet Converters.
Easy World Automation offers the easiest way to buy the MOXA NPort 6250-M-SC Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Serial Interface | |
|---|---|
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, LLDP, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP |
| Fixed TTY Drivers | macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 12-48 Vdc, 430 mA |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Ethernet Interface | |
| Standards | Telcordia (Bellcore) Standard TR/SR |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Physical Characteristics | |
| Safety | UL 60950-1, UL 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 |
| Housing | Metal |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
