Description
NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize the management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
Convenient Design for RS-485 Applications
The NPort 5650-8-DT device servers support selectable
1-kilo-ohm and 150-kilo-ohm pull high/low resistors and a 120-ohm terminator.
In some critical environments, termination resistors may be needed to prevent
the reflection of serial signals. When using termination resistors, it is also
important to set the pull high/low resistors correctly so that the electrical
signal is not corrupted. Since no set of resistor values is universally
compatible with all environments, NPort 5600-8-DT device servers use DIP switches
to allow users to adjust termination and pull high/low resistor values manually
for each serial port.
You can also find the NPort 5610-8-DT-J w/ Adaptor model in the Serial-to-Ethernet Converters.

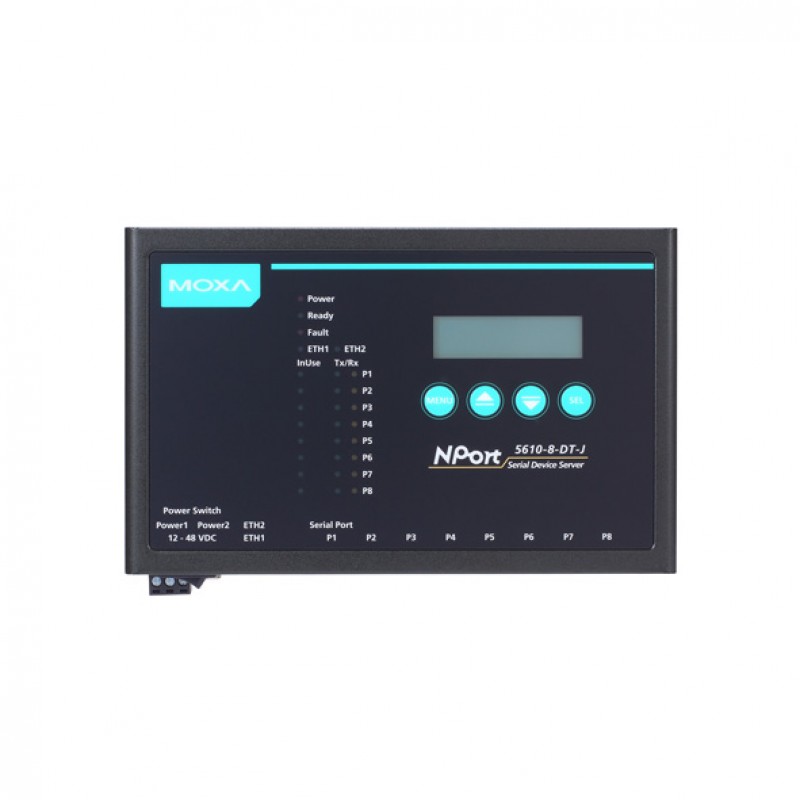

Experience the convenient way to purchase the MOXA NPort 5610-8-DT-J w/o Adaptor Serial to Ethernet Device Server in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 2 Port |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 8 Port |
| Serial port specifications | |
| Serial connection type | 8-pin RJ45 |
| Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Data transfer speed ( Baudrate ) | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Protection against electrostatic discharge | - |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility, DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP |
| MTBF | 111,407 hrs |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Security | |
| Security | |
| Encryption | |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | |
| Standards and protocols | |
| Network protocol | DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP, SNTP |
| Physical Characteristics | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs |
| Marine | |
| Medical | |
| LAN port Protection against magnetic fields | 1.5 kV (built-in) |
| Housing | Metal |
| Altitude | - |
| Operation Humidity | 5 to 95% (non-condensing) |
