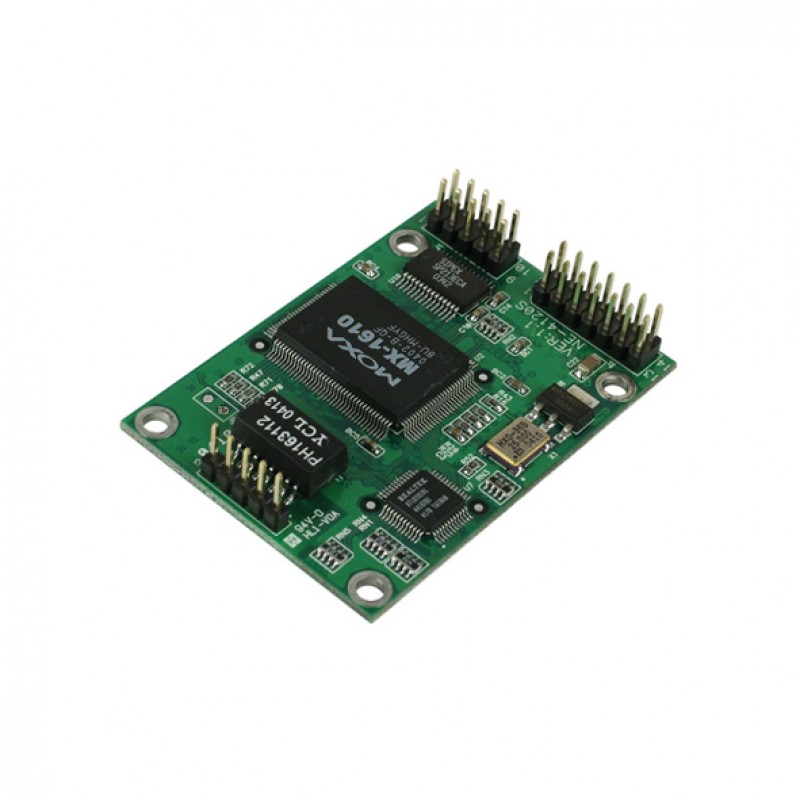

MOXA NE-4120S-T Serial to Ethernet Device Server Module
- CPU: 16-bit MCU
- 1 x 10/100BaseT(X) Ports (5-pin pin header connector)
- 2 x Serial Port (1 for serial interface, 1 for TTL console port)
- Input power 5V DC, 0.29A
- Form Factor Type: Ready-to-go pin header module
- -40 to 75°C operating temperature
Description
Moxa’s NE-4100 embedded device servers are designed for
manufacturers who want to add sophisticated network connectivity to their
serial devices. Moxa’s embedded device servers can be used to convert any
device with a standard serial interface to an Ethernet-enabled device in no
time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and
provide ready-to-use operation modes, including TCP Server, TCP Client, and
UDP. In addition, a Real COM driver is included for backward compatibility with
legacy software.
You can also find the NE-4120S and NE-4120A-T models in the Serial-to-Ethernet Converters.
Easy World Automation offers the easiest way to buy the MOXA NE-4120S-T Serial to Ethernet Device Server Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Embedded System | |
|---|---|
| CPU | 16-bit MCU |
| Flash | 2 MB |
| SDRAM | 1 MB |
| Input/Output Interface | |
| Configurable DIO Channels | : 4 x Channels |
| Digital Input Channels | |
| Digital Output Channels | |
| Ethernet Interface | |
| Ethernet Ports | 1 x 10/100BaseT(X) Ports, Auto MDI/MDI-X (5-pin pin header connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Power Parameters | |
| Input Current | - |
| Input Voltage | 5 VDC |
| Seriel Interface | |
| Number of Ports | 2 Ports (1 for serial interface, 1 for TTL console port) |
| Serial Standards | RS-232 |
| Baudrate | 110 bps to 230.4 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| General | |
| Management | ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| MTBF | 289,573 hrs |
| Physical Characteristics | |
| Dimensions | 57 x 40 mm (2.24 x 1.57 in) |
| Operating Temperature | -40 to 75˚C (-40 to 167˚F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3, IEC 60068-2-14; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 20 g (0.04 lb) |
