Description

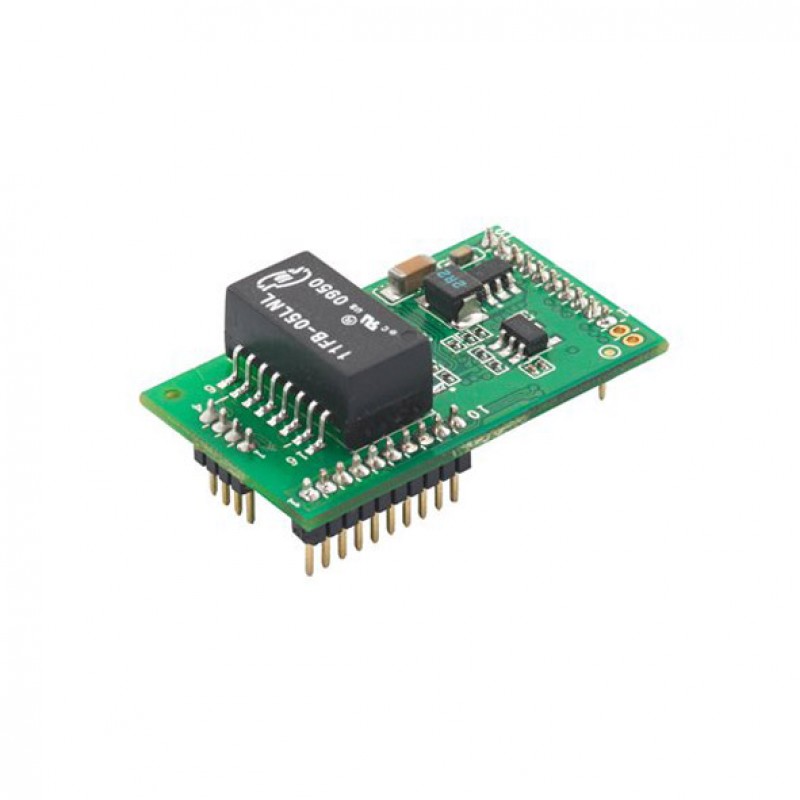

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/ 100 Mbps Ethernet delivers a serial baud rate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.
Moxa’s Second-generation SoC
The MiiNe was created to provide manufacturers with a
competitive embedded serial-to-Ethernet solution. The MiiNePort E2, which uses
the MiiNe for its SoC, is one of the world’s tiniest embedded device servers
and has the lowest power consumption among similar products. The MiiNe’s
features include:
• Cost-effective serial-to-Ethernet conversions
• Arm core
• Advanced UART technology
• Internal 2 MB Flash and 4 MB SDRAM memory
You can also find the MiiNePort E2-ST, MiiNePort E2-H-T, and
MiiNePort E2-H models in the Serial-To-Ethernet Converters.
Enjoy the ease of online
inquiries for the MOXA MiiNePort E2-T Embedded Serial Module. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Embedded System | |
|---|---|
| CPU | 32-bit Arm Core |
| Flash | 2 MB |
| SDRAM | 4 MB |
| Input/Output Interface | |
| Configurable DIO Channels | : 4 x Channels |
| Digital Input Channels | |
| Digital Output Channels | |
| Ethernet Interface | |
| Ethernet Ports | 1 x 10/100BaseT(X) Port, Auto MDI/MDI-X (4-pin pin header) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Power Parameters | |
| Input Current | 157 mA @ 3.3 VDC |
| Input Voltage | 3.3 to 5 VDC |
| Seriel Interface | |
| Number of Ports | 1 Port |
| Serial Standards | TTL |
| Baudrate | 50 bps to 230.4 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF, None |
| Serial Signals | TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
| General | |
| Management | ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| MTBF | 5,696,350 hrs |
| Physical Characteristics | |
| Dimensions | 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in) |
| Operating Temperature | -40 to 85˚C (-40 to 185˚F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-1, IEC 60068-2-3; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 5 g (0.01 lb) |
