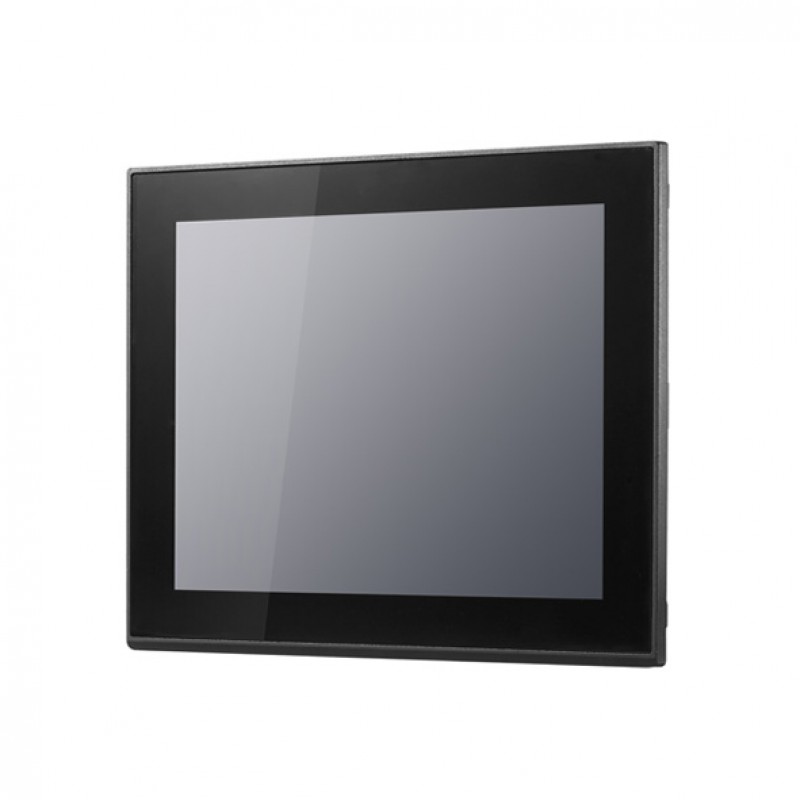

MOXA MPC-2120-E4-T Panel Computer
- 12-inch Panel computer (1000 nits)
- CPU Intel Atom® Processor E3845
- 2 x RS-232/422/485 Serial ports (DB9-M connector)
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
- Metal body design (IP66 for front, IP20 for rear)
- 12/24 VDC input power (Wide-range 10 to 36 VDC)
- -40 to 70°C operating temperature
.png)
Description
The MPC-2120 12-inch panel computers with E3800 Series Intel® Atom™ processor deliver a reliable and durable platform of wide versatility for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2120 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.
You can also find the MPC-2120-E2-LB-T-W7E,
MPC-2120-E2-T-W7E, and MPC-2120-E4-T-W7E models in the Displays and PanelComputers.
Easy World Automation offers the easiest way to buy the MOXA
MPC-2120-E4-T Panel Computer in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel Atom® Processor E3845 (2M Cache, 1.91 GHz) |
| Supported OS | Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Linux Debian 9 |
| OS (pre-installed) | - |
| System Memory | 4 GB DDR3L pre-installed |
| Graphics Controller | Intel® HD Graphics |
| Storage Slot | CFast slot x 1, SD slots x 1, SD 3.0 (SDHC/SDXC) socket |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 2 x USB 2.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 12-inch viewable image |
| Aspect Ratio | 4:3 |
| Response Time | 5 ms (gray to gray) |
| Contrast Ratio | 700:1 |
| Viewing Angles | 160°/140° |
| Touch | Capacitive multi-touch with glove-friendly support |
| Pixels | 1024 x 768 |
| Pixel Pitch (RGB) | 0.240 (H) x 0.240 (V) mm |
| Light Intensity | 1000 cd/m2 |
| Active Display Area | 245.76 (H) x 184.32 (V) mm |
| Max. No. of Colors | 16.2M (8-bit color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS, Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12 to 24 VDC (Wide-range 10 to 36 VDC) |
| Power Consumption | 40 W (max.) |
| Physical Characteristics | |
| Dimensions | 306 x 245 x 64 mm (12 x 9.6 x 2.5 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, IEC 60945; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Mechanical Protection Rating: IEC 60529, IP code; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20 |
| Weight | 2.64 kg (5.82 lb) |
| Mounting | VESA mount (50 x 75 mm), and panel mount |
