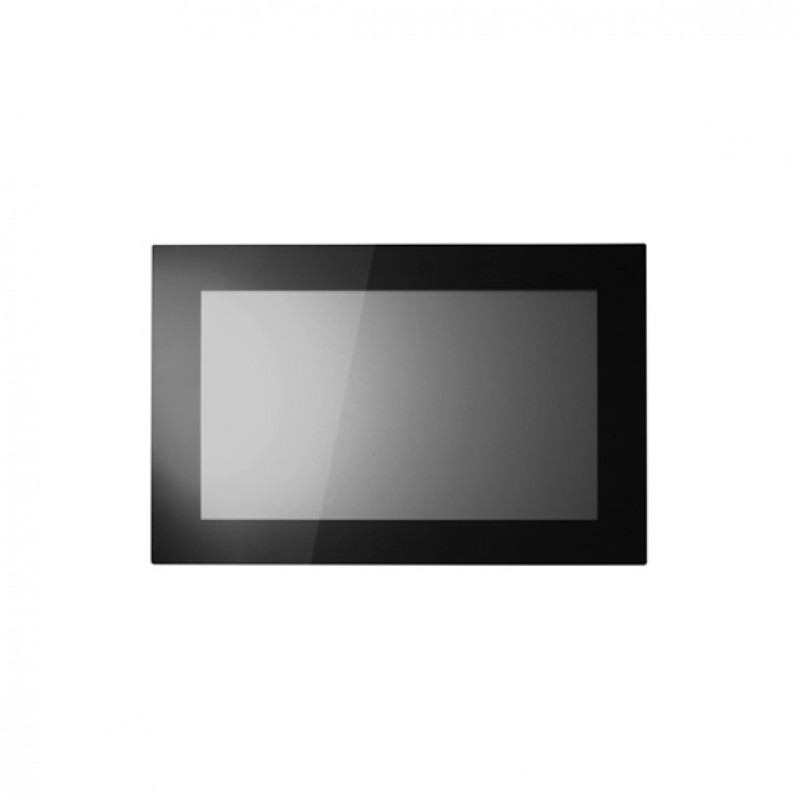

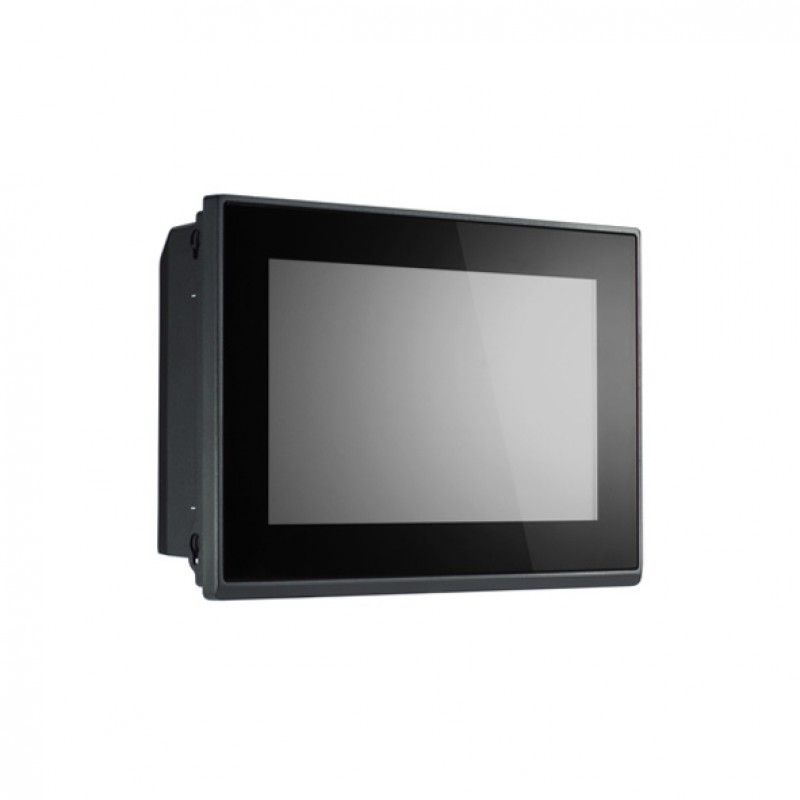

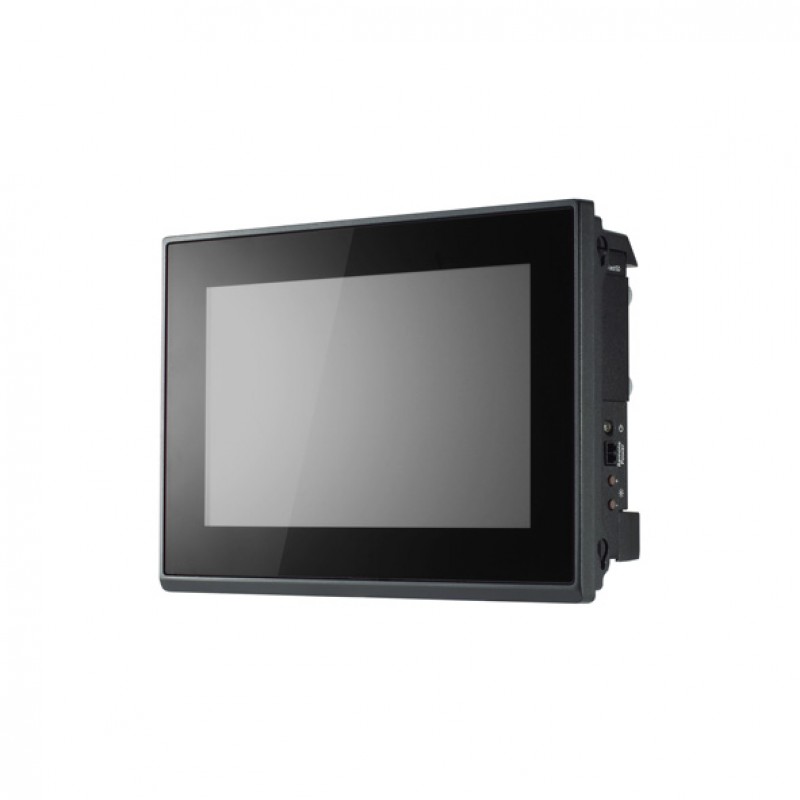

MOXA MPC-2070-E2-LB-T Panel Computer
- 7-inch display
- 2 x 10/100/1000Mbps Ethernet ports
- 2 x RS-232/422/485 Serial ports
- 2 x USB 2.0 hosts
- 4/4 x DI/ DO
- Intel Atom® E3826 CPU
- 4G RAM
- DDR3/DDR3L slot SODIMM
- Captive touchscreen
- Supported OS: Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Windows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
- -40 to 75°C operating temperature
Description
The MPC-2070 7-inch panel computers with E3800 Series Intel® Atom™ processor deliver a reliable and durable platform of wide versatility for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2070 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for outdoor applications.
You can also find the MPC-2070-E2-T, MPC-2070-E2-LB-T-W7E,
and MPC-2070-E2-T-W7E models in the Displays and Panel Computers.
You can explore our wide range of
products and enquire about the MOXA MPC-2070-E2-LB-T Panel Computer for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| LAN | Auto-sensing 10/100/1000 Mbps ports (RJ45 port) x 2 |
| Magnetic Isolation Protection | 1.5 kV, built-in |
| Serial Standards | 2 RS-232/422/485 ports, software-selectable (DB9 male) |
| Computer | |
| CPU | Intel® Atom™ Processor E3826, Dual Core, 1.46 GHz |
| Supported OS | Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit (the OS is not pre-installed in some models) |
| System Memory | 4 GB pre-installed (SDRAM) |
| USB | USB 2.0 hosts x 2, type-A connectors, supporting system boot up |
| Storage | 1 CFast slot + 1 SD card slot (storage is not pre-installed in some models) |
| Display | |
| Panel Size | 7-inch viewable image size |
| Aspect Ratio | 16:9 |
| Response Time | 5 ms (gray to gray) |
| Contrast Ratio | 600:1 |
| Viewing Angles | 140°/120° |
| Touch | Capacitive multi-touch with glove-friendly support |
| Pixels | 800 x 480 |
| Pixel Pitch (RGB) | 0.1905 (H) x 0.1905 (V) mm |
| Light Intensity | 350 cd/m2 |
| Active Display Area | 152.4 (H) x 91.44 (V) mm |
| Max. No. of Colors | 16.2M (8-bit color) |
| Digital Input | |
| Input Channels | DI x 4 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 1: +3 V max. Logic level 0: +10 V to +30 V (Source to DI) |
| Connector Type | 10-pin terminal block |
| Isolation | 3 kV optical isolation |
| Digital Output | |
| Output Channels | DO x 4, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin terminal block |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| Power Requirements | |
| Input Voltage | 12/24 VDC (Range 9 to 36 VDC) |
| Power Consumption | Less than 40 W |
| Physical Characteristics | |
| Dimensions | 200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in) |
| Housing | Aluminum sheet metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| EMC | EN 55032, EN 55024 |
| Weight | 1.40 kg (3.09 lb) |
| Anti-Vibration | 2 Grms, 5-500 Hz frequency, compliant with IEC 60068-2-6 standard |
| Safety | UL 60950-1, IEC 60950-1 |
| Green Product | RoHS, cRoHS, WEEE |
| Anti-Shock | 20 Grms, half sine wave under system operating, 11 ms duration, compliant with IEC 60068-2-27 standard |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Ingress Protection Rating | IP66 (front) / IP20 (rear) |
| Mounting | VESA mount (50 x 75 mm), and panel mount |
