Description

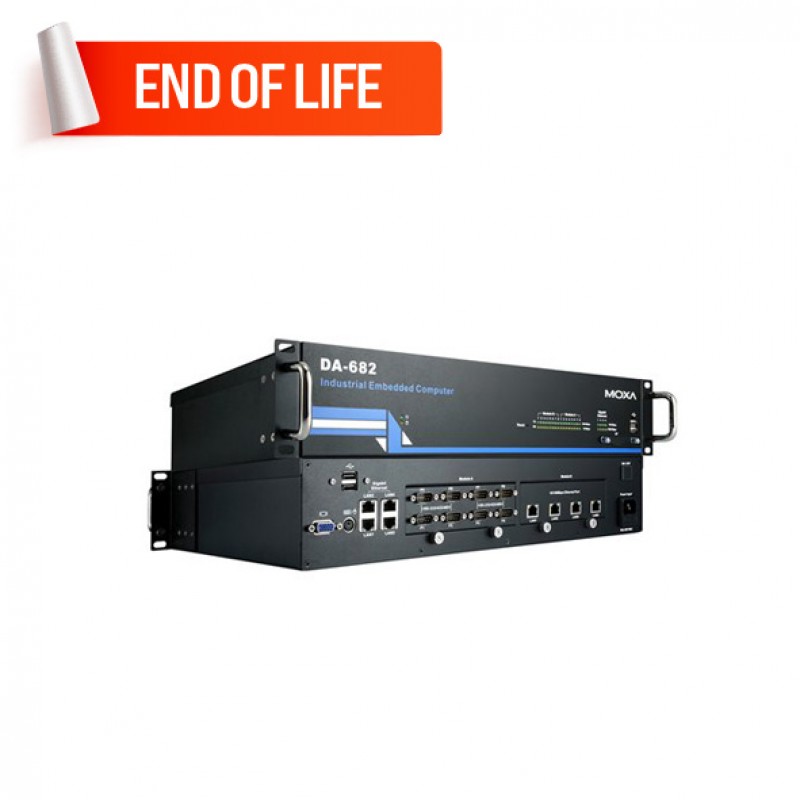

The DA-682 series of computers are x86 platforms with VGA, 4 Gigabit Ethernet ports, CompactFlash, USB, and two PCI ports for DA Series expansion modules. They come in a standard 19-inch, 2U high form factor. With their robust design, DA-682 computers specialize in industrial automation applications in the power industry that require 19-inch rackmount solutions, such as power automation, transportation, and oil and gas.
DA-682 computers run Linux or Windows XP Embedded (pre-installed), providing a friendly environment for developing sophisticated application software. Moxa's great software support makes the programmer’s job easier and helps programmers develop bug-free code quickly and at a lower cost.
The DA-682 comes with 2 PCI ports for DA Series expansion modules. Moxa provides a variety of communication modules, including an 8-port RS-232/422/485 module, a 4-port 10/100 Mbps LAN module, and a universal PCI expansion module. The friendly design gives users the advantage of being able to swap out modules quickly and easily.
These features make the DA-682 an ideal solution for use with a wide array of industrial automation applications.
End of Life Product - Replacement Available
Please note that the DA-682 Series has been phased out and replaced by the DA-682C Series.
Easy World Automation offers the easiest way to buy the MOXA DA-682-XPE Rackmount Computer
in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact
you to fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel Celeron M 1 GHz processor |
| Supported OS | Windows XP Embedded |
| OS (pre-installed) | Windows XP Embedded |
| System Memory | 1 GB capacity, 512 MB pre-installed: 1 slot of 1 GB 200-pin DDR2-400/533 SO-DIMM |
| Graphics Controller | Integrated graphics with built-in Intel 915GME, and built-in Intel extreme Graphics 2 technology |
| Storage Slot | Built-in: 1 GB industrial DOM for the read-only OS volume, Storage Expansion: CompactFlash socket |
| Interface | |
| LAN | 4 x auto-sensing 10/100/1000 Mbps Gigabit ports (Realtek RTL8110SC controller) |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Digital Input/Output Channels | |
| Serial Ports | |
| USB | 4 x USB 2.0 compliant hosts, Type A connector, supports system boot-up |
| Expansion Slot | 2 PCI |
| Serial Communication Parameters | |
| Baudrate | - |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| LED Indicators | |
| System | Power, Storage |
| LAN | 10/100M mode |
| Serial | TX/RX |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC auto-ranging (47 to 63 Hz for AC input), VDC model available on request |
| Input Current | - |
| Power Consumption | 30 W (full loading) |
| General | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) with battery lithium backup |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) supporting 1-255 level time interval system reset, software programmable |
| MTBF | 134,407 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 315 x 90 mm (17.32 x 12.40 x 3.54 in) (without rackmount ears) |
| Housing | SECC sheet metal (1 mm) |
| Operating temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1, CCC (GB4943, GB9254, GB17625.1); EMC: EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A; Green Product: RoHS, CRoHS, WEEE |
| Weight | 7 kg |
| Mounting | Standard 19-inch rackmount |
