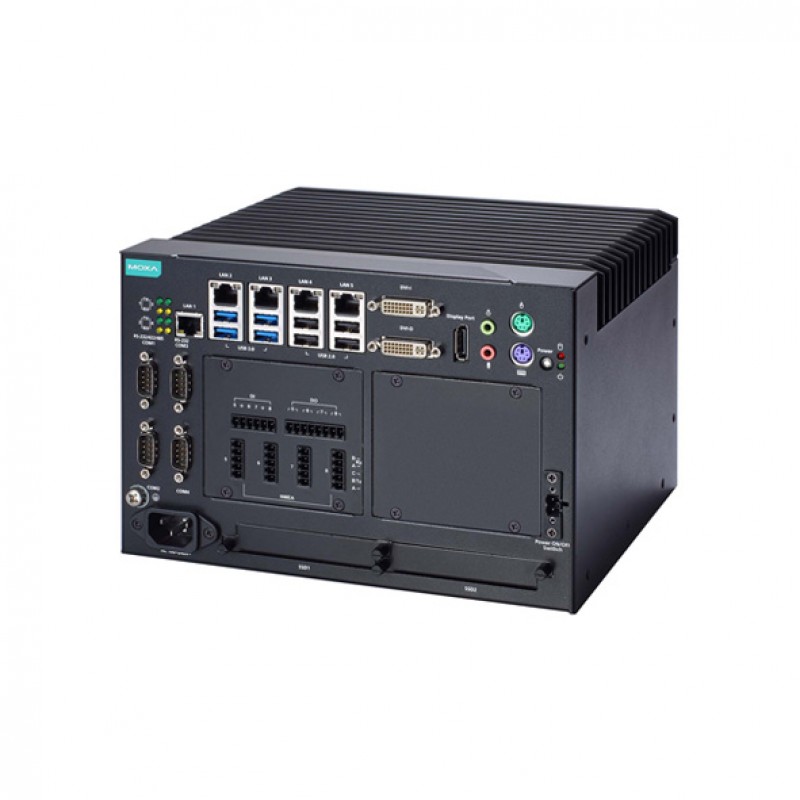

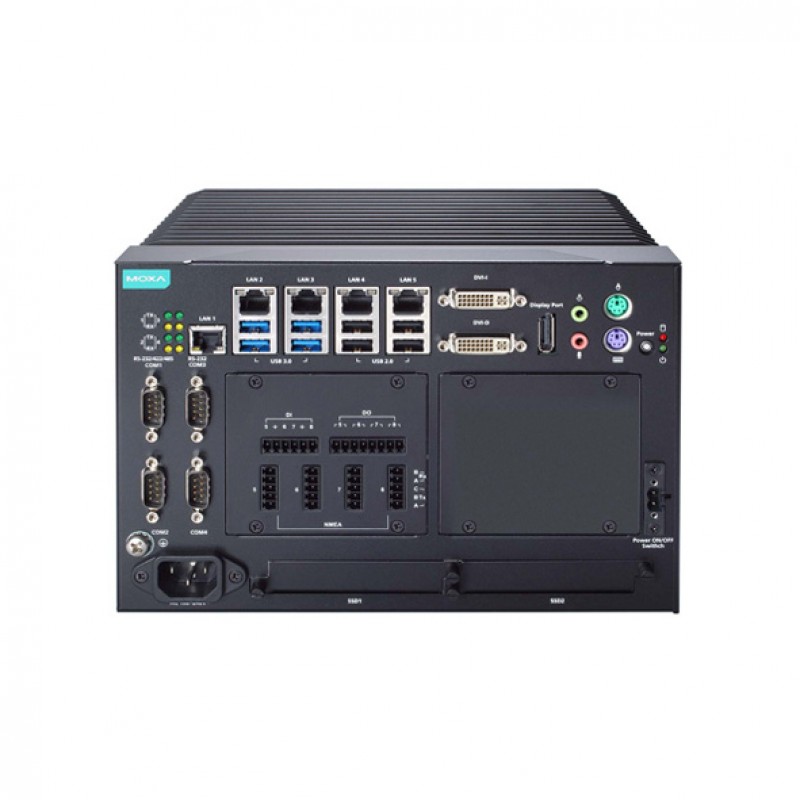

MOXA MC-7420-C1-DC Industrial Computer
- CPU: Intel® Celeron® Processor G3902E
- 5 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232 and 2 x RS-232/422/485 Serial ports
- 4 x DIs and 4 x DOs, 4 x NMEA Ports
- Metal body design
- 24 VDC input power range
- -20 to 55°C operating temperature range
Description
The MC-7400 Series marine computers are powered by the 6th
generation Intel® Core™ i5/i7 processor, delivering a full range of I/O
connectivity, including NMEA 0183 ports, serial ports, Gigabit Ethernet ports,
as well as USB 2.0/3.0 ports and a miniPCI slot for extensions. The MC-7400 is
designed to provide outstanding PC performance, bringing a new level of
flexibility and control to marine applications.
Proactive Monitoring Function
Moxa Proactive Monitoring is a small-footprint,
resource-friendly, easy-to-use utility that allows users to track a number of
system parameters. Users can view the current parameter values for these key
parts by simply clicking on the icons corresponding to the parameters in the
user interface. User-defined key part indicators (KPIs) are used to monitor the
computer’s key parts. Visible and/or audio alerts are triggered automatically
via relay and SNMP traps when these KPIs exceed their preset threshold values,
making it extremely convenient for operators to avoid system downtime by
setting up predictive maintenance tasks well in advance.
You can also find the MC-7420-C1-AC and the MC-7420-C5-DC models in Compact/Fanless Computers.
Explore our extensive range of industrial automation
products such as MOXA MC-7420-C1-DC Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz) |
| Supported OS | Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA, Linux Debian 9 (Note: OS available by CTOS) |
| OS (pre-installed) | - |
| System Memory | SODIMM DDR4 slot x 2 |
| Graphics Controller | Intel® HD Graphics 510 |
| Storage Slot | 2.5" HDD/SSD slots x 2 |
| Interface | |
| LAN | 5 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232 ports (DB9 male), 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 5 x USB 2.0 hosts, type-A connectors, 4 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | 1 x Mini PCIe |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| LED Indicators | |
| System | Power x 1, Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 24 VDC |
| Input Current | - |
| Power Consumption | 100 W |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | - |
| Physical Characteristics | |
| Dimensions | 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in) |
| Housing | Metal |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -30 to 60°C (-22 to 140°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Maritime: IEC 60945; Safety: CE, IEC 62368-1, UL 60950-1; Radio Frequency: FCC; EMC: EN 55032/24; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; |
| Weight | 6000 g (13.23 lb) |
| Mounting | Wall mounting |
