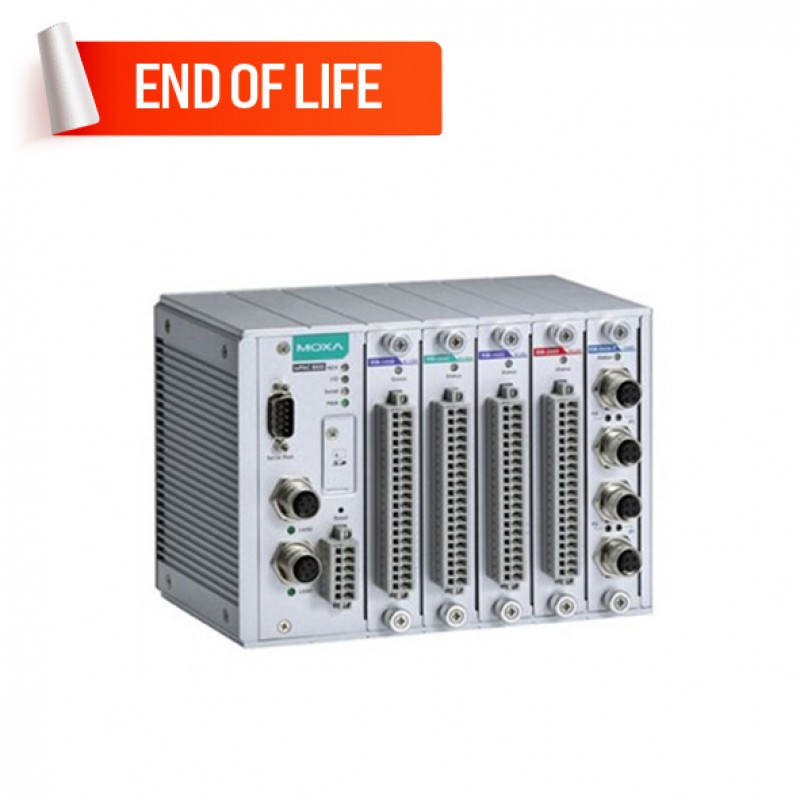

MOXA ioPAC 8020-5-RJ45-T Modular RTU Controller

  • CPU: 32-bit Arm9 160 MHz
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 3-in-1 Serial port: RS-232, RS-422, or RS-485
  • Control Logic Language: C/C++
  • Metal body design
  • 12 to 36 VDC dual power inputs
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature range

Description

turdy and dependable, ioPAC 8020 Series modular controllers are an ideal solution for rolling stock and trackside applications. This series tolerates temperature extremes from -40 to 75°C, is enclosed in a sealed metal casing, and is compliant with EN 50121-3-2, EN 50121-4, and relevant sections of the EN 50155 anti-vibration standard. The ioPAC 8020 Series also features a Linux/GNU platform adapted to data acquisition and condition monitoring. The main advantage of this open C platform is its user-friendly SDK, which helps economize on installation and configuration overhead by reducing your programming workload for key areas, including I/O control and condition monitoring, SCADA/DB interoperability, and improving smart communication controls.

The ioPAC-8020 Series has a 2-port Ethernet switch that allows system integrators to easily build control networks with open Ethernet standards and daisy-chain topologies. Built-in dual power inputs ensure nonstop data transfer to the controller and uninterrupted communications management on the control network. For train-related applications, spring-type terminal blocks and optional M12 Ethernet connectors deliver reliable operations in high-vibration environments. In addition, a rich selection of hot-swap I/O and communication modules is available for any combination of device applications.


End of Life Product - Replacement Available

Please note that the ioPAC 8020 Series has been phased out and replaced by the ioPAC 8600 Series.


You can Buy the MOXA ioPAC 8020-5-RJ45-T Modular RTU Controller via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

COMPUTER
CPU 32-bit Arm9 160 MHz
OS Linux
Clock Real-time clock with battery backup
RAM SDRAM: 64 MB, Flash: 32 MB (10 MB reserved for user)
MicroSD Slot Up to 32 GB (SD 2.0 compatible)
CONTROL LOGIC
Language C/C++
ETHERNET INTERFACE
LAN Ports 2 x 10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
SERIAL INTERFACE
No. of Ports 3-in-1 Port: RS-232, RS-422, or RS-485)
Serial Standards RS-232/422/485
Connector -
Serial Communication Parameters Data Bits: 7, 8; Flow Control: RTS/CTS, XON/XOFF; Parity: Even, None, Odd; Stop Bits: 1, 2
Serial Signals -
POWER REQUIREMENTS
Power Consumption 184 mA @ 24 VDC
Input Voltage 12 to 36 VDC (Dual power inputs)
Power Connector Spring-type Euroblock terminal
SECURITY
Authentication
Encryption
Security
GENERAL
MTBF 690,214 hrs
Management BOOTP, DHCP Client, IPv4, SMTP, UDP, TCP/IP
Supported Protocols Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag); Serial: Modbus RTU Client (Master)
PHYSICAL CHARACTERISTICS
Housing Metal
Dimensions 190.9 x 135 x 100 mm (7.52 x 5.31 x 3.94 in)
Weight 2,000 g (4.41 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332
Altitude -
