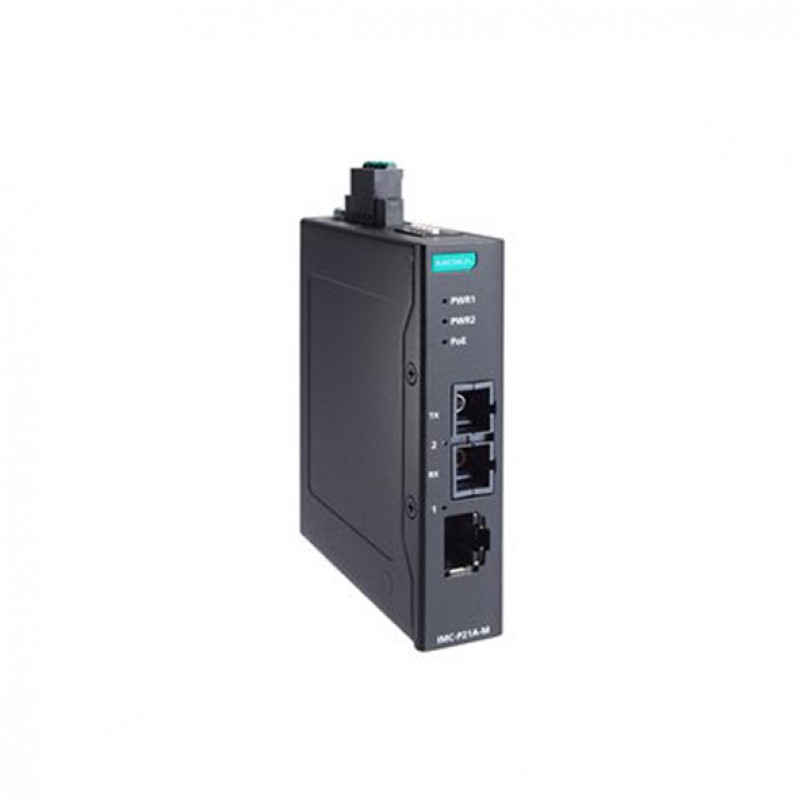

MOXA IMC-P21A-G2-M-SC Ethernet to Fiber Converter

  • 1 x PoE Port (10/100BaseT(X), RJ45 connector)
  • 1 x 100BaseFX Port (multi-mode SC connector)
  • 2 KM / 5 KM Typical data transmission distance on fiber
  • IP40-rated Metal body design
  • 44 to 57 VDC Redundant dual power inputs
  • DIN-rail mounting
  • -10 to 60°C operating temperature range

Description

IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are designed to provide reliable and stable 10/100BaseT(X)-to-100Base-FX media conversion. These converters are classified as power source equipment (PSE) and are used to directly power up powered devices (PDs), eliminating the need for additional wiring.

The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters provide up to 30 watts of power for the PoE+ port in standard mode and allow a high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The IMC-P21A-G2 media converters are highly versatile and, with SC or ST fiber ports, can transmit data with high EMI immunity for up to 40 km from the device to the control center.

The PoE+ Fast Ethernet-to-fiber media converters support a variety of useful functions, as well as PoE diagnostics, Link Fault Pass-through, store-and-forward mode, and pass-through mode. The IMC-P21A-G2 converters support IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDI-X autosensing, providing a complete solution for your industrial Ethernet networks.



You can also find the IMC-P21A-G2-M-ST and IMC-P21A-G2-S-SC models in the Industrial Media Converters.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA IMC-P21A-G2-M-SC Ethernet to Fiber Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports
10/100Mb (Megabit) POE Ports : 1 Port (RJ45 connector)
10/100/1000Mb (Gigabit) POE Ports
100Mb Fiber optic multi mode (Megabit) Ports : 1 SC Port
1000Mb Fiber optic multi mode (Gigabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
1000Mb Fiber optic single mode (Gigabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
M12 port
Alert Output
Magnetic Isolation Protection 1.5 kV (built-in)
Standards and protocols
Protocols and work standards IEEE 802.3/802.3u/802.3x
General
Maximum cable length for data transfer 2 KM / 5 KM with multi-mode fiber optic cable
MTBF 6,708,861 hrs
Power Requirements
Input Voltage 44 to 57 VDC (PoE+ output: > 52 VDC recommended, PoE output: > 44 VDC recommended)
Input Current -
Overload Current Protection Supported
Type of power input -
Power Consumption Max 828 mA
Physical Characteristics
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Freefall: ISTA 1A; IP40 (with I/O modules attached); Telcordia SR332
Housing Metal
Dimensions 90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in)
Weight 212 g (0.47 lb)
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Installation DIN-rail mounting
