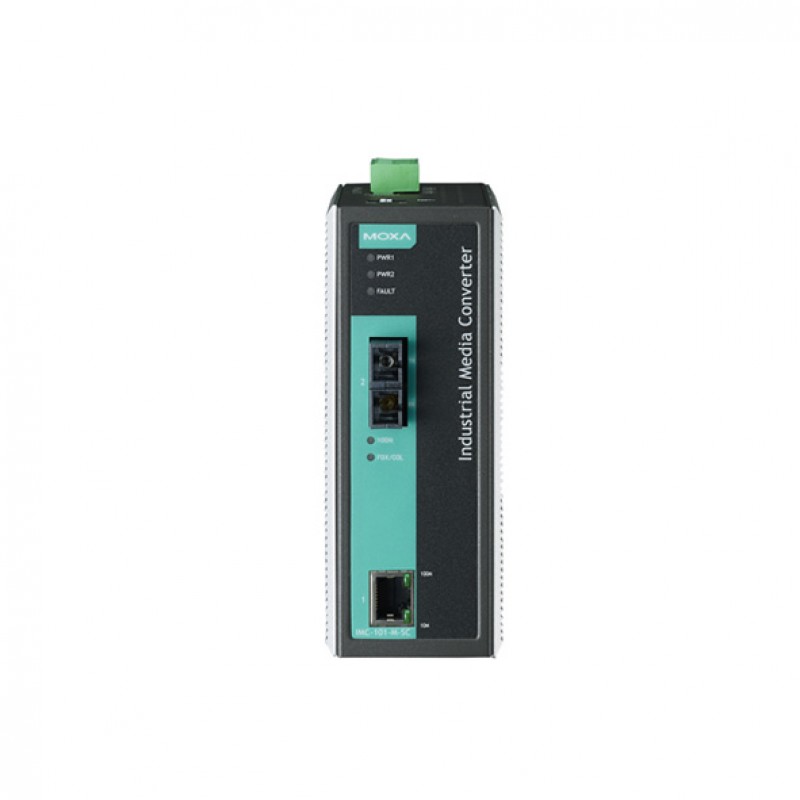

MOXA IMC-101-S-SC Ethernet to Fiber Converter
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x 100BaseFX Port (single-mode SC connector)
- 40 KM Typical data transmission distance on fiber
- 12 to 45 VDC input power range
- IP30-rated Metal body design
- DIN-rail mounting
- 0 to 60°C operating temperature
- Brand: MOXA
- Product Code: IMC-101-S-SC
.png)
Description
The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converter’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification) and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.
You can also find the IMC-101-M-SC, IMC-101-M-ST-T, and IMC-101-M-ST models in the Industrial Media Converters.
Experience the convenient way to purchase the MOXA IMC-101-S-SC Ethernet to Fiber Converter in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | - |
| General | |
| Maximum cable length for data transfer | 40Km on the fiber |
| MTBF | 401,000 hour |
| Power Requirements | |
| Input Voltage | 12 to 45 VDC |
| Input Current | 200 mA @ 12 to 45 VDC |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | 200 mA @ 12 to 45 VDC |
| Physical Characteristics | |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2; Maritime: DNV; IP30; MIL-HDBK-217F |
| Housing | Metal |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g (1.39 lb) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
