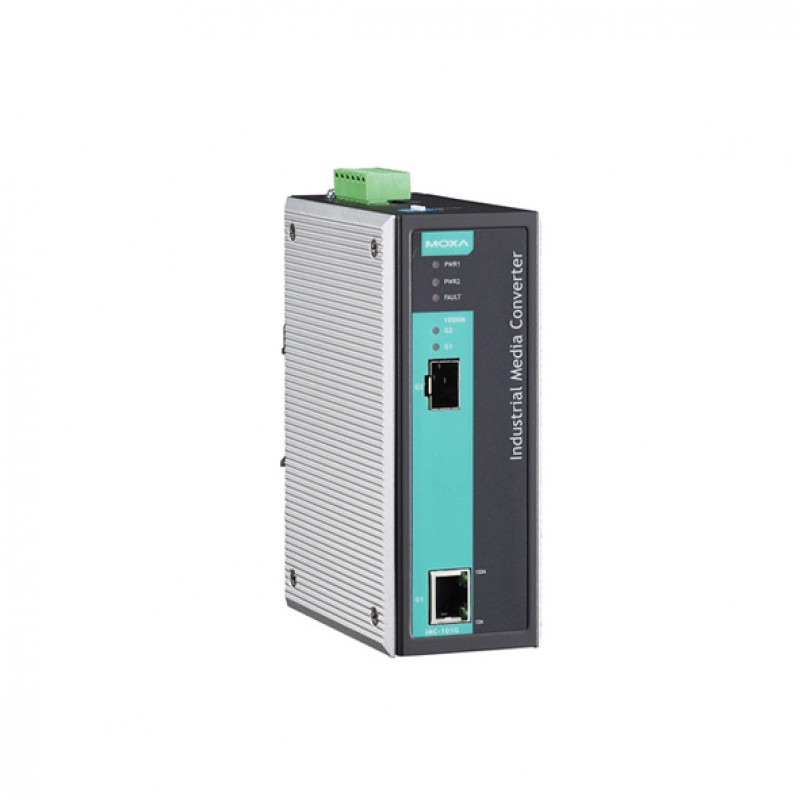

MOXA IMC-101G-T Ethernet to Fiber Converter
- 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 1 x 1000 Mbps fiber (SFP connector)
- 12 to 45 VDC input power range
- Metal body design
- DIN-rail mounting
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: IMC-101G-T
Description
The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.
You can also find the IMC-101G-IEX, IMC-101G, and IMC-101G models in the Industrial Media Converters.
Enjoy the ease of online
inquiries for the MOXA IMC-101G-T Ethernet to Fiber Converter. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 1 Port |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 1 Port |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | - |
| General | |
| Maximum cable length for data transfer | - |
| MTBF | 500,540 hour |
| Power Requirements | |
| Input Voltage | 12 to 45 VDC |
| Input Current | 200 mA @ 12 to 45 VDC |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | 200 mA @ 12 to 45 VDC |
| Physical Characteristics | |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Telcordia (Bellcore), GB |
| Housing | Metal |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 630 g (1.39 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
