Description

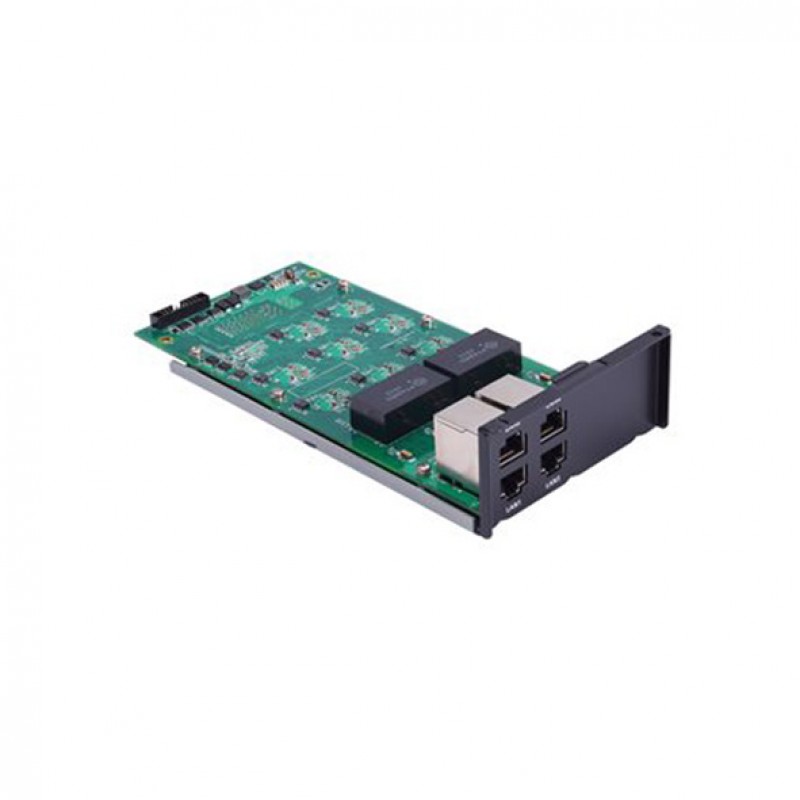

DA-720-Ethernet peripheral expansion modules include a
4-port Giga LAN module, an 8-port Giga LAN module, and a PRP/HSR module for
setting up industrial communication applications with Ethernet-based devices.
All modules are designed to offer the greatest flexibility for setting up
applications and performing industrial tasks.
The PRP-HSR expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With dual Gigabit Ethernet port design, the DA-PRP-HSR module provides high performance for redundant network systems. Moxa’s DA-720 Series industrial computer with the DA-PRP-HSR module installed is the ideal solution for power substation automation and process automation systems.
You can also find DE-LN08-RJ and DE-PRP-HSR-EF models in the Wide Temperature Computers.
Enjoy the ease of online
inquiries for the MOXA DE-LN04-RJ Ethernet Expansion Module. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 4 x 10/100/1000BaseT(X) Ports |
| Connector | RJ45 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 213.31 x 95 mm (8.398 x 3.74 in) |
| Weight | 335 g (0.74 lb) |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | - |
| Standards and Certifications | Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| MTBF | 2,126,091 hrs |
