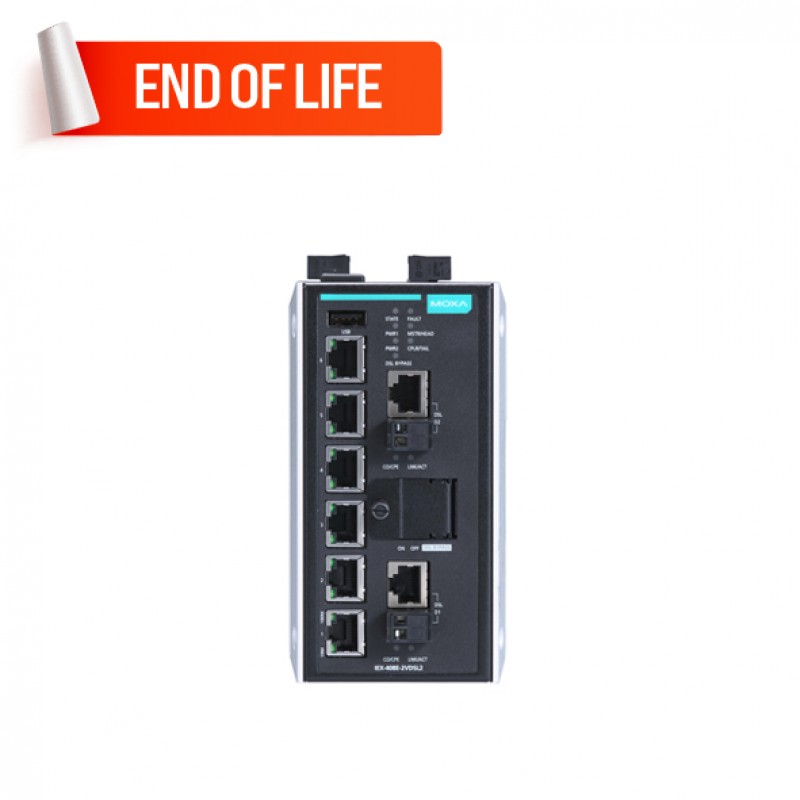

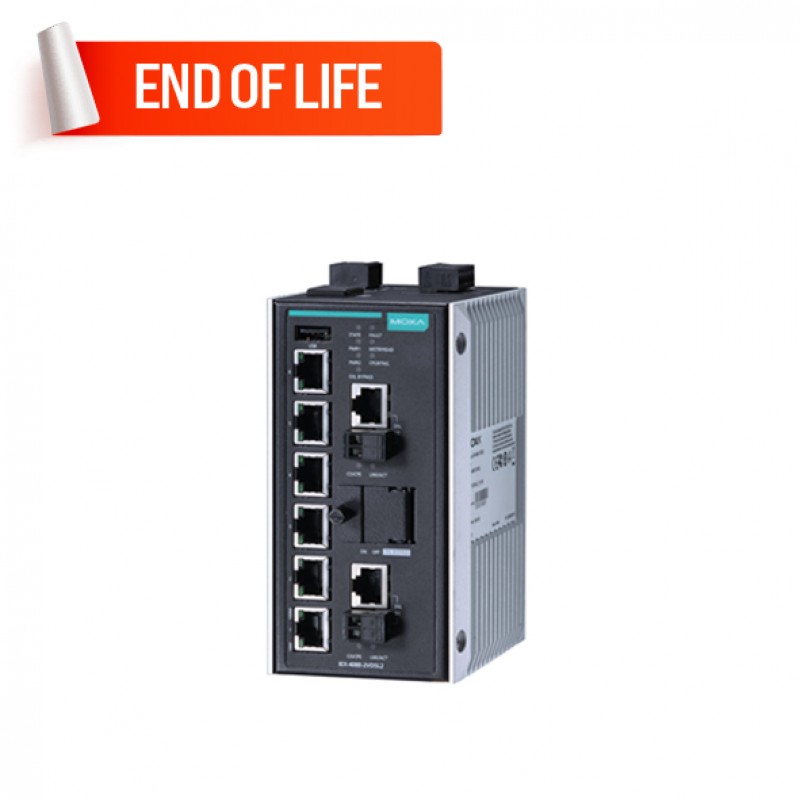

MOXA IEX-408E-2VDSL2-HV Industrial Managed Ethernet Extender Switch
- 6 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x Combo Ports, RJ-11 (RJ45 connector) or Detachable 2-Contact Terminal Block
- 110 to 220 VDC/VAC Redundant dual power inputs
- IP30-rated Metal body design
- ITU G.993.2 for very high speed digital subscriber line transceivers
- DIN-rail and Wall mount installation
- -10 to 60°C operating temperature range
.png)
Description
The IEX-402 is an
entry-level industrial managed Ethernet extender designed with one
10/100BaseT(X) and one DSL port. The Ethernet extender provides a
point-to-point extension over twisted copper wires based on the G.SHDSL or
VDSL2 standard. The device supports data rates of up to 15.3 Mbps and a long
transmission distance of up to 8 km for G.SHDSL connection; for VDSL2
connections, the data rate supports up to 100 Mbps and a long transmission
distance of up to 3 km.
The IEX-402 Series is
designed for use in harsh environments. The DIN-rail mount, wide operating
temperature range (-40 to 75°C), and dual power inputs make it ideal for
installation in industrial applications. To simplify configuration, the IEX-402
uses CO/CPE auto-negotiation. By factory default, the device will automatically
assign CPE status to one of each pair of IEX devices. In addition, Link Fault
Pass-through (LFP) and network redundancy interoperability enhance the
reliability and accessibility of communication networks. In addition, advanced
managed and monitored functionality through MXview, including a virtual panel, improves
the user experience for quick troubleshooting.
End of Life Product - No
Replacement
Please note that the
IEX-408E Series has been phased out. You can explore the DIN-Rail Ethernet Switches, EN50155 Ethernet Switches, IEC 61850-3 Ethernet Switches, and Rackmount Ethernet Switches in the Industrial Ethernet Switches.
Explore our extensive
range of industrial automation products such as MOXA IEX-408E-2VDSL2-HV Industrial Managed Ethernet Extender Switch in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales experts
will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 6 Ports (Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection) |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Combo Ports, RJ-11 (RJ45 connector) or Detachable 2-Contact Terminal Block, 1 x Alarm Contact Channel (Resistive load: 1 A @ 24 VDC), 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.097/0.05 A @ 110/220 VDC, 0.23/0.149 A @ 110/220 VAC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VDC/VAC |
| Operating Voltage | 88 to 300 VDC, 85 to 264 VAC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 782,910 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | - |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 74 x 111 x 135 mm (2.91 x 4.37 x 5.32 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 61010-2-201, EN 60950-1 (LVD); EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Power Substation: IEC 61850-3, IEEE 1613; Traffic Control: NEMA TS2; Railway: EN 50121-4; Freefall: IEC 60068-2-31; Vibration IEC 60068-2-6; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1260 g (2.78 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET, STP, MSTP, RSTP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | SNMPv1/v2c/v3, LLDP, Syslog, RMON, DHCP Server/Client, DHCP Option 66/67/82, Back Pressure Flow Control, BOOTP, Flow control, RARP, SMTP, SNMP Inform, Telnet, TFTP, 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
