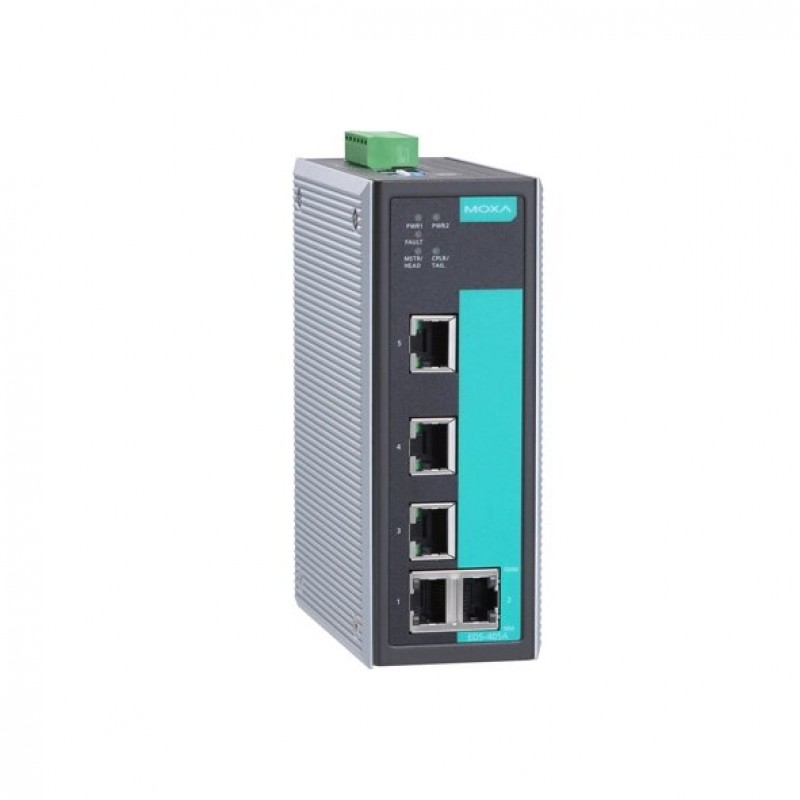

MOXA EDS-405A-PTP Managed Ethernet Switches
- IEEE 1588v2 PTP with hardware time stamping for precise time synchronization of networks
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by a web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MX studio for easy, visualized industrial network management
.png)
Description
The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.
You can also find the EDS-405A-T, EDS-405A-SS-SC, EDS-405A-MM-ST, and EDS-405A-MM-SC-T models in the EDS-405A series.
You can Buy the MOXA EDS-405A-PTP Managed Ethernet Switches via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| Console Port | RS-232 (RJ45 connector) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
| Software Features | |
| Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, DDM, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
| Redundancy Protocols | STP, RSTP, Turbo Ring v1/v2, Turbo Chain |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (hardware-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbit |
| Power Requirements | |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | 0.23 A @ 24 V |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Connection | 1 removable 6-contact terminal block |
| General | |
| MTBF | 1,354,590 hours |
| Physical Characteristics | |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Standards and Certifications | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.1Q for VLAN Tagging |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 820 g (1.81 lb) |
| IP Rating | IP30 protection |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: Signal: 3 V, IEC 61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
