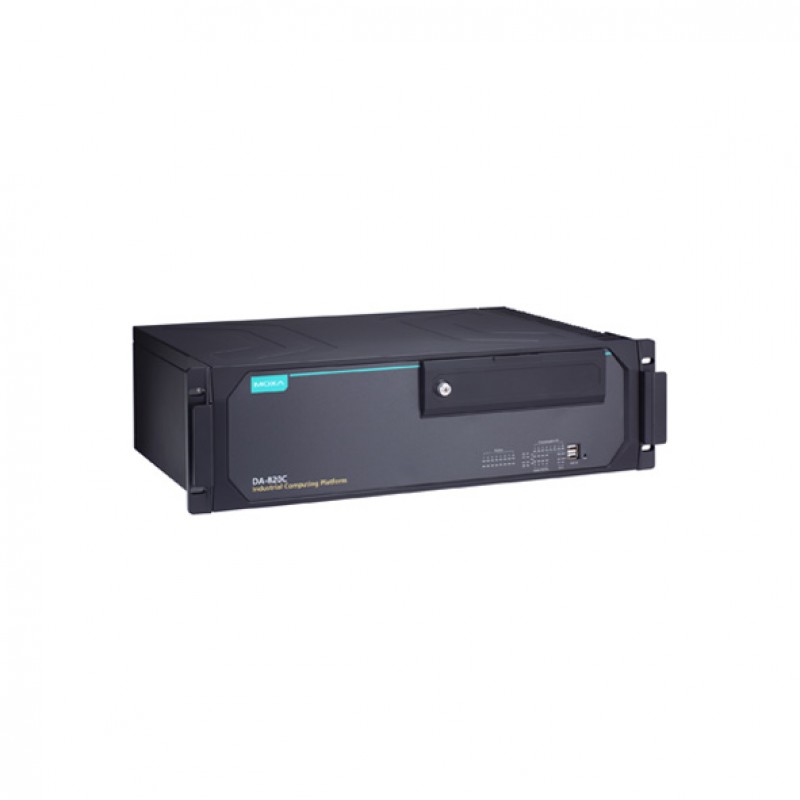

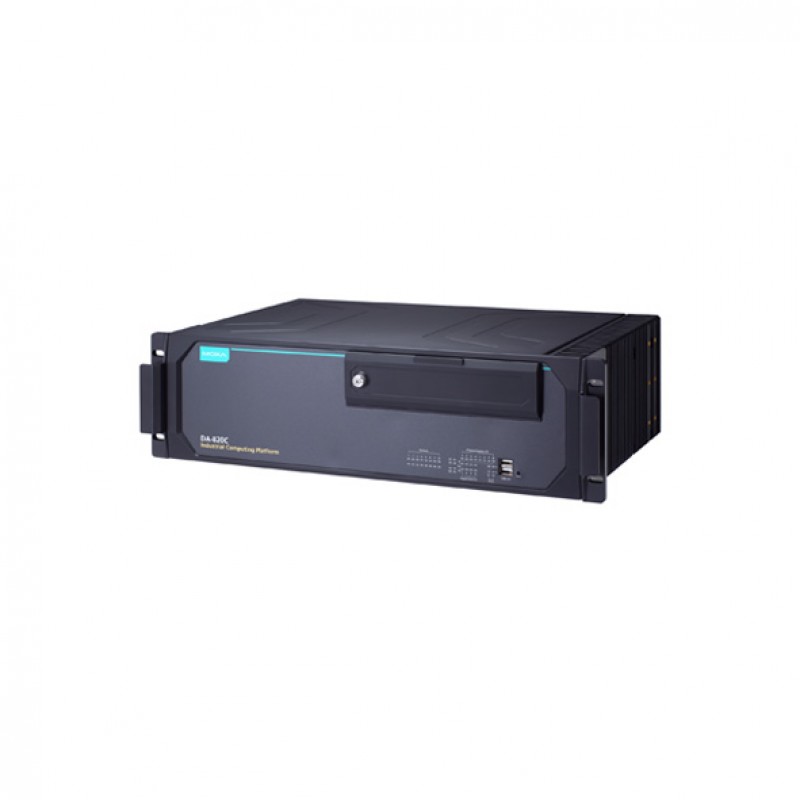

MOXA DA-820C-KL5-HH-T Wide Temperature Computer
- CPU: Intel® Core™ i5-7442EQ Processor
- 4 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232/422/485 Serial ports
- Metal body design
- 100 to 240 VAC/VDC dual power inputs
- Rackmount installation design
- -40 to 70°C operating temperature range
Description
The DA-820C Series is a high-performance 3U rackmount
industrial computer built around a 7th Gen Intel® Core™ i3/i5/i7 or Intel®
Xeon® processor and comes with 3 display ports (HDMI x 2, VGA x 1), 6 USB
ports, 4 gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports,
and 2 DO ports. The DA-820C is also equipped with 4 hot-swappable 2.5” HDD/SSD
slots that support Intel® RST RAID 0/1/5/10 functionality and PTP/IRIG-B time
synchronization.
The DA-820C complies with IEC-61850-3, IEEE 1613, IEC 60255,
and EN50121-4 standards to deliver stable and reliable system operations for
power applications.
IEC 60255 is one of the most widely used standards for the
protection of electrical relays in a smart substation. Compliance with the
standard ensures that the DA-820C will work reliably and seamlessly with IEDs
as part of a robust substation automation system.
EN 50121-4 compliance confirms that the DA-820C can deliver
stable and reliable system operations in rail wayside applications, such as
station SCADA systems, wayside disaster prevention, traction power, and
signaling and safety systems, to provide an integrated view of your smart rail
setup.
You can also find the DA-820C-KL5-H-T, DA-820C-KLXM-H, and DA-820C-KLXL-HH-T models in the Wide Temperature Computers.
You can Buy the MOXA DA-820C-KL5-HH-T Wide Temperature Computer via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i5-7442EQ Processor (6M Cache, up to 2.90 GHz) |
| Supported OS | Windows 10 IoT Enterprise LTSC 2021 64-bit, Windows 10 IoT Enterprise LTSC 2019 64-bit, Windows Server 2019, Linux Debian 11, Linux Debian 9 |
| OS (pre-installed) | - |
| System Memory | 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module) |
| Graphics Controller | Intel® HD Graphics 630 |
| Storage Slot | 2.5-inch HDD/SSD slots x 4, mSATA slots x 1, internal mini-PCIe socket |
| Interface | |
| LAN | 4 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 6 x Digital inputs, 2 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 ports, software selectable (DB9 male) |
| USB | 3 x USB 2.0 hosts, type-A connectors (2 ports on the front panel, 1 port inside the computer), 3 x USB 3.0 hosts, type-A connectors (3 ports on the rear panel) |
| Expansion Slot | PCIe x16 slot x 1, PCIe x4 slots x 1, PCIe x1 slots x 2, PCI slots x 1 |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 115.2 kbps |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Data+, Data-, GND |
| RS-485-2w | Tx+, Tx-, Rx+, Rx-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1, Programmable x 8 |
| LAN | 8 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 100 to 240 VAC, 100 to 240 VDC (Dual power inputs) |
| Input Current | 100 to 240 VAC, 50/60 Hz, 1.15 A (max), 100 to 240 VDC, 1.15 A (max) |
| Power Consumption | - |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 325,730 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/35; EMI CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Protection Relay: IEC 60255; Safety: IEC 60950-1, IEC 62368-1, UL 62368-1; Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 14,000 g (31.11 lb) |
| Mounting | 19-inch rack mounting |
