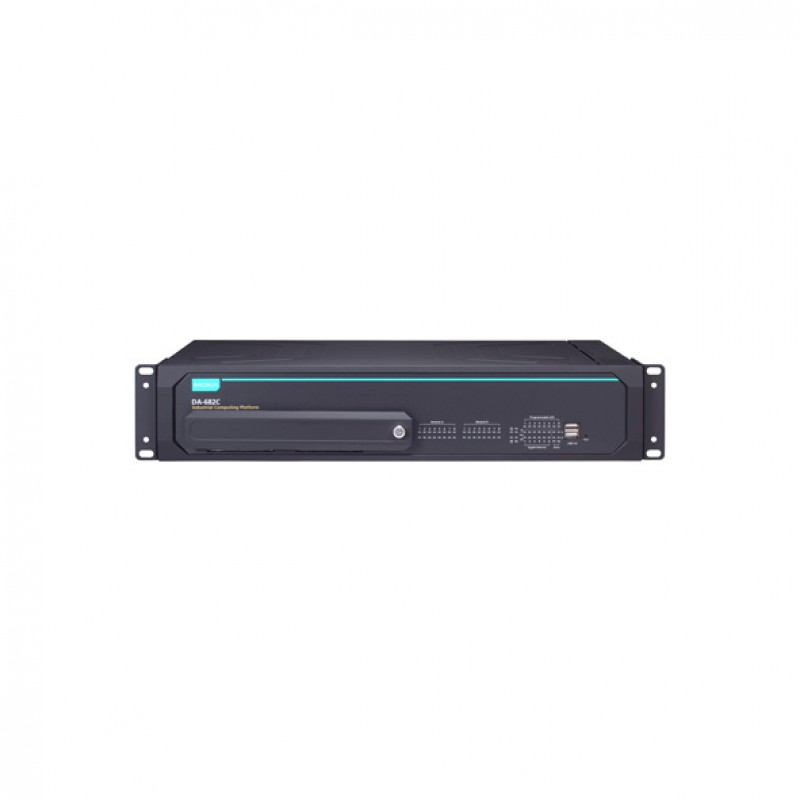

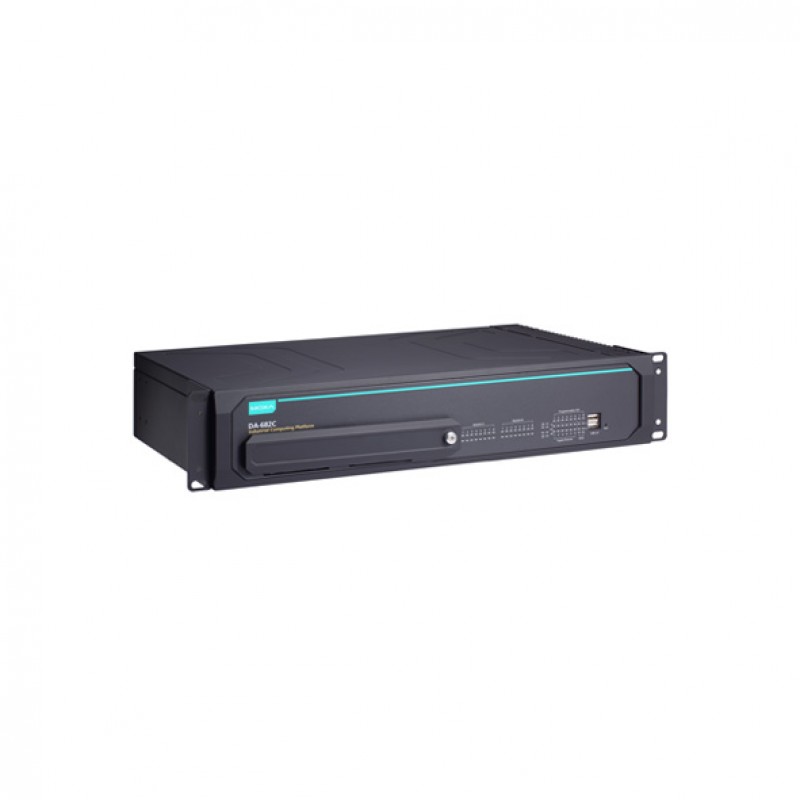

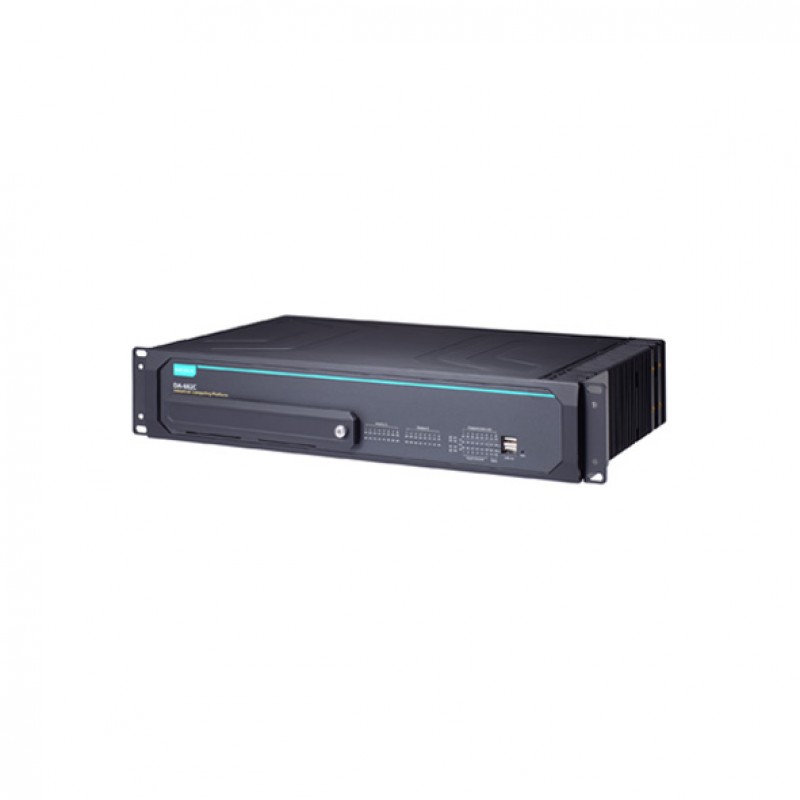

MOXA DA-682C-KL1-HH-T Rackmount Industrial Computer
- CPU: Intel® Celeron® 3965U Processor
- 6 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232/422/485 Isolated serial ports
- Metal body design
- 100 to 240 VAC/VDC dual power inputs
- Rackmount installation design
- -40 to 70°C operating temperature range
Description
The DA-682C computer is built around an Intel® Celeron® or
Intel® Core™ i3, i5, or i7 CPU and comes with dual display ports (2 x HDMI), 5
USB ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6
digital input ports, and 2 digital output ports. The DA-682C is equipped with 2
hot-swappable 2.5” HDD/SSD slots and supports the Intel® RST RAID 0/1
functionality.
Additional value and convenience are provided through a
modular design with two independent slots for flexible system integration and
expansion. Users have the option to add a variety of different communications
modules, including an 8-port RS232/422/485 module and a 4-port 10/100/1000 Mbps
LAN module.
With IEC 61850-3 and IEEE 1613 compliance, the DA-682C is
sure to deliver stable and reliable system operation for power applications. It
also complies with the IEC 60255 standard, which covers the protection of
electrical relays in a smart substation. IEC 60255 is one of the most widely
used standards for testing relays and protection equipment, and compliance with
the standard ensures that the DA-682C will work reliably and seamlessly with
IEDs as part of a robust substation automation system.
EN 50121-4 compliance confirms that the DA-682C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems to provide an integrated view of your smart rail setup. The housing is a standard 2U, 19-inch wide, rack-mountable rugged enclosure. This robust, rackmount design provides the hardened protection needed for industrial environment applications.
You can also find DA-682C-KL7-HH-T and DA-682C-KL5-HH-T models in the Wide Temperature Computers.
You can Buy the MOXA DA-682C-KL1-HH-T Rackmount Industrial Computer via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Computer | |
|---|---|
| CPU | Intel® Celeron® 3965U Processor (2M Cache, 2.2 GHz) |
| Supported OS | Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9 (OS available by CTOS) |
| OS (pre-installed) | - |
| System Memory | 32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module) |
| Graphics Controller | Intel® HD Graphics 630 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2, mSATA slots x 1 |
| Interface | |
| LAN | 6 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 6 x Digital inputs, 2 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 2 x RS-232/422/485 ports, software-selectable (terminal block) |
| USB | 3 x USB 2.0 hosts, type-A connectors (2 ports on the front panel, 1 port inside the computer), 3 x USB 3.0 hosts, type-A connectors (3 ports on the rear panel) |
| Expansion Slot | - |
| Serial Communication Parameters | |
| Baudrate | 300 bps to 115.2 kbps |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1, Programmable x 8 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | - |
| Input Current | (Dual power inputs) 100 to 240 VDC, 0.9 A (max), 100 to 240 VAC, 50/60 Hz, 0.9 A (max) |
| Power Consumption | - |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 365,750 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in) |
| Housing | Metal |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 300 A/m, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2; Safety: UL 60950-1, IEC 60950-1, UL 62368-1, IEC 62368-1; Protection Relay: IEC 60255; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 9,900 g (21.82 lb) |
| Mounting | 19-inch rack mounting |
