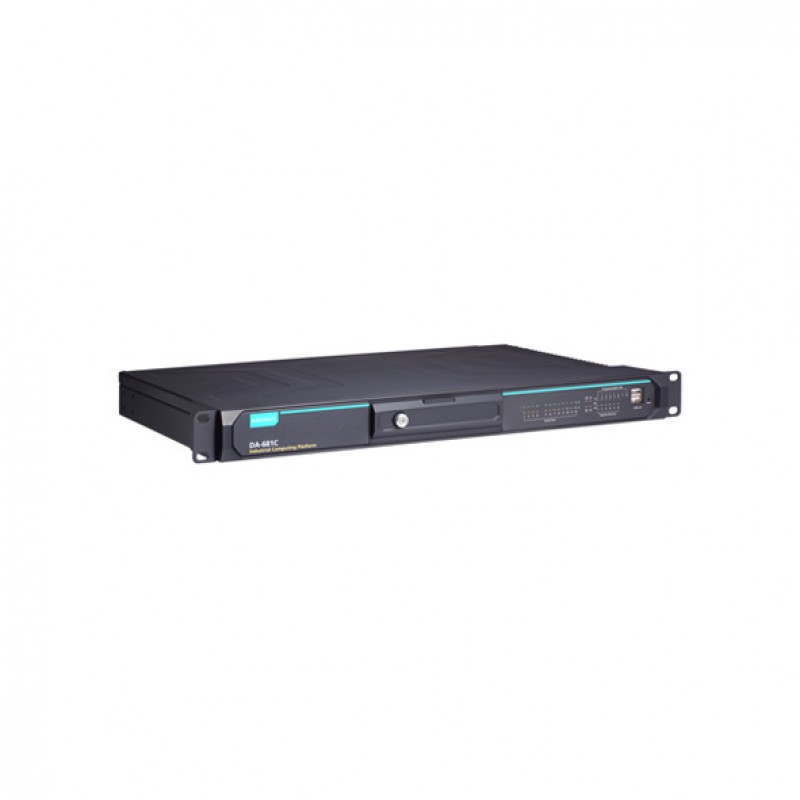

MOXA DA-681C-KL3-HH-T Rackmount Industrial Computer

  • CPU: Intel® Core™ i3-7100U Processor
  • 6 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232/422/485 and 10 x RS-485 Serial ports
  • Metal body design
  • 100 to 240 VAC/VDC Redundant dual inputs
  • Rackmount installation design
  • -40 to 70°C operating temperature range

Description

The DA-681C computer is built around an Intel® Celeron® or Intel® Core™ i3 CPU and comes with dual display ports (2 x HDMI), 5 USB ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 10 RS-485 serial ports, 6 digital input ports, and 2 digital output ports. Additionally, one 2.5” HDD/SSD slot and one mSATA slot are included to enable storage expansion for industrial applications that require large storage space for edge data acquisition.

With IEC 61850-3 and IEEE 1613 compliance, the DA-681C is sure to deliver stable and reliable system operation for power applications. EN 50121- 4 compliance confirms that the DA-681C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems, to provide an integrated view of your smart rail setup.


You can also find the DA-681C-KL1-H-T and DA-681C-KL1-HH-T models in the Wide Temperature Computers.


You can Buy the MOXA DA-681C-KL3-HH-T Rackmount Industrial Computer via inquiring online at competitive prices in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Computer
CPU Intel® Core™ i3-7100U Processor (2M Cache, 2.4 GHz)
Supported OS Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9 (OS available by CTOS)
OS (pre-installed) -
System Memory 32 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 16 GB maximum per module)
Graphics Controller Intel® HD Graphics 630
Storage Slot 2.5-inch HDD/SSD slots x 1, mSATA slots x 1
Interface
LAN 6 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection -
Digital Input/Output Channels 6 x Digital inputs, 2 x Digital outputs (Screw-fastened Euroblock terminal connector)
Serial Ports 2 x RS-232/422/485 ports, software selectable (DB9 male), 10 x RS-485 ports, software selectable (terminal block)
USB 3 x USB 2.0 hosts, type-A connectors (2 ports on the front panel, 1 port inside the computer), 3 x USB 3.0 hosts, type-A connectors (3 ports on the rear panel)
Expansion Slot -
Serial Communication Parameters
Baudrate 50 bps to 115.2 kbps
Data Bits -
Stop Bits -
Parity -
Flow Control -
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w -
RS-485-2w Data+, Data-, GND
LED Indicators
System Programmable x 8, Storage x 1, Power x 1
LAN 2 per port (10/100/1000 Mbps)
Serial 2 per port (Tx, Rx)
Power Requirements
Input Voltage -
Input Current (Dual power inputs) 100 to 240 VAC, 50/60 Hz, 1.6 A (max), 100 to 240 VDC, 0.8 A (max)
Power Consumption -
General
Alert Tools -
Automatic Reboot Trigger -
MTBF 285,419 hrs
Physical Characteristics
Dimensions 440 x 316 x 44 mm (17.32 x 12.44 x 1.73 in)
Housing Metal
Operating temperature -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Protection Relay: IEC 60255; Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2; Safety: UL 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Weight 9,900 g (21.82 lb)
Mounting 19-inch rack mounting
