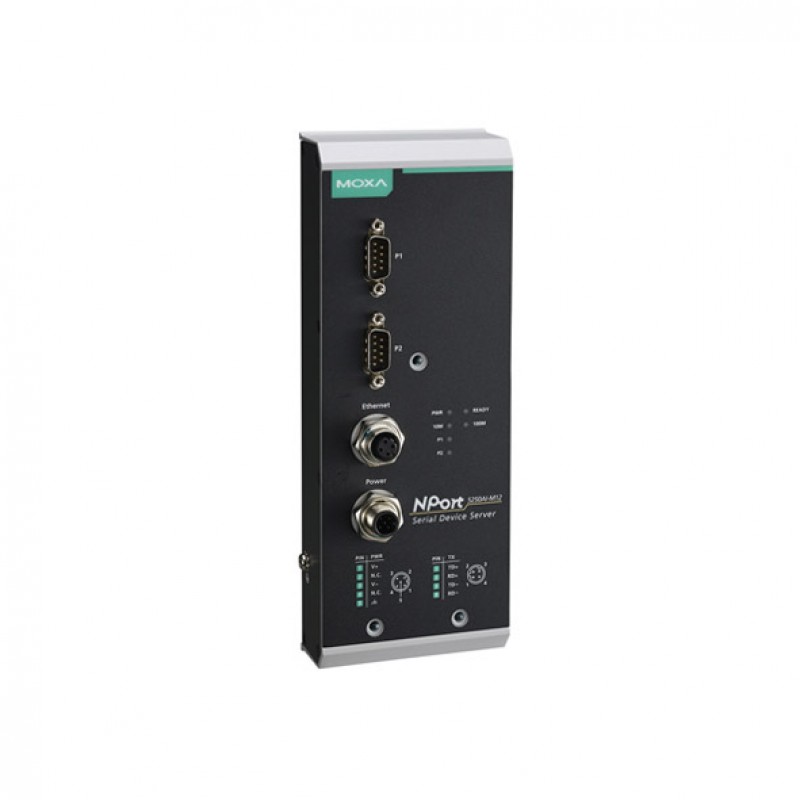

MOXA NPort 5250AI-M12-CT-T Serial to Ethernet Device Server

  • Serial to Ethernet Converter
  • 1 10/100 Mbps Ethernet port with M12-F connector and 2 RS 232/422/485 serial ports
  • An additional coating on the board, to prevent the penetration of moisture and fluids
  • Power Input 12V DC to 48V DC
  • Suitable for work in a wide range of temperatures

Description

The NPort 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.

NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.


You can place an order for the MOXA NPort 5250AI-M12-CT-T Serial to Ethernet Device Server, which is applicable in the Factory Automation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Interface
10Mbps RJ-45 Ports
10/100Mb RJ45 (Megabit) Ports
RS-232 Ports
RS-422/485 Ports
RS-232/422/485 Ports : 2 Ports
Serial port specifications
Serial connection type DB9-M
Serial Communication Parameters Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark and Baudrate : 50 bps to 921.6 kbps
Flow Control RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Data transfer speed ( Baudrate ) 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge : Contact: 6 kV , Air: 8 kV
Electrical isolation : 2KV
Communication details
Wireless Standards
Maximum data transfer speed
Maximum direct range
General
Management Web Console, Serial Console, Telnet Console, Windows Utility
MTBF 639622 hour
Compatible operating systems Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
Interface
Other ports : 1 10 / 100Mbps Ethernet port with M12 D-coded 4-pin female connector
Power Requirements
Power Consumption (Output Adapter) 12V DC, 0.36A to 48V DC
Security
Security -
Encryption -
Features and capabilities
Display
Keyboard
The automatic restart (reset) : WDT
Alarm feature : Buzzer and RTC
Standards and protocols
Network protocol ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP, LLDP
Data transfer protocol -
Physical Characteristics
Dimensions 80x216.6x52.9mm
Safety UL 60950-1
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD, IEC 61000-4-3 RS, IEC 61000-4-4 EFT, IEC 61000-4-5 Surge, IEC 61000-4-6 CS, IEC 61000-4-8 PFMF, IEC 60068-2-6
Marine
Medical
Rail Standard EN 50155 (essential compliance*), EN 50121-4
LAN port Protection against magnetic fields
Housing Metal
Operating Temperature -40 to 75 ° C
Storage Temperature -40 to 85 ° C
Altitude -
Operation Humidity 5% to %95 non-condensing
Weight 0.686Kg
