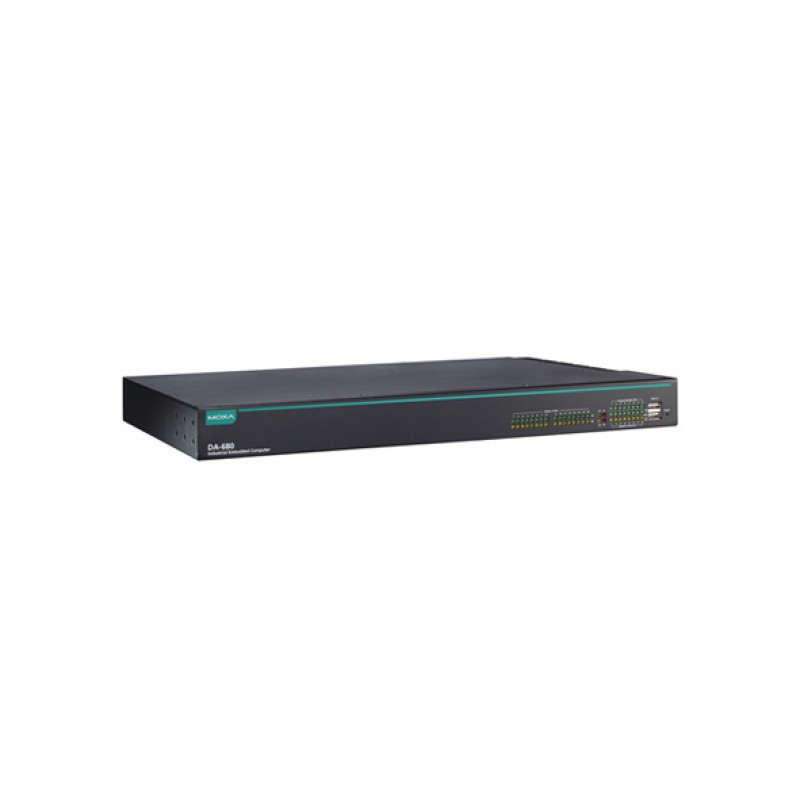

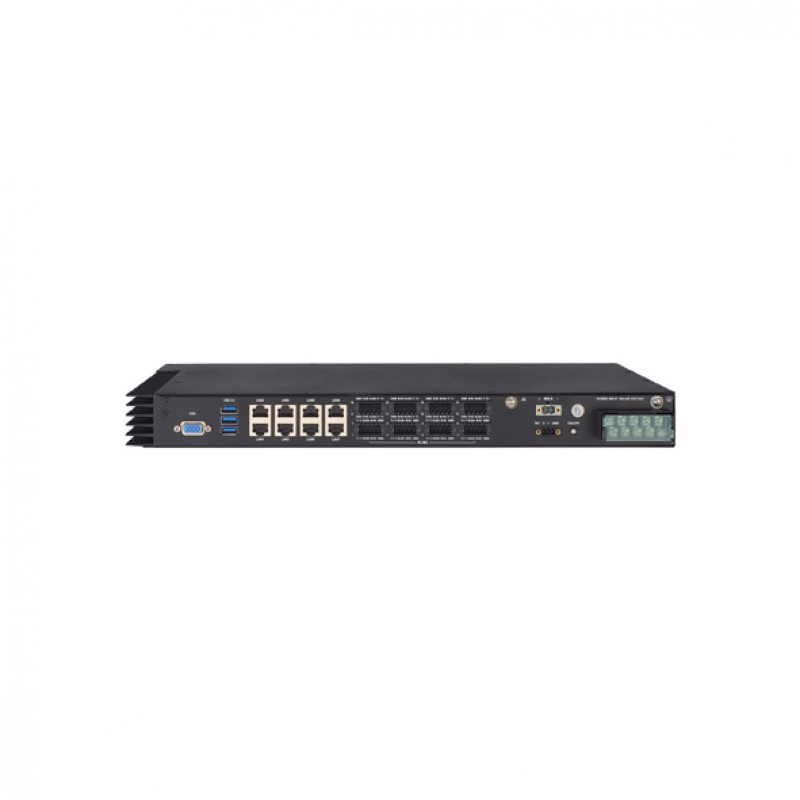

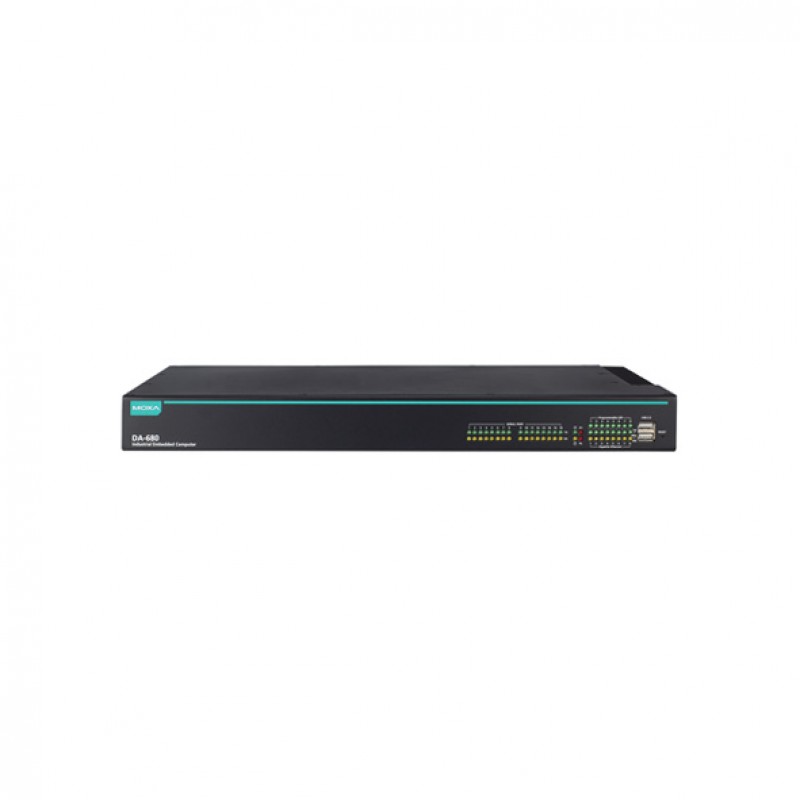

MOXA DA-680-I-8-WL3-H Rackmount Industrial Computer
- CPU: Intel® Core™ i3-8145UE Whiskey Lake
- 8 x 10/100/1000 Mbps Ethernet ports
- 8 x RS-485 2-wire / 4-wire Serial ports
- 100 to 240 VAC/VDC input power range
- Rackmount installation design
- Metal body design
- -20 to 55°C operating temperature range
Description
The DA-680 computer is built around an Intel® Core™ i3
processor and comes with 8 Gigabit Ethernet ports, 1 VGA port, 8/16 isolated
RS-485 serial ports, and 5 USB ports. Additionally, one 2.5” HDD/SSD slot and
one mSATA slot are included to enable storage expansion for industrial
applications that require large storage space for edge data acquisition. With
IEC 61850-3, IEEE 1613, and IEC 60255 compliance, the DA-680 is sure to deliver
stable and reliable system operation for power applications.
You can also find the DA-680-I-16-WL3-HH, DA-680-I-16-WL3-H, and DA-680-I-8-WL3-HH models in the Wide Temperature Computers.
Easy World Automation offers the easiest way to buy the MOXA DA-680-I-8-WL3-H Rackmount Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i3-8145UE Whiskey Lake processor |
| Supported OS | Windows 10 IoT Ent 2021 LTSC, version 21H2, Linux Debian 11, Ubuntu 20.04, CentOS 7.9 |
| OS (pre-installed) | - |
| System Memory | 16 GB max |
| Graphics Controller | Intel® UHD Graphics 620 |
| Storage Slot | 2.5-inch HDD/SSD slots x 1, mSATA slots x 1 |
| Interface | |
| LAN | 8 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 2 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 8 x 2-wire RS-485/4-wire RS-485 (terminal block) |
| USB | 2 x USB 2.0 hosts, type-A connectors (2 ports on the front panel, 1 port inside the computer), 3 x USB 3.0 hosts, type-A connectors (3 ports on the rear panel) |
| Expansion Slot | - |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbp |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Programmable x 6, Storage x 1, Power x 1, Power Fail x 2, (Power Fail 1/2) |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 100 to 240 VAC, 50/60 Hz, 1.05 A (max), 100 to 240 VDC, 0.7 A (max) |
| Power Consumption | - |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 238,154 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 335.5 x 44 mm (17.32 x 13.21 x 1.73 in) |
| Housing | Metal |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100 A/m at 50 Hz, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Protection Relay: IEC 60255; Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2; Safety: UL 62368-1, IEC 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 4659.5 g (10.27 lb) |
| Mounting | 19-inch rack mounting |
