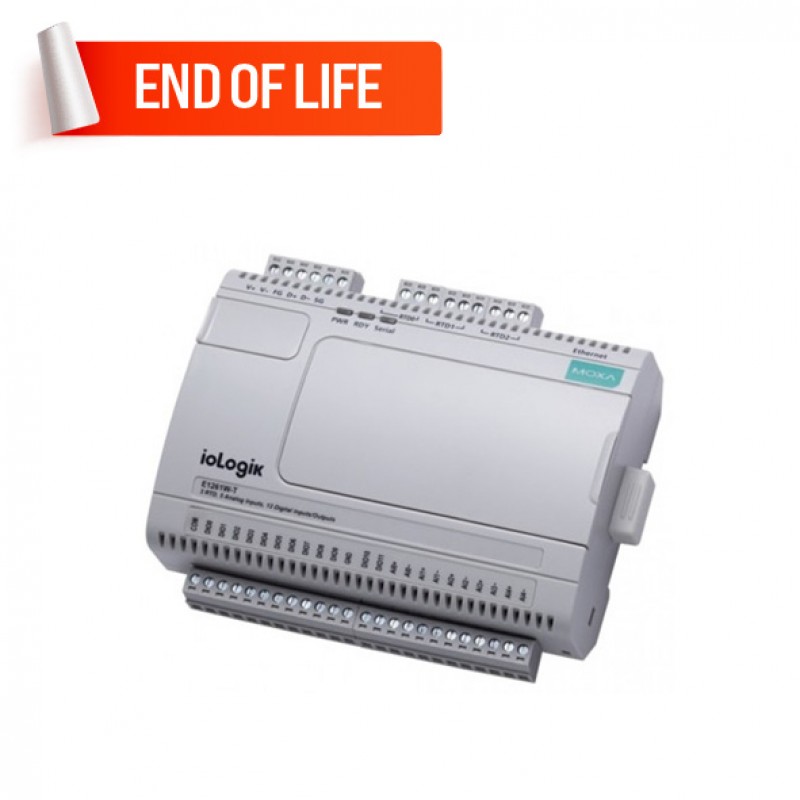

MOXA ioLogik E1261W-T Ethernet Remote I/O
- 5 x Analog Input Channels, 12 x Configurable DIO Channels
- 3 x RTD Channels (Spring-type Euroblock terminal connector)
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-485 Serial port (Terminal block connector)
- Plastic body design
- 12 to 36 VDC input power range
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature range
- Brand: MOXA
- Product Code: ioLogik E1261W-T
Description
Moxa’s ioLogik E1200W Series is designed for Ethernet-based remote condition monitoring systems. With 3 RTD, 5 AI, and 12 DIO channels, it features an I/O combination that is ideal for monitoring wind turbines and environmental conditions. Unlike other remote I/O products, which are passive and must poll for data, the ioLogik E1200W Series supports active communication with Moxa’s patented Active OPC Server to seamlessly connect with SCADA systems in real-time. This report-by-exception approach, which is new to PC-based monitoring requires far less bandwidth than traditional polling methods.
Push Technology for Events
When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.
End of Life Product - Replacement Available
Please note that the ioLogik E1200W Series has been phased out and replaced by the ioThinx 4510 Series.
You can Buy the MOXA ioLogik E1261W-T Ethernet Remote I/O via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| Digital Input and Output | |
| Adjustable digital input and output | : 12 x Channels |
| Analog Input and Output | : 5 x Analog Input Channels |
| Relays | |
| Thermal sensor input (RTD) | : 3 x Channels |
| Thermocouple input | |
| LAN | : 1 x 10/100BaseT(X) Port (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial port | : 1 Port |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Serial Communication Parameters | Baudrate: 1200 bps to 115.2 kbps; Data Bits: 8; Flow Control: None; Stop Bits: 1 |
| Serial Signals | RS-485-2w: Data+, Data-, GND |
| Security | |
| Security Functions | - |
| Standards and protocols | |
| Protocols | Ethernet: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library; Serial: Modbus RTU Server (slave) |
| General | |
| Compatible Softwares | ioSearch utility, MXIO library, MX-AOPC UA Suite |
| Management | BOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP |
| MTBF | 367,508 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 36 VDC |
| Power Consumption | 143 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | PWR, RDY, Serial |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 115 x 79 x 40.4 mm (4.53 x 3.11 x 1.59 in) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 250 g (0.55 lb) |
| Altitude | 2000 m |
