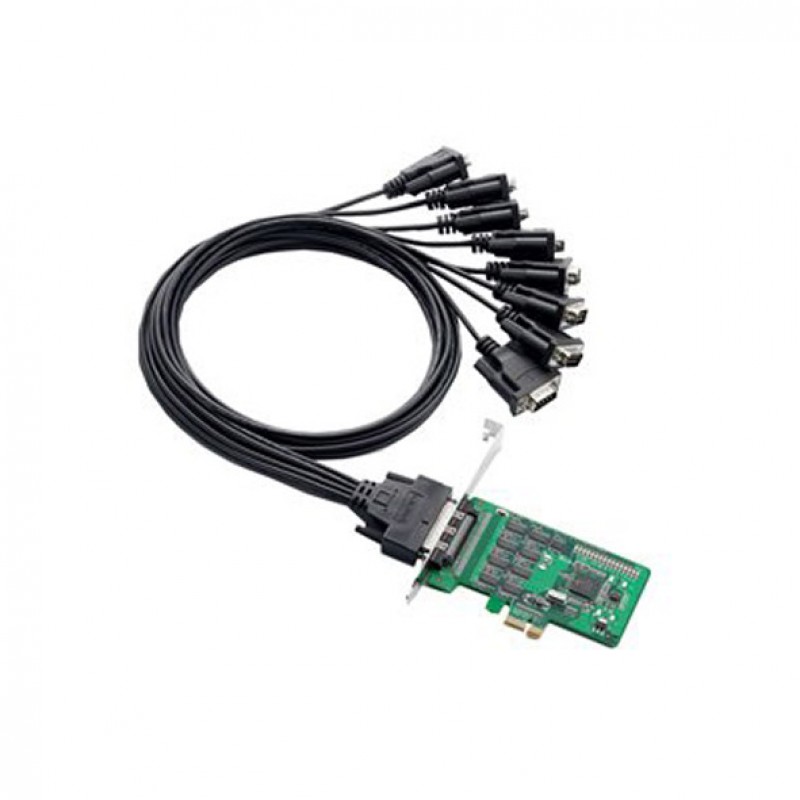

MOXA CP-168EL-A w/o Cable PCI Express Serial Board
- 8 x RS-232 Serial Ports
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
- Brand: MOXA
- Product Code: CP-168EL-A w/o Cable
Description

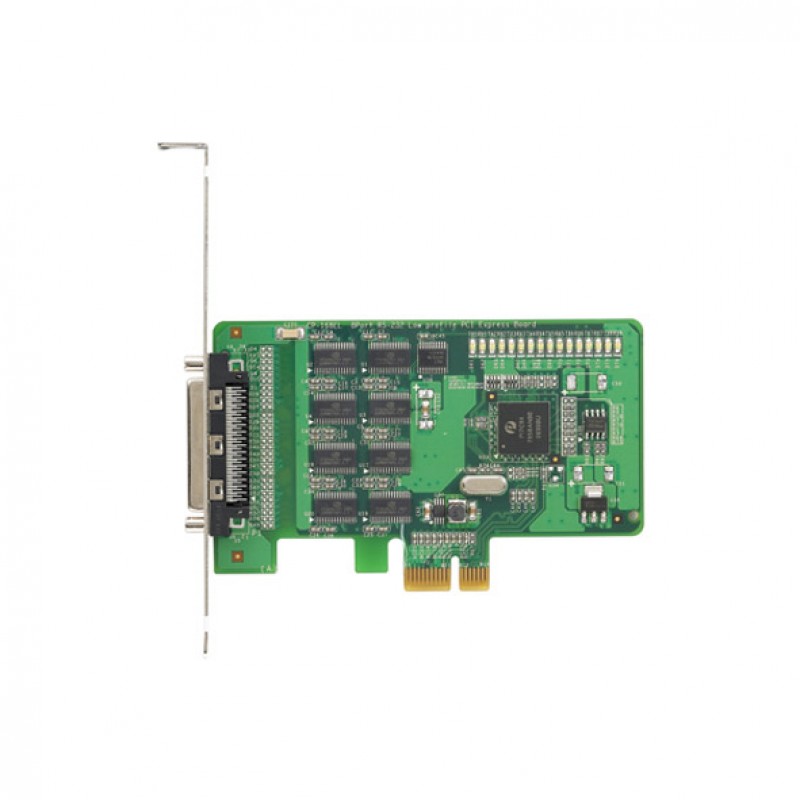

The CP-168EL-A is a smart, 8-port PCI Express board designed
for POS and ATM applications. It is a top choice of industrial automation
engineers and system integrators and supports many different operating
systems, including Windows, Linux, and even UNIX. In addition, each of the
board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The
CP-168EL-A provides full modem control signals to ensure compatibility with a
wide range of serial peripherals, and its PCI Express x1 classification allows
it to be installed in any PCI Express slot.
The CP-168EL-A is a low-profile board that is compatible
with any PCI Express slot. The board requires only a 3.3 VDC power supply,
which means that the board fits any host computer, ranging from shoebox to
standard-sized PCs.
Moxa continues to support a wide variety of operating systems, and the CP-168EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
You can Buy the MOXA CP-168EL-A w/o Cable PCI Express Serial Board and all MOXA Multiport Serial Cards via inquiring online at competitive prices in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 8 |
| Bus interface | PCI Express 1.0 |
| Serial Standards | RS-232 |
| Connector | VHDCI 68 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 1,225 mA @ 3.3 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| GENERAL | |
| MTBF | 2,351,336 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 64.42 x 102 mm (2.54 x 4.02 in) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, RoHS, CRoHS, WEEE |
