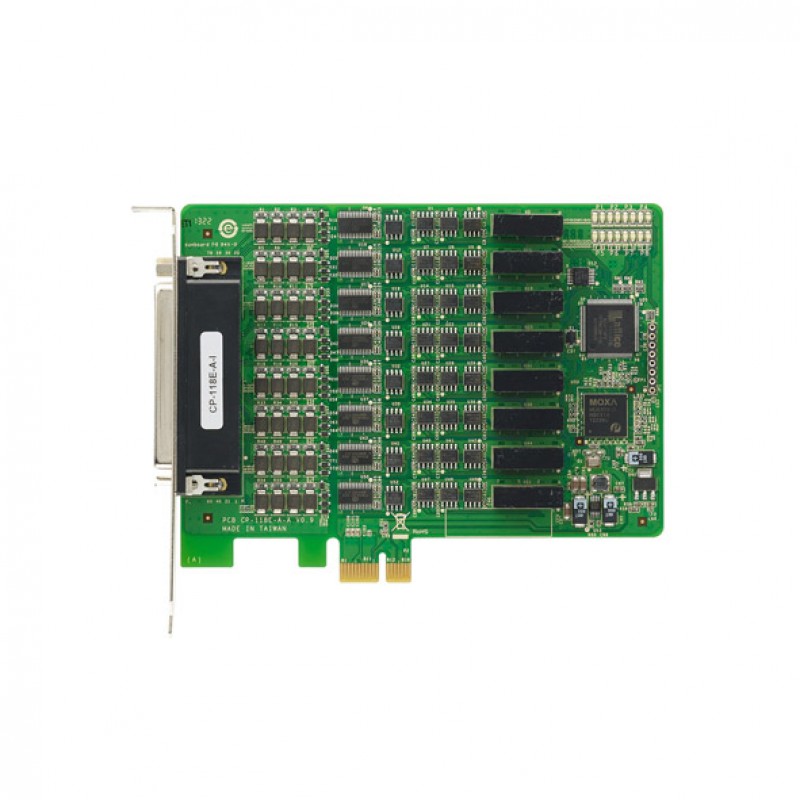

MOXA CP-118E-A-I w/o Cable PCI Express Serial Board

  • 8 x RS-232/422/485 Serial ports (DB78 female connector)
  • 2KV Electrical isolation and 4 KV Surge protection for serial ports
  • Supports maximum 921.6 kbps baud rate
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible Driver with Windows, Linux, and UNIX
  • 0 to 55°C Operating Temperature

Description

The CP-118E-A-I and CP-138E-A-I are smart PCI Express multiport serial boards designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The CP-118E-A-I and CP-138E-A-I are compatible with all popular operating systems, and each of their eight serial ports supports data rates of up to 921.6 kbps and provides full modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, the CP-118E-A-I and CP-138E-A-I work with PCI Express x1, allowing the boards to be installed in any PCI Express slot.

Intelligent RS-485 for Easy Installation and Troubleshooting

Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along with the network. Moxa’s Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pulls high/low resistors. (2) One-click troubleshooting tells you what to change to make a deficient network viable.


You can also find the CP-138E-A-I w/o cable model in the Multiport Serial Cards.


Explore our extensive range of industrial automation products such as MOXA CP-118E-A-I w/o Cable PCI Express Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will get in touch with you to fulfill all your industrial automation needs.

Specification

SERIAL INTERFACE
Comm. Controller 16C550C compatible
Number of Ports 8
Bus interface PCI Express 1.0
Serial Standards RS-232/422/485
Connector DB78 female
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Max. No. of Boards per PC 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, None
Data Bits 5, 6, 7, 8
FIFO 128 bytes
Isolation : 2 KV
SERIAL SIGNALS
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
SERIAL SOFTWARE FEATURES
Windows Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 5.x, Linux kernel 4.x, Linux kernel 3.x, Linux kernel 2.6.x, Linux kernel 2.4.x
UNIX Drivers Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
POWER REQUIREMENTS
Input Current 2,356 mA @ 3.3 VDC
Input Voltage -
GENERAL
MTBF 221,331 hrs
LED Indicators Built-in Tx, Rx LEDs for each port
PHYSICAL CHARACTERISTICS
Dimensions 107 x 136.9 mm (4.21 x 5.39 in)
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 85°C (-4 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
