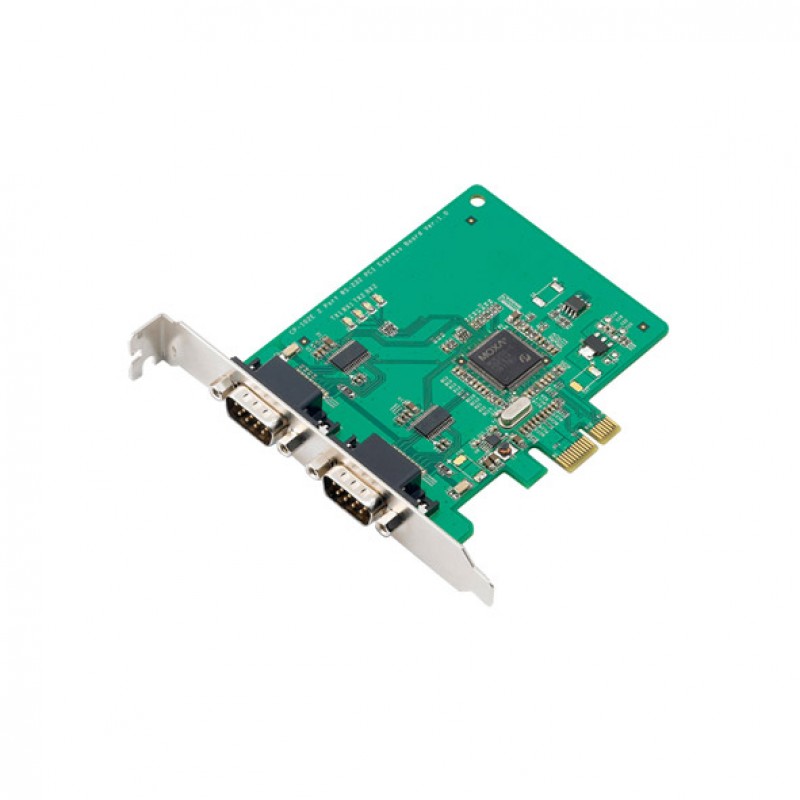

MOXA CP-102E PCI Express Serial Board

2 x RS-232 Serial Ports (DB25 female connector)
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Compatible Drivers with Windows, Linux, and UNIX
0 to 55°C operating temperature

Brand: MOXA
Product Code: CP-102E

Datasheet

Description

The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baud rate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.

Smaller Form Factor

The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

You can also find the CP-102EL-DB9M model in the Multiport Serial Cards.

You can Buy the MOXA CP-102E PCI Express Serial Board via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

SERIAL INTERFACE
Comm. Controller	MU860 (16C550C compatible)
Number of Ports	2 Ports
Bus interface	PCI Express 1.0
Serial Standards	RS-232
Connector	2 x DB9 male
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Max. No. of Boards per PC	8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, None
Data Bits	-
FIFO	128 bytes
Isolation
SERIAL SIGNALS
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	-
RS-485-4w	-
RS-485-2w	-
SERIAL SOFTWARE FEATURES
Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers	QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
POWER REQUIREMENTS
Input Current	520 mA @ 3.3 VDC
Input Voltage	-
GENERAL
MTBF	4,947,552 hrs
LED Indicators	Built-in Tx, Rx LEDs for each port
PHYSICAL CHARACTERISTICS
Dimensions	85.04 x 1000 mm (3.35 x 3.94 in)
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
