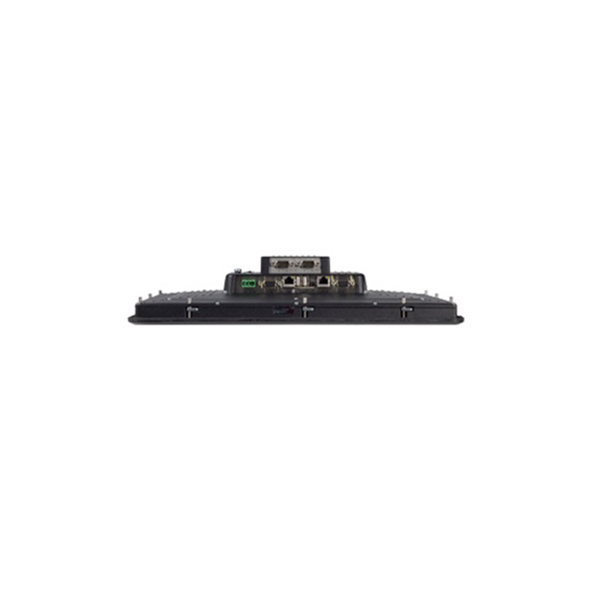

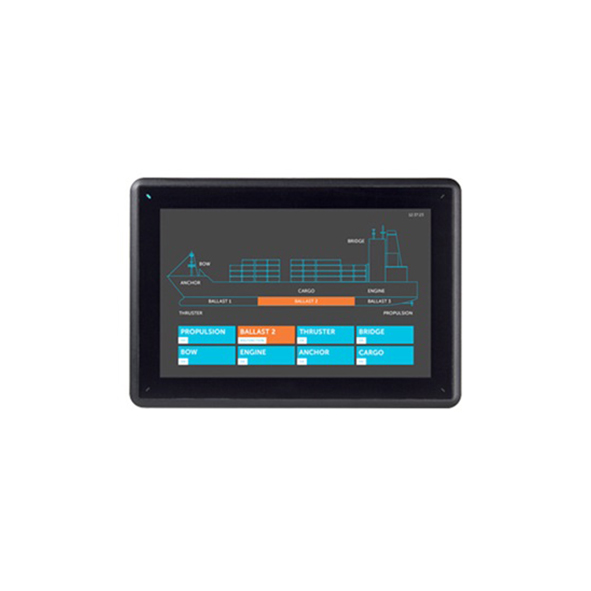

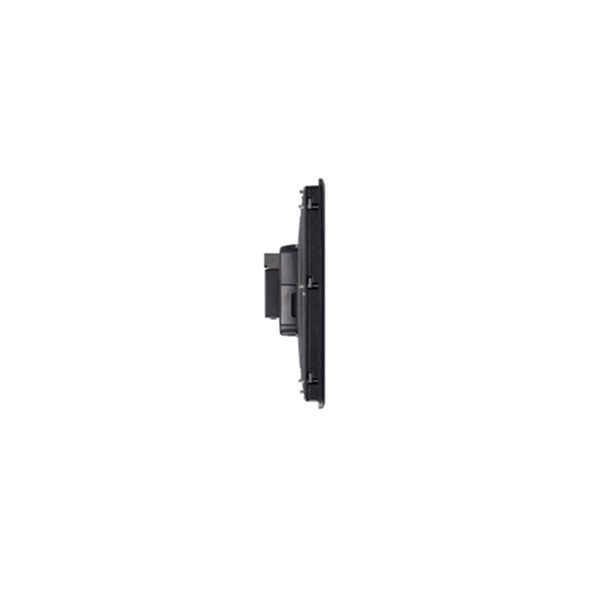

Beijer iX T15BM-HB graphic touch marine HMI

  • 15.4" TFT-LCD touch screen
  • 1280 × 800 (16:10)

  • Brand: BEIJER
  • Product Code: iX T15BM-HB

Description


Specification

Communication serial
Number of serial ports 2 Port 9pin DSUB
Ethernet communication
Number of ethernet ports 2
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 1x10/100/1000 Base-T (shielded RJ45)
Power Requirements
Input voltage +24 VDC (18 - 32 VDC)
Power consumption (max) 28 W
Input fuse Internal DC fuse, 3.15A slow
Display
Size diagonal 15.0 inch
Resolution 1280 X 800 pixels
Backlight LED backlight
Backlight life time 30,000 hrs
Backlight brightness 1000 cd/m2
Backlight dimming Marine Optimized for bridge
Display type TFT LCD
Physical Characteristics
Mechanical size 410 x 286 x 83 mm
Touch type Resistive type
Weight 4.5 kg
Housing Powder coated aluminum
Operating temperature -15 to 55 °C
Storage temperature -20 to + 70 °C
Shock 10G 11ms half sine
Vibration 0,7G RMS
Sealing front IP65
Sealing back IP20
Humidity <85 % non-condensed
