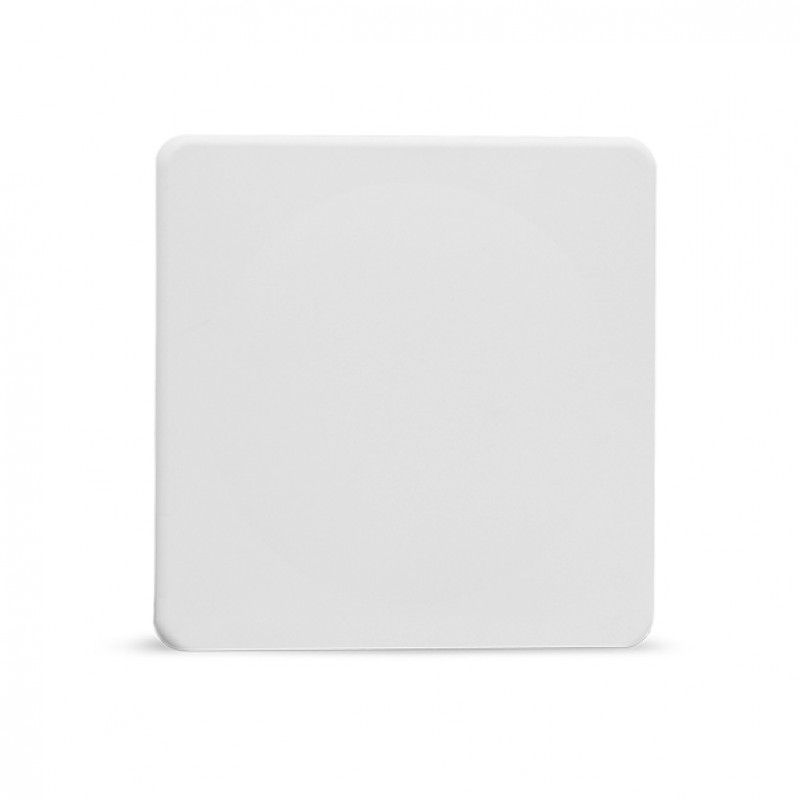

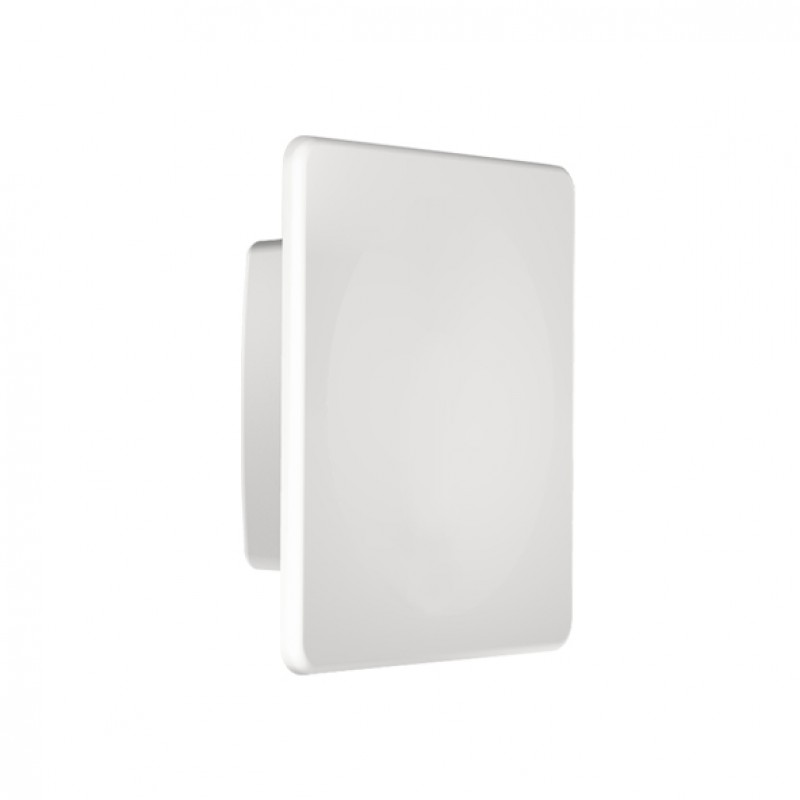

Proxim Tsunami MP-10150S-SUR-WD Point-to-MultiPoint Radio
- Subscriber Unit, AES 256, 867 Mbps, MIMO 2x2, PN: 901-00365
- Capable of throughput up to 672 Mbps
- Wide Band 4.9 + 5 GHz Radio
- Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
- Advanced QoS for quad-play applications
- Including One Wall / Pole mounting kit
- Integrated 2x2 MIMO 22dBi Dual Polarized 1 foot Panel Antenna
- IP67-rated metal enclosures and operate from -40º to + 60º
.png)
Description
The most secure version of the Multipoint 10100 product
family, the 10100S Series adds 256-bit AES Encryption to meet the needs of
military and other applications that require the best possible security. The
model range includes several base stations and subscriber units capable of achieving a throughput of up to 672 Mbps.
Powered by WORP®
Proxim WORP enables the most efficient wireless broadband
access possible in a packet-based network. Advanced QoS controls, committed interface
rates, latency controls, IGMP snooping, and native multicast support allow
granular service-level management and the best video performance available in
this product class.
Advanced Interference Management
Proxim ClearConnect combines multiple dynamic technologies to deliver the best interference management solution available.
Highly Secure
AES 256-bit encryption with Radius-based authentication and
secure management through SSL/TLS 1.2, SSH, and SNMPv3. The 10100S Series also
uses a proprietary data encapsulation scheme that not only improves video and
voice performance but adds another layer of security. Rugged Reliability IP67
rated metal enclosure to ensure years of reliable service in harsh
environments, including high winds, high salt, and temperature extremes.

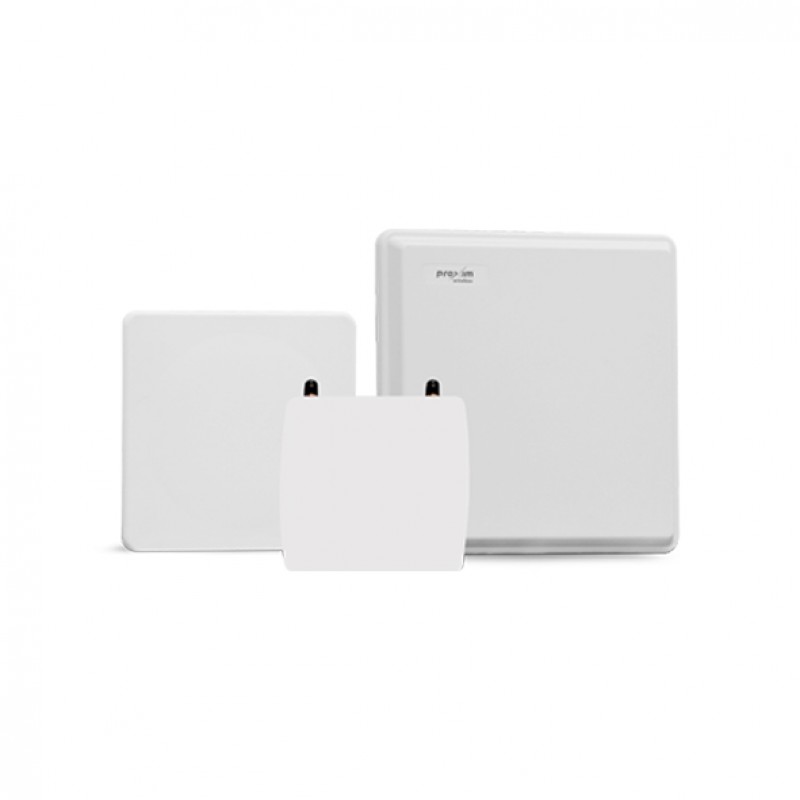

You can also find the Tsunami MP-10100S-BSU-WD, Tsunami MP-10100S-SUA-WD, and Tsunami MP-10150S-BS9-WD models in the Tsunami 10100S Series.
Easy World Automation offers the easiest way to buy the Proxim Tsunami MP-10150S-SUR-WD Point-to-MultiPoint Radio in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interfaces | |
|---|---|
| Ethernet | - |
| Wired Ethernet | Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data) |
| Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
| Extension | - |
| Management | - |
| Radio Specifications | |
| Radio Type | Point-to-MultiPoint |
| MIMO | 2x2:2 |
| Modulation | OFDM with BPSK, QPSK, QAM16, QAM64, QAM256 |
| Frequency | 4.900 – 5.925 GHz (Subject to Country Regulations) |
| Channel Size | 80 MHz, 40 MHz and 20 MHz |
| Data Rate | MCS 0 to 9 with Dynamic Data Rate Selection |
| TX Power | Up to 28 dBm (dual chain) |
| TX Power Control | 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
| Throughput | 20 MHz: Up to 137 Mbps; 40 MHz: Up to 324 Mbps; 80 MHz: Up to 674 Mbps |
| Other | Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature Automatic Transmit Power Control (ATPC) with EIRP limit support |
| Antenna | |
| Antenna Type | Integrated 2x2 MIMO 22dBi Dual Polarized 1 foot Panel Antenna |
| Beam Width | - |
| Receive Gain | - |
| Transmit Gain | - |
| Network | |
| Modes | Bridging, Routing (RIP v2 and IP tunneling) |
| IP Stack | IPv4 and IPv6 simultaneously |
| Latency | Supported |
| VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
| Gateway Features | DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS |
| Management | |
| Remote | Telnet and SSH, Web GUI and SSL/TLS, TFTP, SNMPv3 |
| SNMP | SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB |
| Bluetooth Low Energy | - |
| Multi-Language Support | Web Interface available in English, French, Spanish and Chinese |
| Other | Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer |
| Security | |
| Encryption | AES 256 |
| Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
| 802.1X Support | - |
| Wireless | |
| AP-AP Communications | - |
| RF Environment | - |
| Other | - |
| General | |
| MTBF | > 250,000 hours, 2-year warranty, ServPak Extended Support available. |
| Power Requirement | |
| Input Power | 36 to 56 VDC via Ethernet port 1 (Power over Ethernet), 12 VDC via Access port Power should not be provided simultaneously on both ports |
| Output Power | 48 to 56 VDC – 25 Watt on Ethernet port 2 (PoE – software controlled), 12 VDC on Access port |
| Power Consumption | 14 Watt typical, 17.5 Watt maximum |
| Power Standards | - |
| Physical Characteristics | |
| Temperature | OPERATING: -40º to 60ºC (-40º to 140º Fahrenheit); STORAGE: -50º to 70ºC (-58º to 158º Fahrenheit) |
| Humidity | 100% relative humidity |
| IP Rating | IP67 |
| Dimensions Packaged | 14.56 x 13.0 x 7.87 in (370 x 331 x 200 mm) |
| Dimensions Unpackaged | 12 x 12 x 3.40 in (305 x 305 x 85 mm) |
| Weight (PACKAGED) | 10.91 lbs (4.95 kg) |
| Weight (UNPACKAGED) | 5.30 lbs (2.4 kg) |
| Standards and Certifications | USA: FCC 90Y + 15E (UNII 15.247); CANADA: IC RSS 102 + RSS 111 + RSS 247; EUROPE: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502; RAILWAY: EN 50155 + EN 50121 + EN 61373 |
| Safety | IEC 62368-1:2016 & 60950-22:2016; UL 62368-1 2nd edition & 60950-22 2nd edition; CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17; EN 62368-1:2014 + A11:2017 & 60950-22:2017 |
| Wind Loading | 200 km/h (125 Mph) |
| Standards and Protocols | |
| Synchronization | Pass-trough SyncE and Precision Time Protocol (IEEE 1588v2) Ethernet Synchronization |
| Package Checklist | |
| Package Contents | One Tsunami® MP-10100S-BSU/SUA with two N-type surge protected connectors Or One Tsunami® MP-10150S-BS9/SUR with integrated dual polarized antenna, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide |
