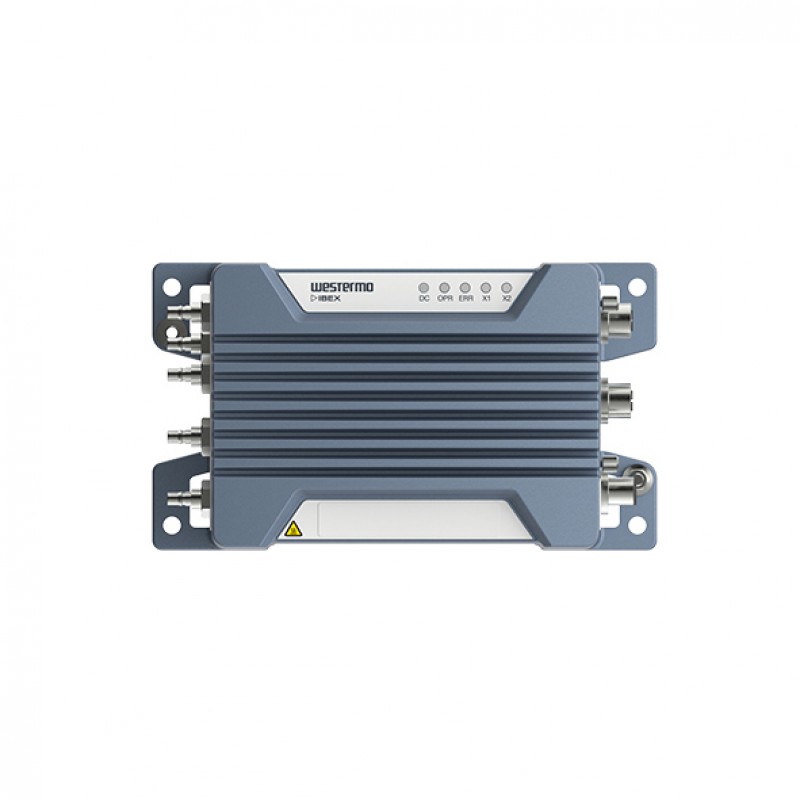

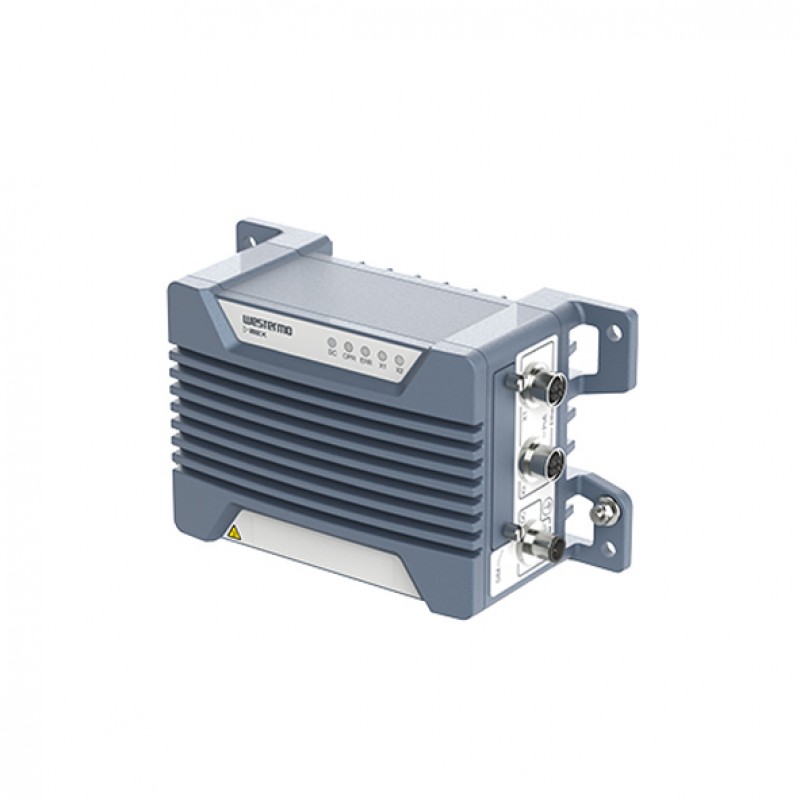

Westermo Ibex-RT-330-5G-LV Industrial 5G Router and Mobile Communication Gateway
- 3GPP Release 16 - 5G NSA/SA
- 5G sub 6 GHz 4 x 4 MIMO interface
- 2 x 10/100/1000 Base-T Ethernet ports (M12 connector)
- 2 x Mini SIM (2FF) card slots
- IP66-rated Metal body design
- 24 VDC isolated or PoE IEEE 802.3at Class 4
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-RT-330-5G is a
mobile 5G router for onboard usage in trains, trams, locomotives, mining
vehicles, and bus applications. The Ibex-RT-330-5G offers outstanding performance
and rugged internet connectivity backup to enable hybrid train-to-ground installations
with a single device.
The Mobile Communication
Gateway (MCG) router is designed to withstand the tough onboard environmental
conditions and can be remotely managed using a web browser or SNMP management
tools. The MCG provides advanced firewall functionalities and high-performance
VPN connectivity.
The router exceeds the
high requirements for the most bandwidth-demanding applications worldwide and
features a wide range of bands. A compact design enables quick and easy
installation into the tight spaces of trains, while configuration and unit
replacement are simplified by a SIM card memory for configuration parameters.
Dual SIM allows for further performance optimizations and carrier redundancy.
IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the
devices can be installed virtually anywhere, without the need for additional
protection.
Meeting the requirements
of the rail market, Ibex-RT-330-5G is very well-suited for any deployment in
challenging environments. Adopting the 3GPP Rel-16 technology, it supports both
5G NSA and SA modes.
You can also find the Ibex-RT-330-LV and Ibex-RT-330-HV models in the Wireless Routers.
Easy World Automation offers the easiest way to buy the Westermo Ibex-RT-330-5G-LV Industrial 5G Router and Mobile Communication Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots |

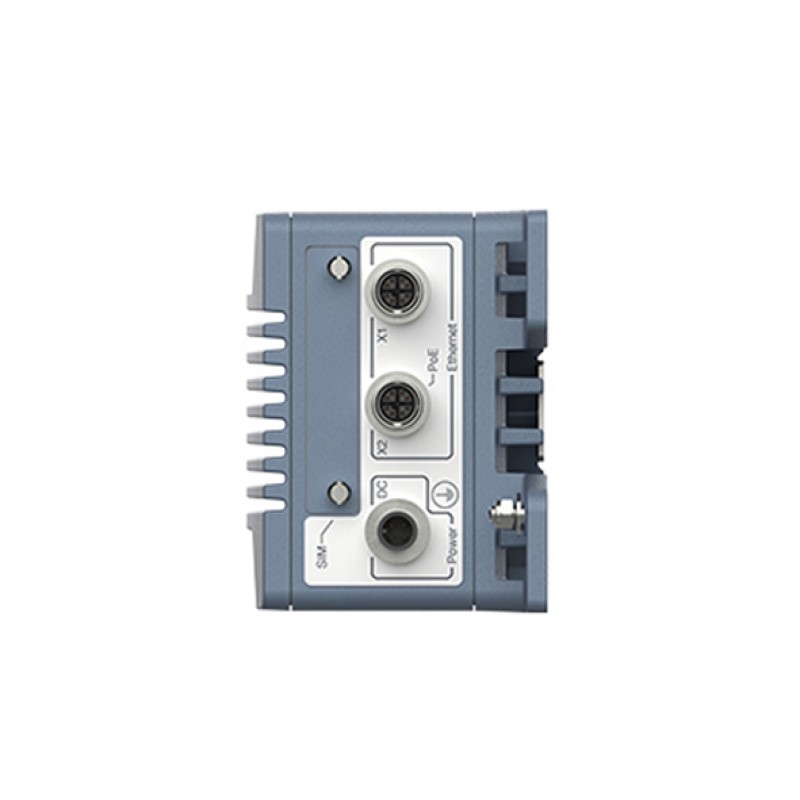

| Ethernet Ports | : 2 x 10/100/1000 Base-T with M12 X-coded with M12 connectors |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79; 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79; LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48; LAA: B46 (TDD); UMTS-WCDMA: B1/B2/B4/B5/B8/B19 |
| Cellular Standards | 5G, LTE, LAA, UMTS-WCDMA |

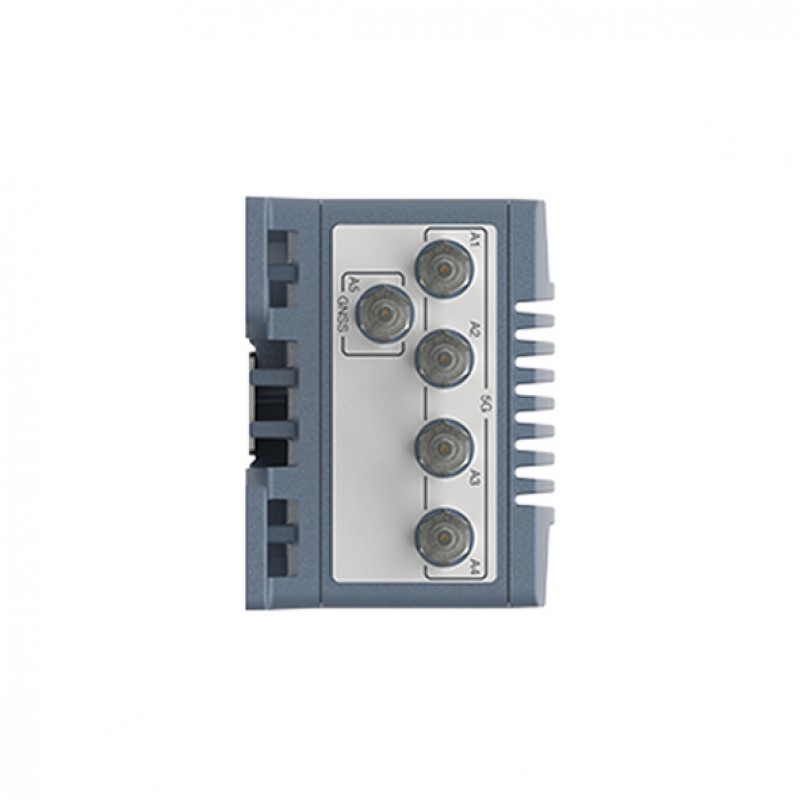

| Cellular Antenna Connectors | 4 x QMA compatible antenna connectors for 5G/LTE/WCDMA |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | 1 x QMA compatible antenna connector for GNSS |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | WCDMA: DL 42 Mbps; UL 5.76 Mbps |
| Maximum data transfer speed of 4G | 5G SA: DL 2.4 Gbps; UL 900 Mbps; 5G NSA: DL 3.3 Gbps; UL 600 Mbps; LTE: DL 1.6 Gbps; UL 200 Mbps |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | OpenVPN, IPsec, Wireguard, GRE/GRETAP, VXLAN |
| Firewall | Firewall L2/L3, NAT, Port Forwarding |
| Time Management | |
| Management | SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP) |
| General | |
| LED Indicators | - |
| MTBF | 319,113 hours (IEC 62380) |
| Operating mode | LTE/5G Router, Mobile Communication Gateway |
| Standards and protocols | |
| Protocols | Fixed fallback IP, IP aliases, MAC address control lists, VLAN support, Static/Policy/Multicast Routing, DHCP Server/Client/Relay, DNS Server/Client, Firewall L2/L3, Port forwarding, NAT, NTP Server/Client, RSTP, OpenVPN, IPsec, Wireguard, GRE/GRETAP, VXLAN |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Encryption: SNMP v2c/v3 |
| Authentication | USM |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 24 VDC isolated, 0.6 A max. or PoE IEEE 802.3at Class 4 |
| POE Support | |
| Input Current | - |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | - |
| Dimensions | 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches) |
| Housing | Full metal |
| Weight | 1.54 kg without antennas |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Humidity | - |
| Storage Temperature | - |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP66; IEC 62380; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock, EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems; Mechanical (Shock and vibration): EN 61373, category 1, class A and B, EN 50125-3, Outside the track; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 301 908-1/2/13/25, IMT cellular networks, 3GPP Release 16 - 5G NSA/SA, 3GPP LTE Advanced standard, FCC-47-15, Radio frequency devices, FCC-47-22, Public mobile services, FCC-47-24, Personal communications services, FCC-47-27, Miscellaneous wireless communications services; Safety: EN 45545-2, Fire protection on railway vehicles |
