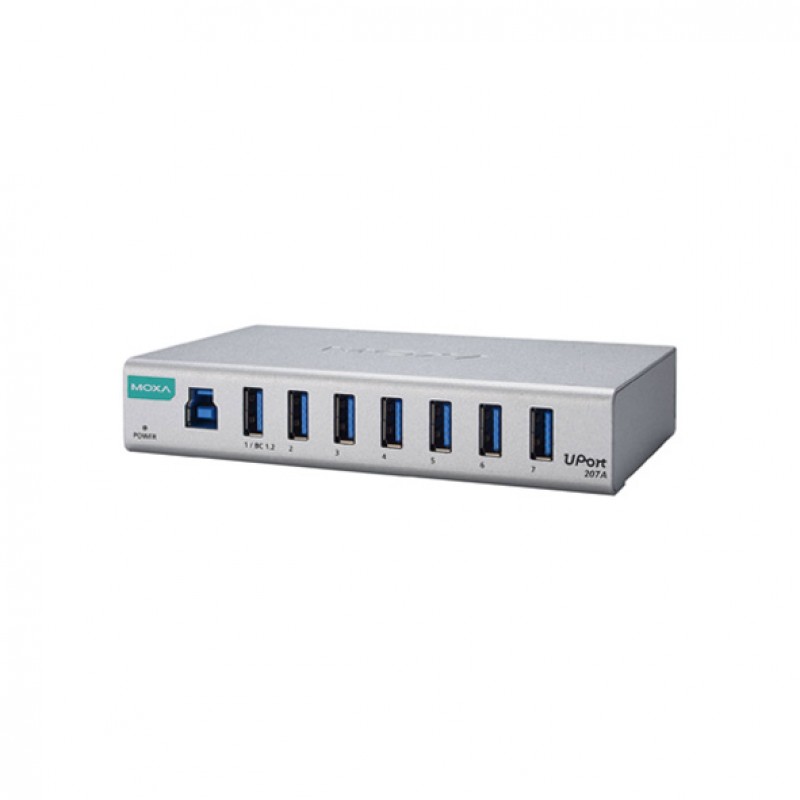

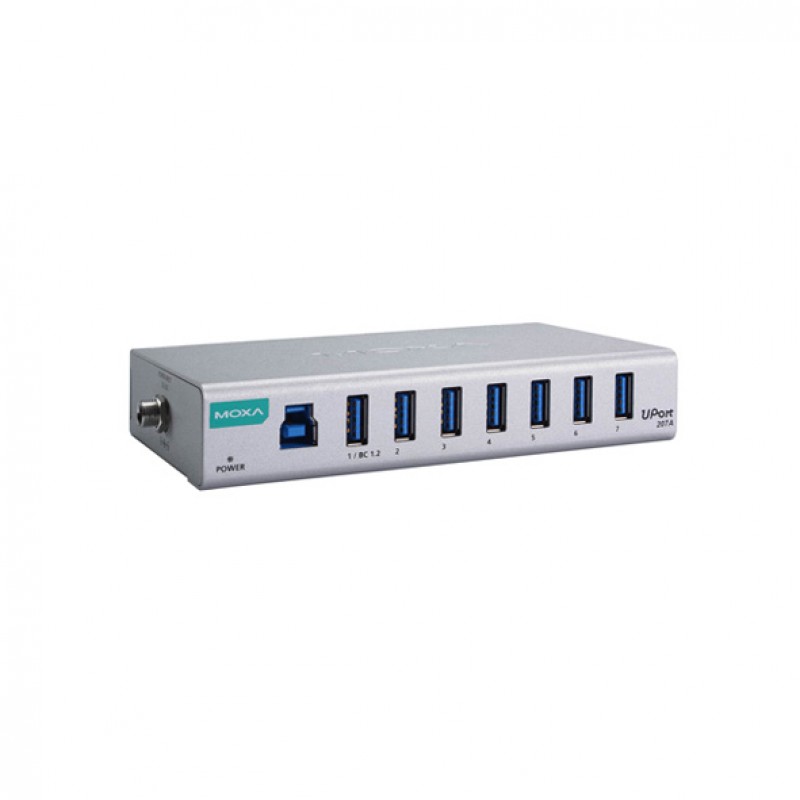

Description
The UPort® 200A Series general-purpose USB 3.2 hubs can
expand a USB port into 4 or 7 USB ports. The hubs are designed to provide true
USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port. The
hubs are fully compliant with the USB plug-and-play spec and provide a full 900
mA power per port, ensuring that your USB devices function properly. Externally
powered USB hubs are the only way to guarantee the broadest compatibility with
USB devices.
You can also find the UPort 204A model in the Industrial USB Converters.
Enjoy the ease of online inquiries for the MOXA UPort 204A 4-Port Industrial USB Hub. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of Ports | 8 (UFP: 1, DFP 7) |
| USB Connector | UFP: type B, DFP: type A |
| USB Standards | USB 1.1/2.0 compliant, USB 3.2 Gen 1 |
| Speed | 5 Gbps |
| General | |
| MTBF | 1,957,123 hours |
| Power Requirements | |
| Output Power | Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible), Rest of ports: 900 mA @ 5 VDC |
| Input Power | 12V DC |
| Power Connector | Power jack |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Housing | Aluminum |
| Weight | 273 g (0.60 lb) |
| Dimensions | 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | DIN-rail mounting (with optional kit), Wall mounting (with optional kit) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 62368-1, KC; Environmental Testing: IEC 60068-2-1; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| LED Indicators | |
| Status indicator | |
| Package Checklist | |
| Power adapter | |
| USB cable | |
| Hardware installation guide | |
