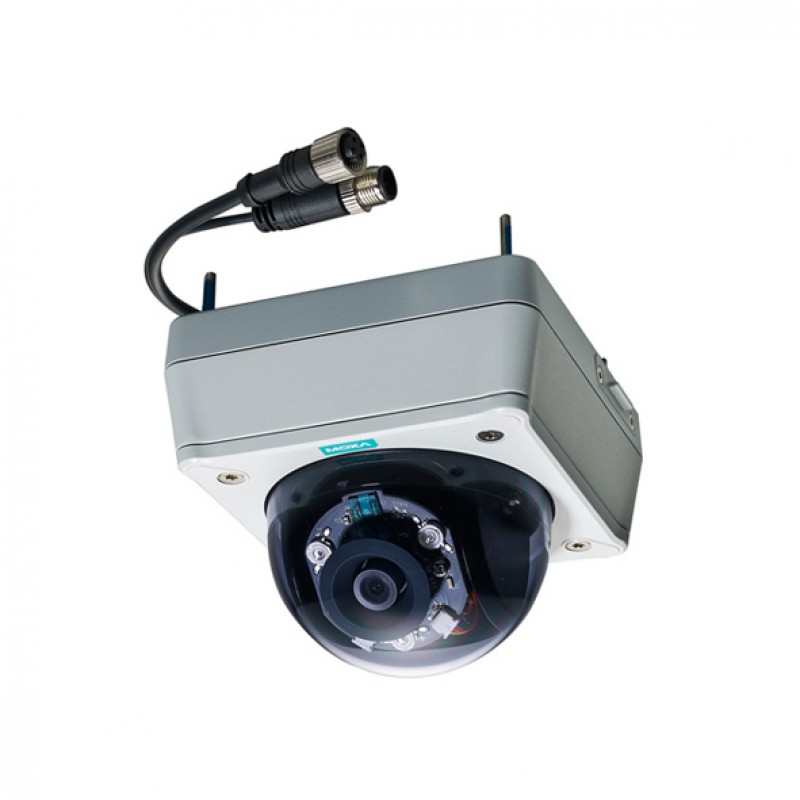

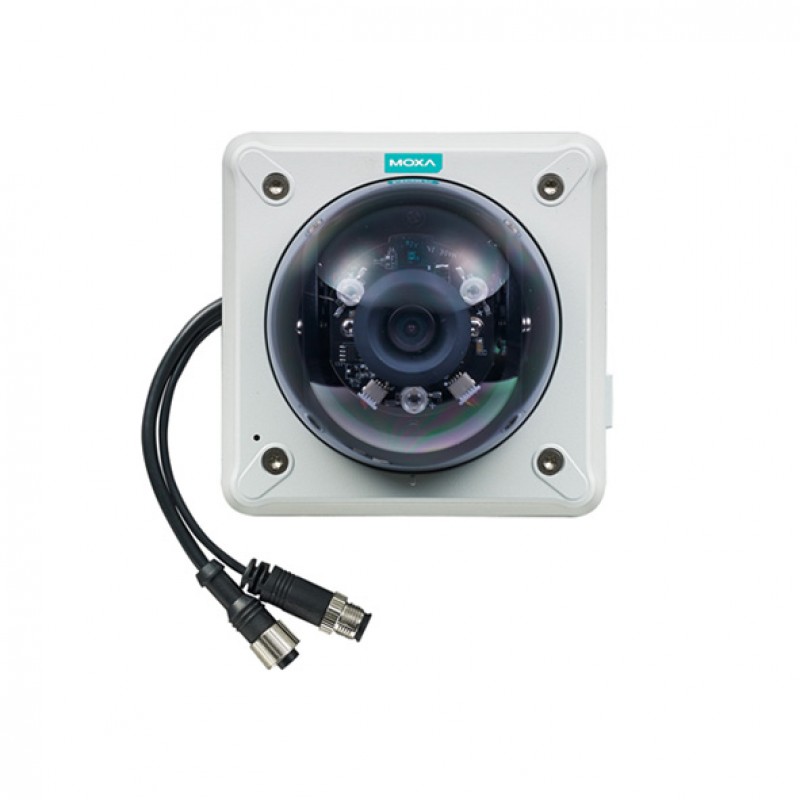

MOXA VPort P16-1MP-M12-IR-CAM36-T Infrared IP Camera

  • Lens: 3.6 mm
  • 1 x PoE Port (10/100BaseT(X), M12 connector)
  • IP66-rated Metal housing with PC dome cover
  • Built-in IR illuminator for day & night image capabilities
  • Input Power Source: PoE (IEEE 802.3af)
  • Panel mount installation design
  • -40 to 85°C operating temperature range

  • Brand: MOXA
  • Product Code: VPort P16-1MP-M12-IR-CAM36-T

Description

The rugged VPort P16-1MP-M12-IR cameras produce HD (720P, 1280 x 720) video images and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155.



You can also find the VPort P16-1MP-M12-IR-CAM36 and VPort P16-1MP-M12-IR-CAM80-T models in the IP Cameras.



Explore our extensive range of industrial automation products such as MOXA VPort P16-1MP-M12-IR-CAM36-T Onboard IP Camera in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Camera
Sensor 1/2.7-in HD progressive scan CMOS
Lens f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
Camera Angle Pan 350°, Tilt 65° (controlled manually)
ICR Control (for day & night) Auto (light sensor control) or DI control
IR Illumination IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
Synchronization Internal
White Balance ATW/AWB
DNR Built-in 2D/3D DNR
WDR 110 dB
Flickerless Control Automatic, 50 Hz, 60 Hz modes
Image Rotation Flip, Mirror, and 180° rotation
Image Setting Manual tuning with saturation, sharpness, and contrast
Black Level Control High/Medium/Low
AGC (auto gain control) 2X, 4X, 8X, 16X, 32X, 64X
Minimum Illumination Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Electronic Shutter Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio Maximum 50 dB (AGC off; DNR on)
Interface
10/100BaseT(X) Ports
PoE Ports : 1 x 10/100BaseT(X), M12 D-coded 4-pin female connector
Digital Input/Output Channels : 1 x Digital Input Channel (M12 connector with 20 cm cable)
Relay Channels
Audio
Audio Inputs 1 x built-in microphone
Audio Format Mono, PCM (G.711)
Audio Outputs
Video
Video Compression H.264 (ISO/IEC 14496-10) or MJPEG
Video Output via Ethernet
Video Streams 3 independent H.264 or MJPEG video streams
Video Viewing DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality Timestamp and text overlay, OSD (On Screen Display) position adjustable, Maximum of 5 simultaneous unicast connections, 50 multicast clients
Network
Protocols TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Power Requirements
Input Voltage -
Input Current 0.19 A @ 48 VDC
Source of Input Power PoE (IEEE 802.3af)
Alarms
Intelligent Video Camera tampering detection
Video Motion Detection 3 independently configurable areas
Scheduling Daily repeat timing schedule
Imaging JPEG snapshots for pre/trigger/post alarm images
Custom Alarms HTTP event servers for setting customized alarm actions
Email/FTP Messaging Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer 12 MB video buffer for JPEG snapshot images
Security
Password User-level password protection
Filtering IP address
Encryption HTTPS
Authentication
General
MTBF 1,052,184 hrs
microSD Slot
Physical Characteristics
Housing IP66 rain and dust protection, Metal housing, PC dome cover, IK10 vandal-resistant protection
Dimensions 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
Weight 870 g (1.92 lb)
Installation Panel mounting
Operating Temperature -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85°C (-40 to 185°F)
Standards and Certifications EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Railway Fire Protection: EN 45545-2; Safety: UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Railway: EN 50155 (complies with a portion of EN 50155 specifications); Ingress Protection: IEC 60529, IP66; Salt Spray Test: ASTM-B117; Vandal Resistance: EN 62262, IK10; Telcordia SR332;
Altitude 2000 m
Minimum Viewing System Requirements
Memory Size 1 GB
Operating System Windows 7 or above
Browser Internet Explorer 9. x or above
Multimedia DirectX 9.0c or above
Software Development
VPort SDK PLUS Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
Standard ONVIF Profile S
