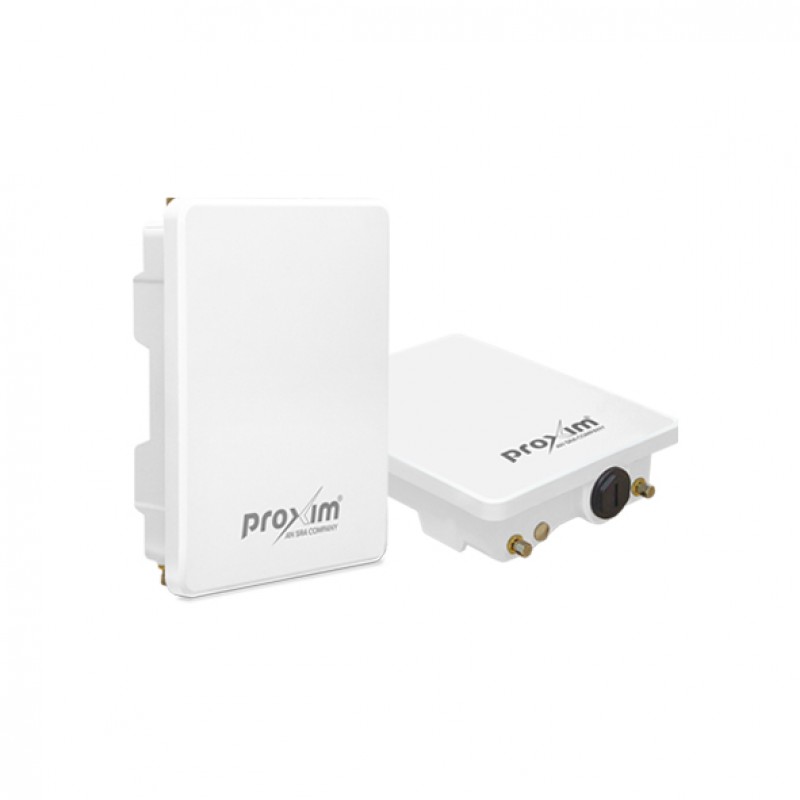

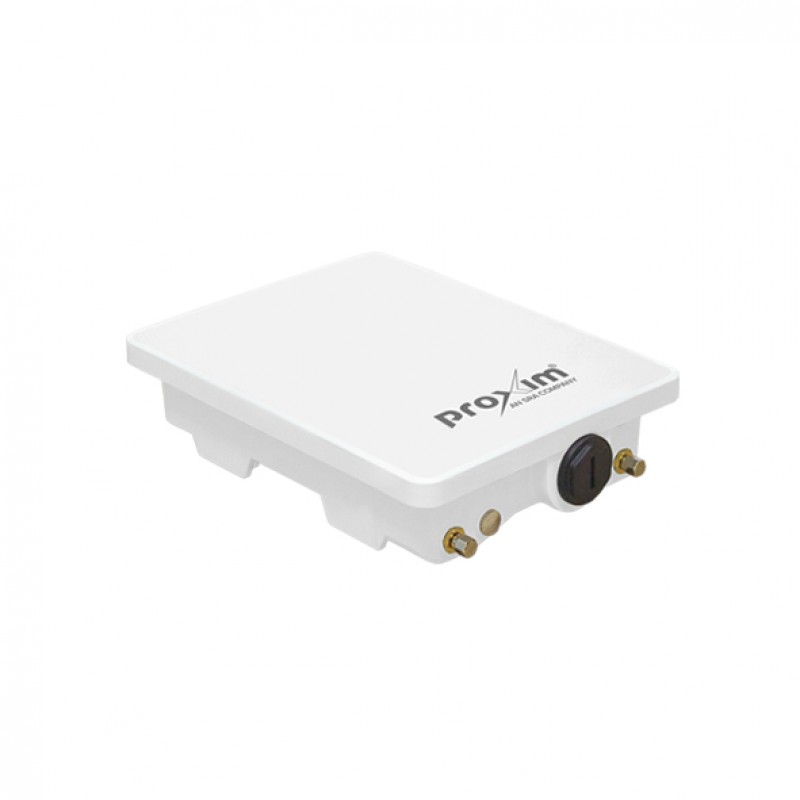

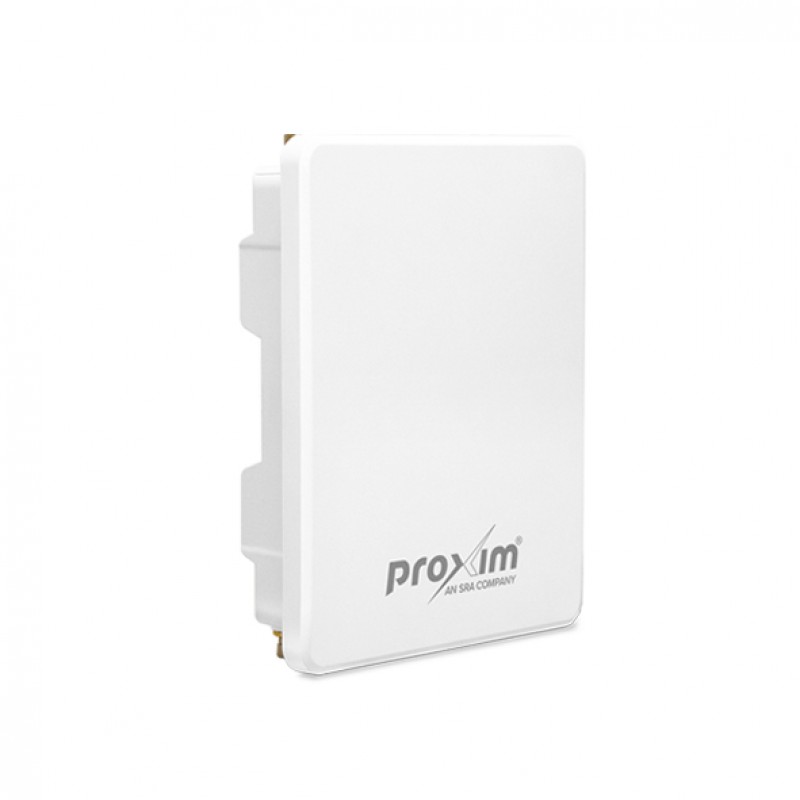

Proxim Edge Multipoint MP-1025-BS3-32SU-UPG Point-to-MultiPoint Radio
- Base Station, support for 1 to 32 SU license upgrade, PN: 997-00058
- 4x4 MIMO radio delivering up to 380 Mbps
- Wide Band 5 GHz Radio, AES 128 encryption, and Radius authentication
- One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in
- Advanced QoS for quad-play applications
- Full tilt and swivel mounting kit included
- Integrated 2x2 MIMO 15 dBi Dual Polarized 35 degree Panel Antenna plus Four RP-SMA Connectors
- IP67-rated metal enclosures and operate from -30° to 55°
.png)
Description
Proxim’s Edge 1025 is the most versatile small wireless
broadband solution available. One device, multiple uses; whether you need a
Point to Point endpoint, Multipoint CPE, or MultiPoint Base Station1, the Edge
1025 fits the bill.
Powered by WORP®
Proxim WORP enables the most efficient wireless broadband
access possible in a packet-based network. Advanced QoS controls, committed interface
rates, latency controls, IGMP snooping, and native multicast support allow
granular service-level management and the best video performance available in
this product class.
Advanced Interference Management
Proxim ClearConnect™ combines multiple dynamic technologies
and delivers the best interference management solution available.
Flexible Antenna Options
Includes an integrated 15 dBi 35-degree dual-polarity
antenna and offers external connectors for extended range and MIMO 4x4
configuration options.
Smartphone Configurator
Proxim’s BlueConnect mobile app enables fast and efficient
setup, monitoring, and troubleshooting.
Rugged Reliability
IP67 rated metal enclosure to ensure years of reliable
service in harsh environments, including high winds, high salt, and temperature
extremes.
You can also find the Edge Multipoint MP-1025-BS3-WD and Edge Multipoint MP-1025-CPE-WD models in the Edge Multipoint 1025 Series.
Experience the convenient way to purchase the Proxim Edge Multipoint MP-1025-BS3-32SU-UPG Point-to-MultiPoint Radio in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interfaces | |
|---|---|
| Ethernet | - |
| Wired Ethernet | One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in |
| Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
| Extension | - |
| Management | - |
| Radio Specifications | |
| Radio Type | Point-to-MultiPoint |
| MIMO | 2x2:2, 4x4:2 and 4x4:4 |
| Modulation | OFDM BPSK-QAM256 |
| Frequency | 5.150 – 5.925 GHz (Subject to Country Regulations) |
| Channel Size | 20 and 40 MHz (license upgrade to 80 MHz) |
| Data Rate | - |
| TX Power | Up to 24 dBm (dual chain) or 27 dBm (quad chain) |
| TX Power Control | 0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
| Throughput | Throughput-MIMO 2x2 Mode: 20 MHz: 122 Mbps, 40 MHz: 294 Mbps, REQUIRES LICENSE UPGRADE 80 MHz: 380 Mbps; Throughput-MIMO 4x4 Mode (Requires External Antenna): 20 MHz: 240 Mbps, 40 MHz: 380 Mbps, REQUIRES LICENSE UPGRADE 80 MHz: 380 Mbps |
| Other | Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support |
| Antenna | |
| Antenna Type | Integrated 2x2 MIMO 15 dBi Dual Polarized 35 degree Panel Antenna plus Four RP-SMA Connectors |
| Beam Width | - |
| Receive Gain | - |
| Transmit Gain | - |
| Network | |
| Modes | Bridging, Routing (RIP v2 and IP tunneling) |
| IP Stack | IPv4 and IPv6 simultaneously |
| Latency | Supported |
| VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
| Gateway Features | DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS |
| Management | |
| Remote | Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3 |
| SNMP | SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB |
| Bluetooth Low Energy | - |
| Multi-Language Support | Web Interface available in English, French, Spanish and Chinese |
| Other | Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer |
| Security | |
| Encryption | AES 128 |
| Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
| 802.1X Support | - |
| Wireless | |
| AP-AP Communications | - |
| RF Environment | - |
| Other | - |
| General | |
| MTBF | >250 000 hours, 2-year warranty, ServPak Extended Support available. |
| Power Requirement | |
| Input Power | - |
| Output Power | - |
| Power Consumption | 10 W typical, 12 W max in MIMO 2x2 mode, 22 W typical, 25 W max in MIMO 4x4 mode |
| Power Standards | 802.3af/at compliant (MIMO 4x4 mode requires 802.3at) |
| Physical Characteristics | |
| Temperature | OPERATING: -30° to 55° Celsius (-22° to 131° Fahrenheit), Temporary increases up to 60ºC (140º Fahrenheit) will not impact operation of the unit; STORAGE: -50º to 70º Celsius (-58º to 158º Fahrenheit) |
| Humidity | 100% relative humidity |
| IP Rating | IP67 |
| Dimensions Packaged | 310 x 226 x 98 mm (12.2 x 8.9 x 3.85 in) |
| Dimensions Unpackaged | 170 x 217 x 56 mm (6.7 x 8.55 x 2.2 in) |
| Weight (PACKAGED) | 2.85 kg (6.28 lbs) |
| Weight (UNPACKAGED) | 1.24 kg (2.73 lbs) |
| Standards and Certifications | CANADA: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7; EUROPE: RED EN 301 489-1 + EN 301 489-17 + EN 301 489-19 + EN 300 328 + EN 301 893 + EN 302 502 + EN 303 413 |
| Safety | IEC 62368-1:2014 & 60950-22:2016, CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17, EN 62368-1:2014 + A11:2017 & 60950-22:2017 |
| Wind Loading | 180 km/h (112.5 mph) |
| Standards and Protocols | |
| Synchronization | - |
| Package Checklist | |
| Package Contents | One Edge MP-1025-BS3 with integrated antenna plus four RP-SMA connectors, five SMA weather-proofing caps, one M25 weather-proofing cable gland, one power injector and country-specific power cord, one full-axis mounting kit, One Grounding kit, one Quick Installation Guide |
